Model 260 Compact Thru-Bore Encoder

The Model 260’s larger bore (up to 0.625") and low profile make it the perfect solution for many machine and motor applications. Available in two distinct formats – a blind hollow bore and a complete thru-bore – the Model 260 uses EPC’s pioneering Opto-ASIC design.

Features:
  • Low profile 1.19"
  • Up to 12 pole commutation
  • Thru-bore and blind hollow bore styles
  • Simple, innovative flexible mounting system
  • Incorporates Opto-ASIC technology
  • CE marking available

Product Page

Model 260

Case Study

Quick Response Keeps Production On-Target for Semicon Equipment OEM

model-260-sf-fa-mounts_760x506

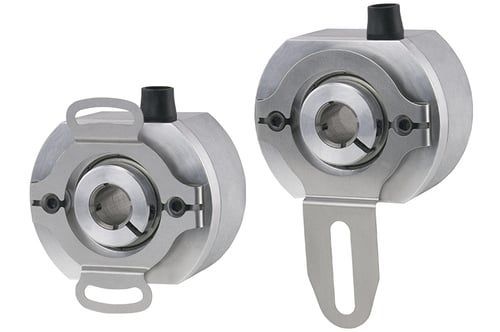

The slim profile Model 260 shown with SF (left) and FA (right) flex mounts

semicon-prealigner-model-260_550x366

Case study: EPC engineers worked with a customer to customize the Model 260 as a replacement for a discontinued encoder.

Model TR1 Tru-Trac™

The Model TR1 Tru-Trac™ linear measurement solution is a versatile option for tracking velocity, position, or distance over a wide variety of surfaces. An integrated encoder, measuring wheel, and spring-loaded torsion arm in one compact unit. The spring-loaded torsion arm offers adjustable torsion load, allowing the Model TR1 to be mounted in almost any orientation – even upside-down.

Features:
  • Encoder, measuring wheel & spring loaded torsion arm integrated into one compact unit
  • Spring-loaded torsion arm makes wheel pressure adjustments a snap
  • Easily installed in a vertical, horizontal or upside down orientation
  • Operates over a variety of surfaces at speeds up to 3000 feet per minute
  • Integrated module simplifies your system design, reducing cost

Product Page

Model TR1

Learn More

Video: Encoders with Measuring Wheels

model-tr1_550x367

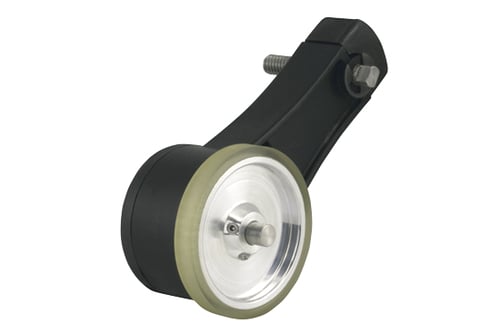

Model TR1 Tru-Trac

Model TR1 Demonstration

Models 15S & 15T/H

The Model 15S (shafted version) and Model 15T (thru-bore) or Model 15H (blind hollow bore) offers a high-performance feedback solution in a low-profile package.

Features:
  • High-performance, economical encoder
  • Low profile – 1.0" (25.4 mm) height and 1.5" (38 mm) diameter thru-bore or blind hollow bore with bores up to 0.375" (10 mm)
  • Simple, innovative flex mounting system (Global Mounting Standards)
  • Up to 12-pole commutation optional for brushless motor control

Product Pages

Model 15S shaft encoder

Model 15T/H thru-bore encoder

encoder-products_15s-15t_550x366

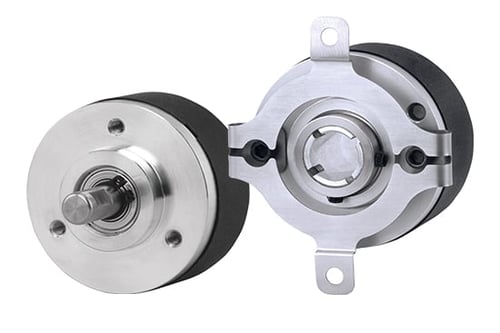

The compact Model 15S shaft (left) and 15T (right) encoders

See how the Model 15 works on the mirrors for motors at the Keck Observatory in Hawaii
