Model 58TP Accu-CoderPro™

  • Programmable resolution, waveform, & output type
  • Size 58 (58 mm) thru-bore encoder
  • IP67 Sealing available

Model 58TP Features

  • Programmable resolution from 1 to 65,536 CPR
  • Programmable output type and waveform
  • Programmable with USB module or factory configured when ordered
  • 58 mm package available in thru-bore or blind hollow bore
  • Standard and metric thru-bore sizes up to 5/8" and 15 mm

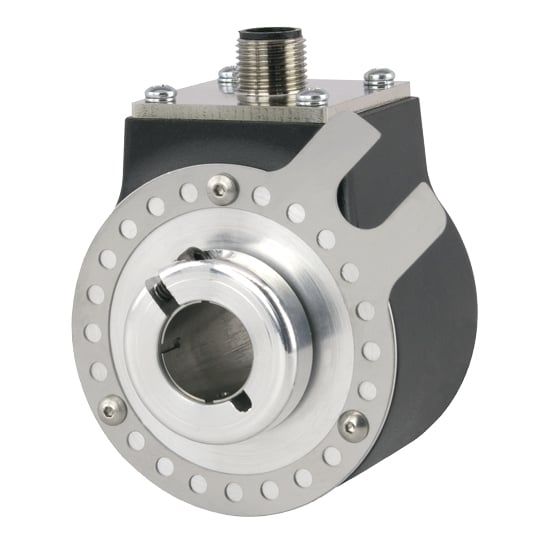

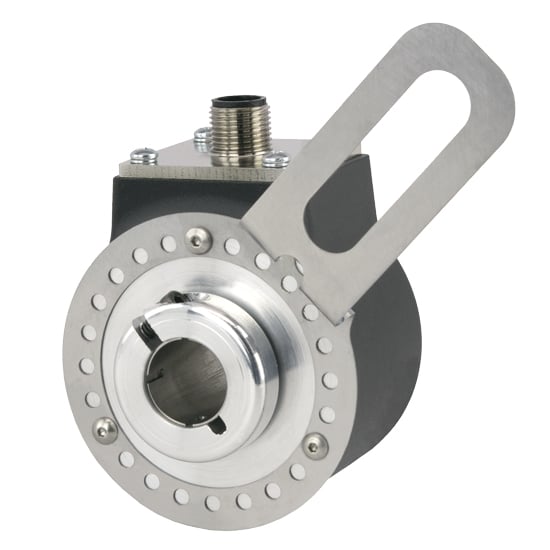

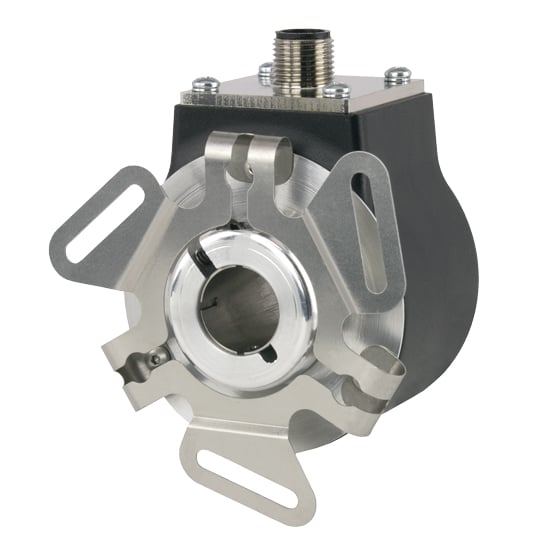

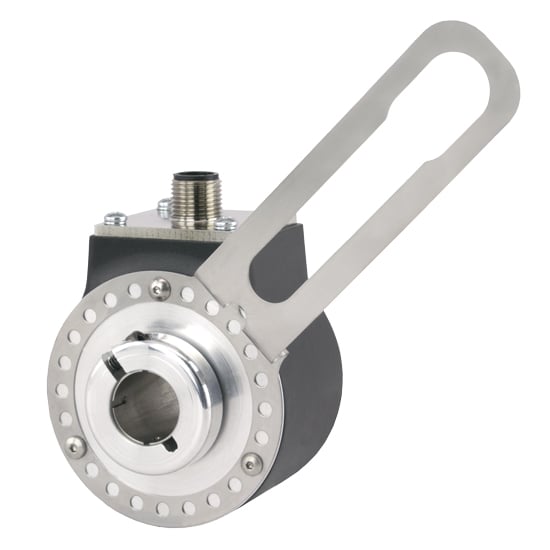

  • Several flexible mounting options
  • IP67 sealing available

download_blueDownload Model 58TP datasheet

Configure Model

Configure a 3D model of this encoder with the exact specifications for your application. Then download the files in almost any native format, and design it in to your application.

Configure 3D Model

Model 58TP

Configure Model

×

Purchase Options

Model 58TP Description

The Model 58TP programmable 58 mm Accu-CoderPro™ thru-bore encoder is specifically designed for the challenges of an industrial environment. Its advanced set of electronics allow the encoder to be programmed to meet your exact application needs. Using EPC’s optional USB programming module, users may select from 6 output types, choose from 32 different waveforms, and select any resolution from 1 to 65,536 CPR (that’s 262,144 counts in full quadrature). This allows a single encoder to be configured for multiple applications, allowing one encoder to replace many different part numbers, providing significant cost savings on inventory and downtime replacement costs. These encoders can also be configured and shipped with exact specs, so no programming is needed.

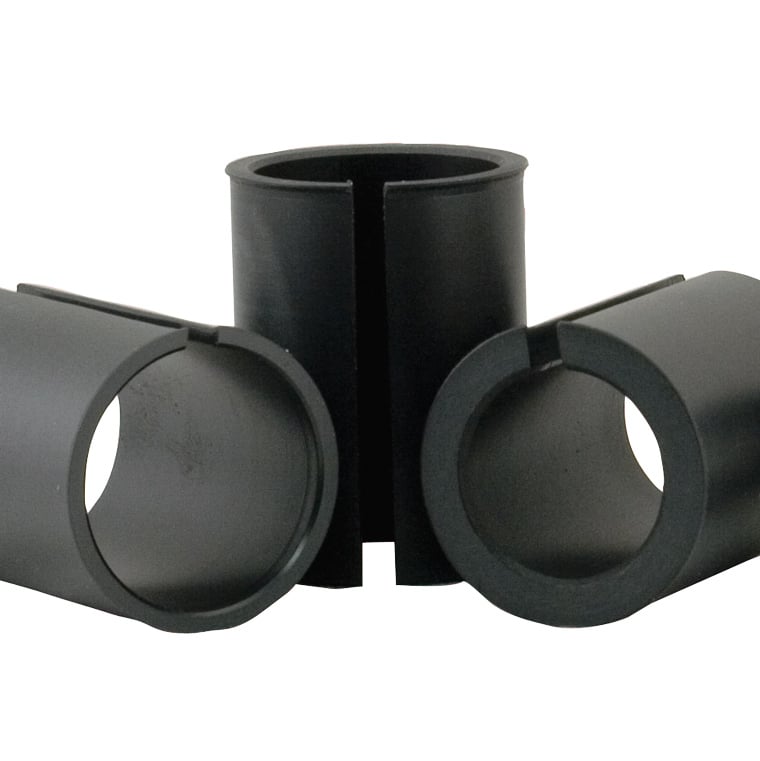

Model 58TP Accessories
