Model 711 Accu-Coder

  • Original Cube encoder
  • Uni-directional output
  • Many housing options available

Model 711 Features

  • The original industry-standard cube encoder
  • Five versatile housing styles
  • Unidirectional output
  • Resolutions available to 10,000 CPR

download_blueDownload Model 711 datasheet

Configure Model

Configure a 3D model of this encoder with the exact specifications for your application. Then download the files in almost any native format, and design it in to your application.

Configure 3D Model

Model 711

Configure Model


Purchase Options

Model 711 Description

The Model 711 Accu-Coder® is the original, industry-standard cube encoder. Designed for compatibility with most programmable controllers, electronic counters, motion controllers, and motor drives, it is ideally suited for applications that require a simple, symmetrical, uni-directional square wave output in a single channel format. Critical performance specifications for the most popular resolutions and advanced Opto-ASIC circuitry — a single chip design that eliminates many board level components — increases the reliability of an already dependable and durable encoder. With new options continually being added, the Model 711 excels in a wide variety of industrial applications.

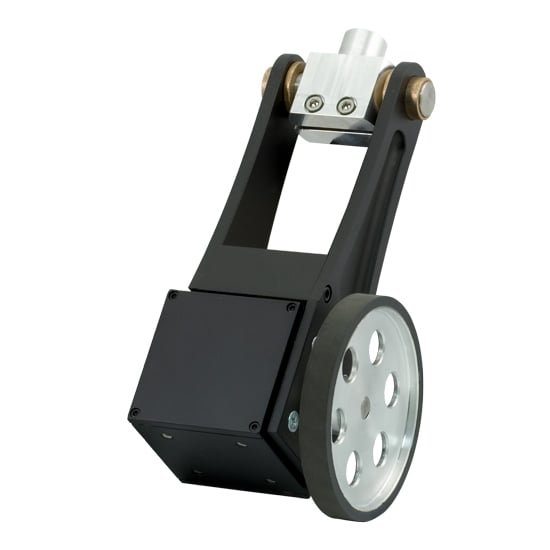

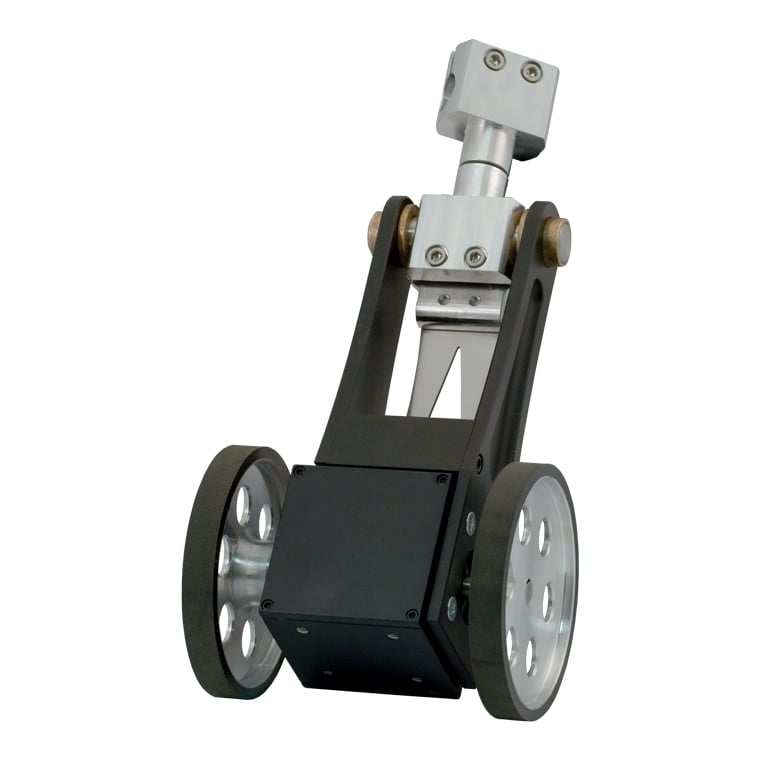

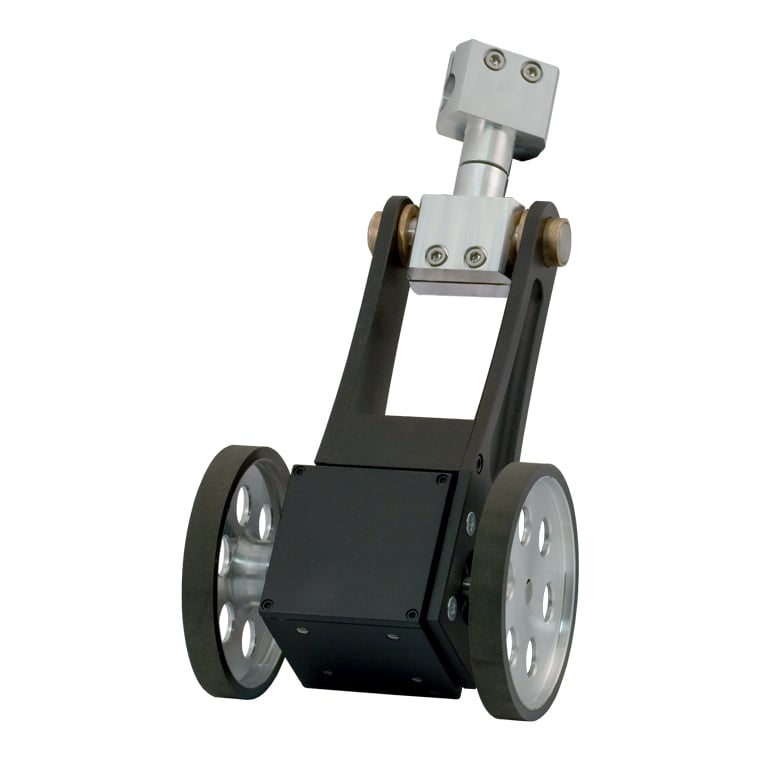

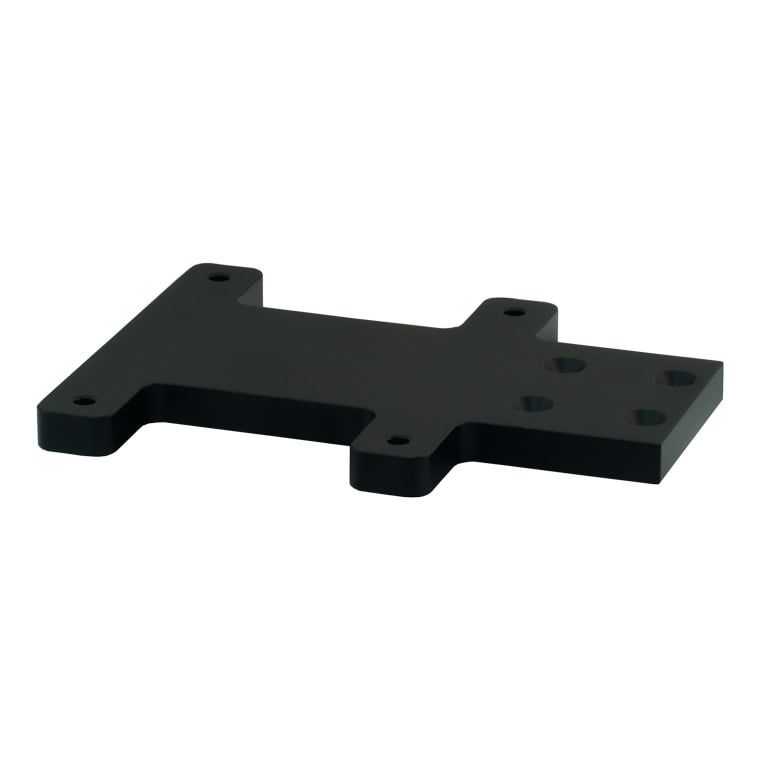

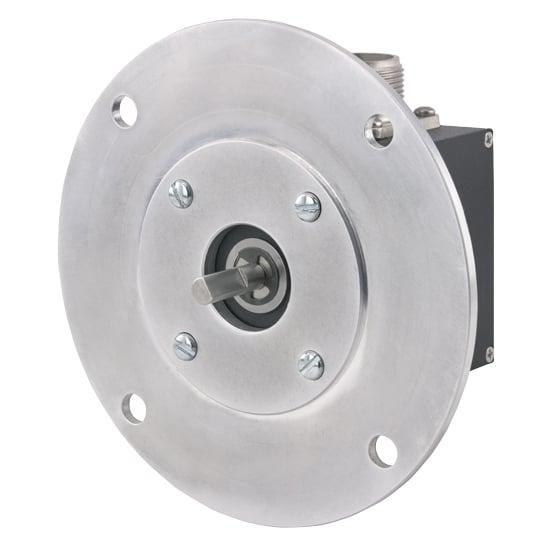

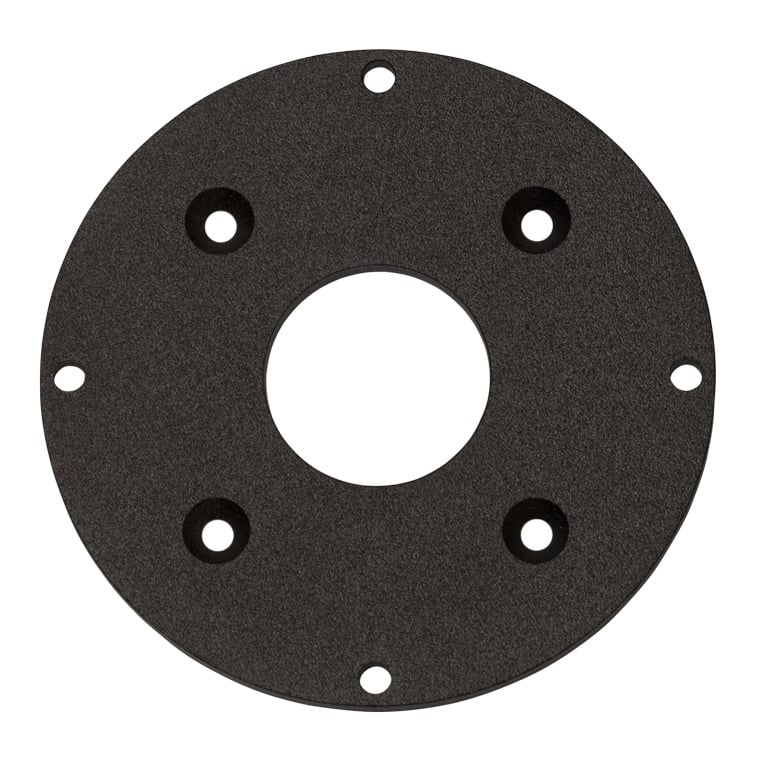

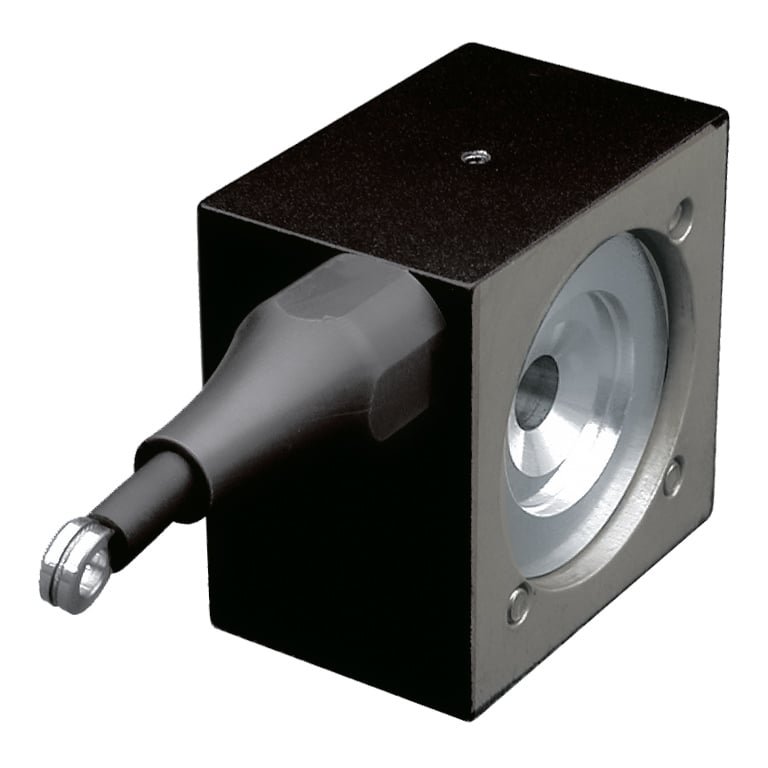

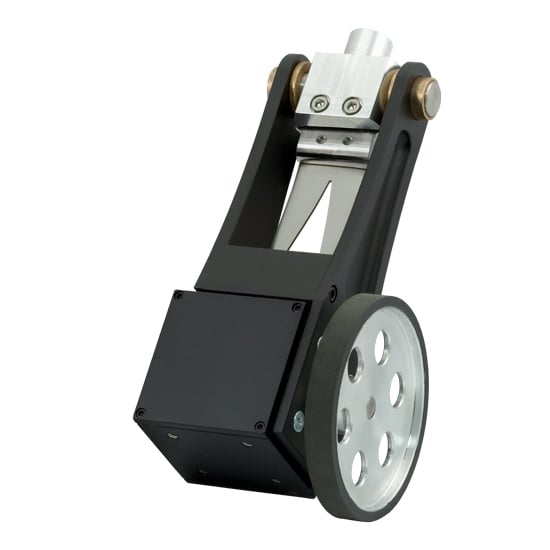

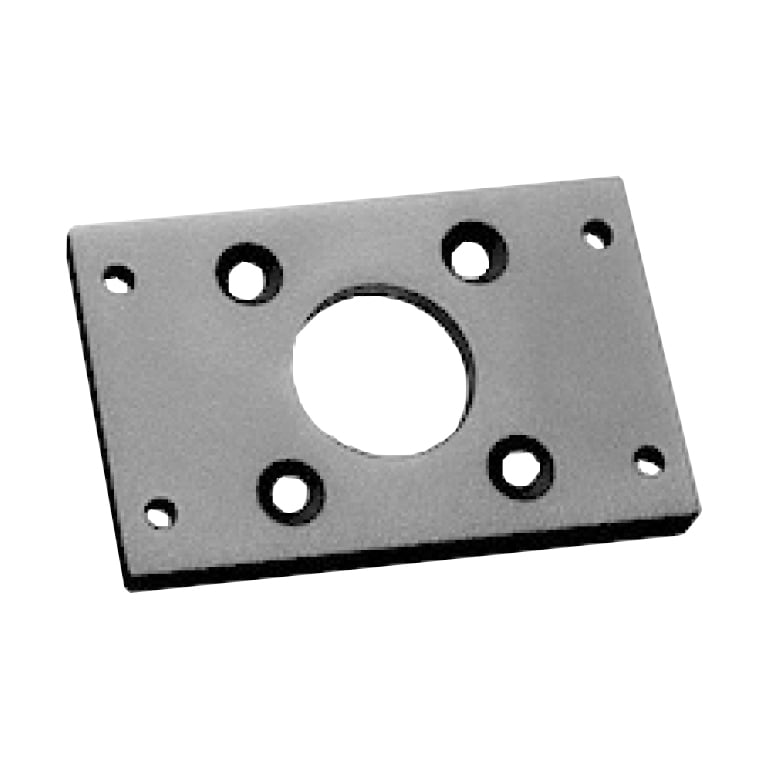

Model 711 Accessories
