Gaskets & Seal Kits


Gaskets allow for enhanced environmental sealing to protect the encoder from debris, dust or moisture, prolonging encoder life and limiting preventive maintenance. All gasket kits are designed for easy installation and manufactured of durable, tight-sealing gasket material.

stock-770-GASKET-KIT_C-face-gasket_model-770

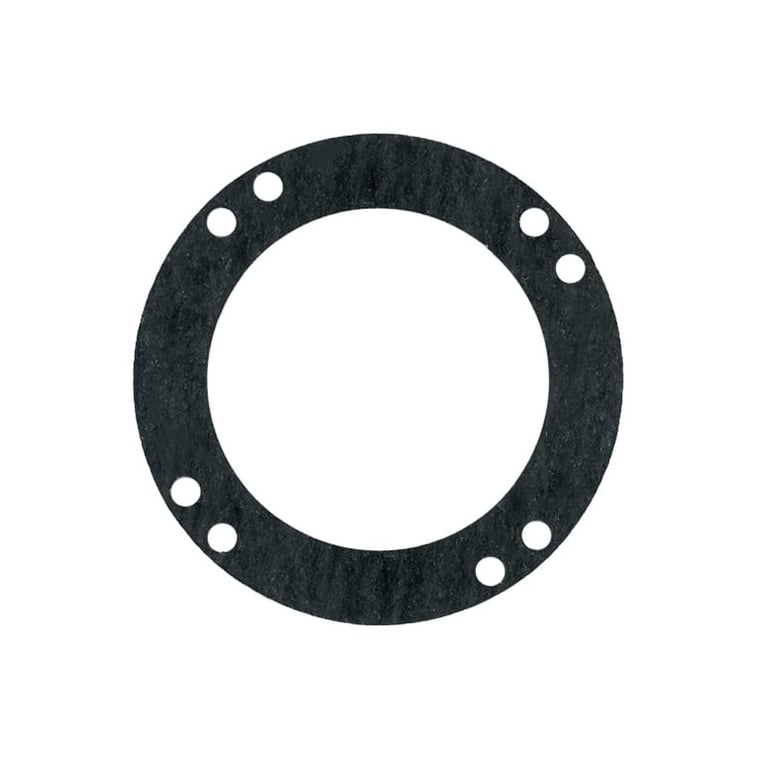

Model 770 C-face gasket



Field Replaceable Shaft Seals

Stock # Description Encoder models
161247 IP66 seal

Models 25SP, 725, 925,TR3

Models 711, 715, 716 with IND12 housing

161248 IP67 seal Models 725, 925, TR3
161254 IP67 seal Models 702, 802S, 758, 858S
161264 IP66 seal Models 702, 802S, 758, 858S


Gasket Kits

Stock # Description Encoder models Additional information
770-GASKET-KIT C-face gasket kit (4.5" AK) Models 770, 865T Gasket is included with Models 770 NEMA (A) and 865T NEMA (H1)
771-GASKET-KIT C-face gasket kit (8.5" AK) Model 771 Gasket is included with Model 771 NEMA (A)
121-SEAL-KIT IP50 Base dust seal Model 121 Order with Model 121; no charge if on same PO
