Model 716 Accu-Coder

  • Incremental cube encoder
  • Quadrature output
  • Resolutions to 10,000  CPR

Model 716 Features

  • The original industry-standard cube
  • Five versatile housing styles
  • Quadrature output
  • Resolutions available to 10,000 CPR

download_blueDownload Model 716 datasheet

Configure Model

Configure a 3D model of this encoder with the exact specifications for your application. Then download the files in almost any native format, and design it in to your application.

Configure 3D Model

Model 716

Configure Model


Purchase Options

Model 716 Description

The Model 716 Accu-Coder® is ideally suited for applications requiring a quadrature output. Designed for compatibility with most programmable controllers, electronic counters, motion controllers, and motor drives, it is ideally suited for industrial applications where it is important that the direction of rotation be known. Critical performance specifications for the most popular resolutions and advanced Opto-ASIC circuitry — a single chip design that eliminates many board level components — increase the reliability of an already dependable and durable encoder. With new options continually being added, the Model 716 excels in a wide variety of industrial applications.

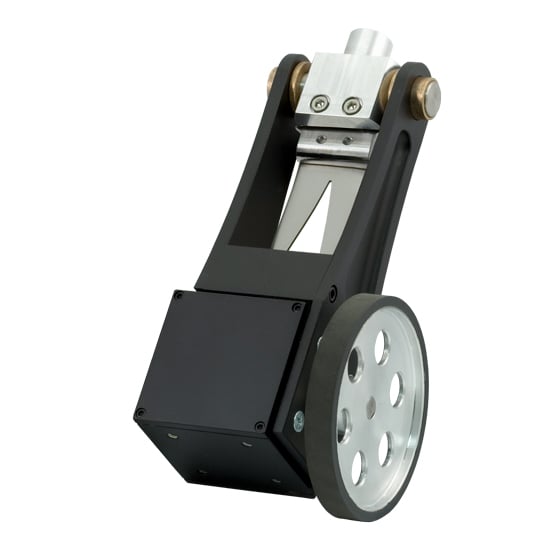

Model 716 Accessories
