Brackets & Mounting Adaptor Plates


In many instances, it’s necessary to position a rotary encoder with a mounting bracket in order to obtain the desired feedback. EPC offers mounting brackets for a number of Accu-Coder™ models. All EPC brackets are manufactured of durable materials and have the proper mounting holes and geometry for easy application to our encoders.

mounting-plate_HD10_heavy-duty-Cube_Models-711-715-716_withAndWithoutEncoder

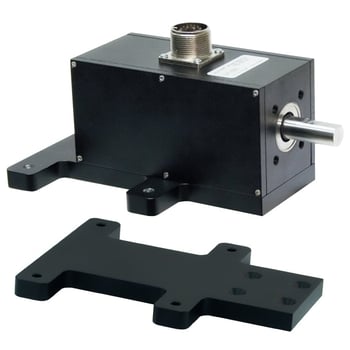

Heavy duty mounting plate for use with a Cube (HD12) encoder



Mounting Bracket & Plate Specifications



Image Stock # Description Encoder models Drawings Available online
stock-175997-01_uni-bracket_mounting-bracket_models-260-702 175997-01

Mounting bracket (Uni-bracket) allows for tethering of encoder. Includes screws and washers.

Accommodates 3.5" BC to 6.5" BC

Models 260, 702 Drawing | #175997-01 Shop online
accessories-mounting-bracket-176064-01 176064-01

Mounting plate

3.50" x 2.25"

Models LCE, 711, 715, 716 standard housing (S)

Drawing | #176064-01 Shop online
mounting-plate_HD10_heavy-duty-Cube_Models-711-715-716 176396-01

Heavy duty mounting plate

7.50" x 5.75"

Models LCE, 711, 715, 716 heavy duty housing (HD12) Drawing | #176396-01 n/a
stock-140121_foot-mount-bracket-1 140121

Foot mount bracket #1

Angled mounting bracket for 58 mm encoders

90° angle, 3.94" x 2.56"

Models 758, 858S Drawing | #140121 Shop online
stock-140122_foot-mount-bracket-2 140122

Foot mount bracket #2

90° angle, 3.80" x 2.50"

Models 702, 725, 925, 802S Drawing | #140122 Shop online
30MT_universal-mounting-adaptor_stock-176672 176672

Mounting bracket

Allows 5 mounting patterns for 30MT

Model 30MT Drawing | #176672 n/a
