Model 858S Accu-Coder

  • Stainless steel ∅58 mm incremental shaft encoder
  • IP67 sealing available

Model 858S Features

  • Industry standard Size 58 (58 mm diameter) stainless steel package
  • Resolutions up to 30,000 CPR
  • 80 lb maximum axial and radial shaft loading
  • 100° C operating temperature available
  • IP67 sealing available

download_blueDownload Model 858S datasheet

Configure Model

Configure a 3D model of this encoder with the exact specifications for your application. Then download the files in almost any native format, and design it in to your application.

Configure 3D Model

Model 858S

Configure Model


Purchase Options

Model 858S Description

The Model 858S Size 58 Accu-Coder® is a heavy duty, extremely rugged, reliable encoder in a 316 stainless steel package. Its compact design is well suited for harsh factory and plant floor environments that call for a metric solution. The double-shielded ball bearings are rated at 80 pound maximum axial and radial shaft loading, to ensure a long operating life. Shock rating is 75 g for 11 milliseconds duration. With the optional heavy-duty shaft seal installed, the Model 858S is rated at IP67. Two European standard mounting options are available: the clamping flange (20 Type), or the synchro flange (26 Type).

Easily installed with the Model LCX Draw Wire series.

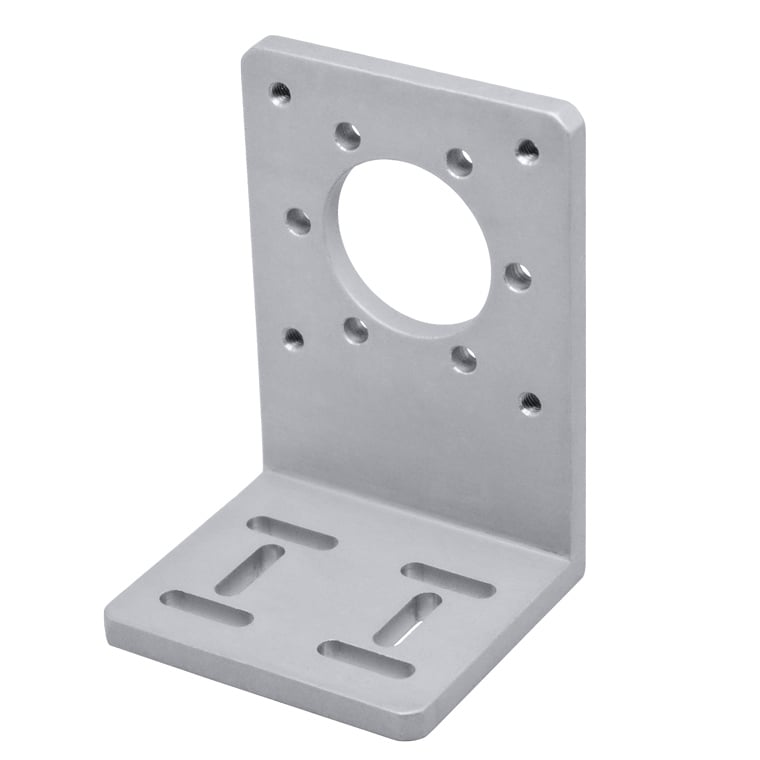

Model 858S Accessories
