Model 30MT Accu-Coder

  • Compact 30 mm magnetic encoder module with threaded mounting

Model 30MT Features

  • Large air gap and tolerance to misalignment
  • Resolutions up to 1024 CPR (4096 PPR with quadrature counting)
  • Temperature range -40° to 120° C
  • Easy alignment and installation
  • Sealing to IP69K

download_blueDownload Model 30MT datasheet

Configure Model

Configure a 3D model of this encoder with the exact specifications for your application. Then download the files in almost any native format, and design it in to your application.

Configure 3D Model

Model 30MT

Configure Model


Purchase Options

Model 30MT Description

The Model 30MT Accu-Coder® is a compact, incremental magnetic encoder module with advanced magnetic sensing and signal processing technology. With a built-in alignment feature, the threaded housing allows for quick, accurate air-gap setting. Featuring resolutions up to 1024 CPR, several output types, and a wide range for supply voltage, it can be configured for a variety of industrial, commercial, and consumer feedback applications. The non-contact magnetic sensor and optional sealing up to IP69K allows the Model 30MT to be applied in environments where dirt, dust, and liquids are present.

Product Drawings

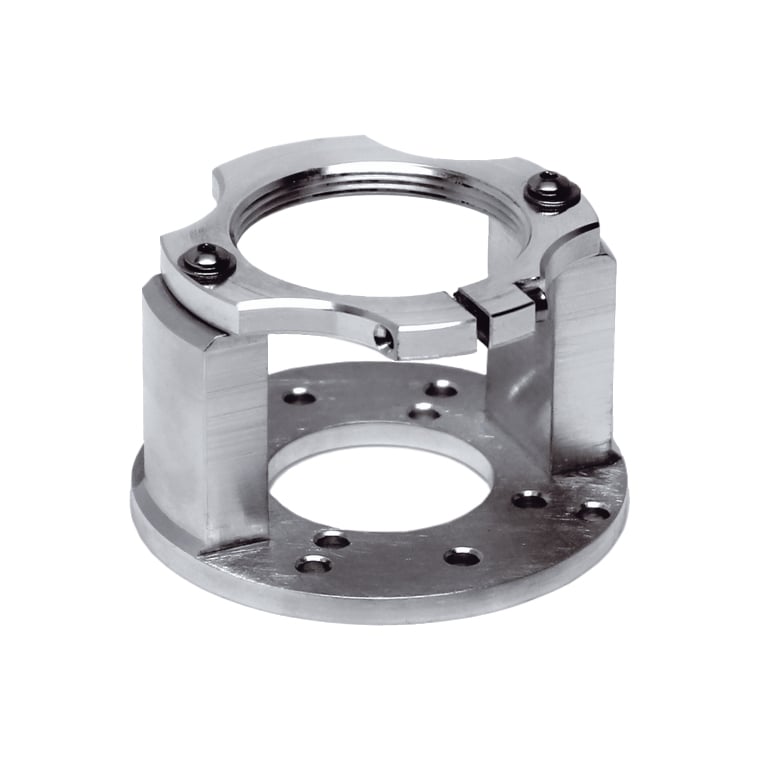

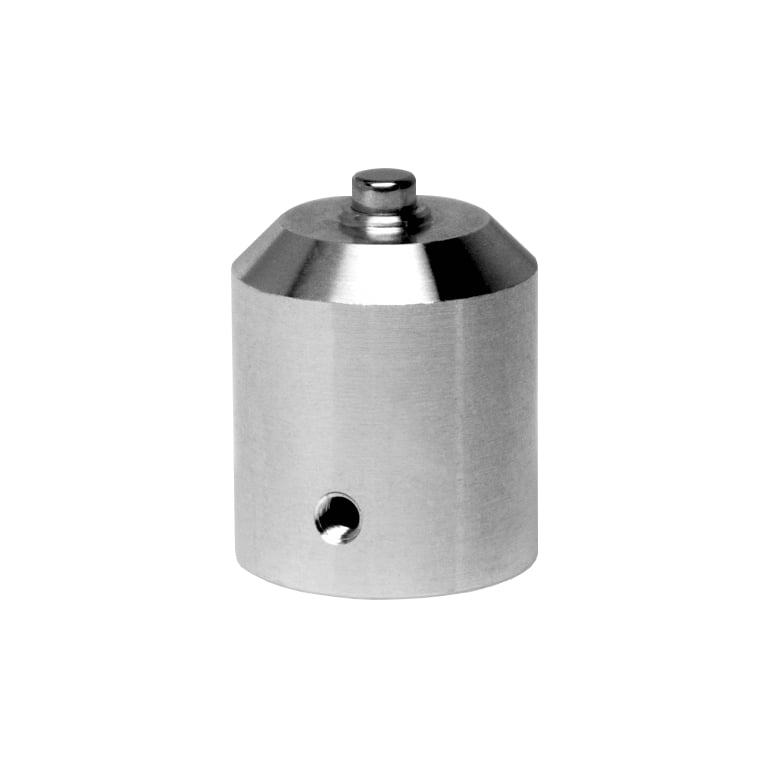

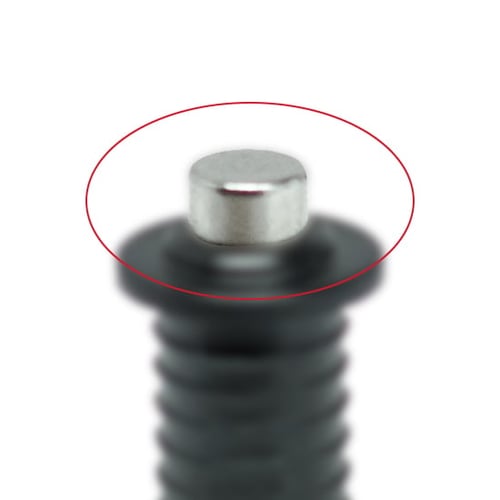

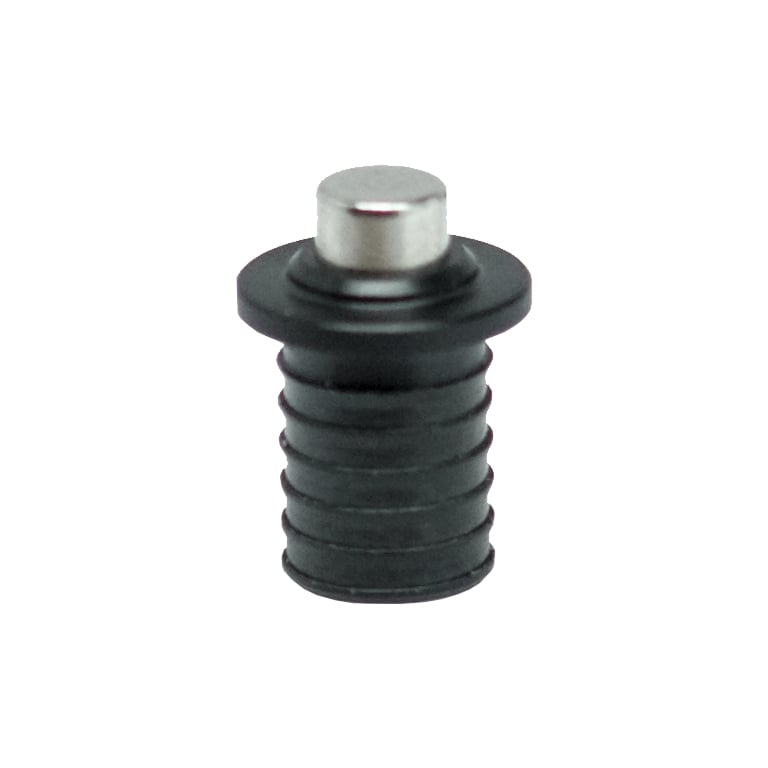

Model 30MT Accessories


Model 30MT
