Flexible Shaft Couplings


Flexible Shaft Coupling Description

To attach an encoder shaft to another rotating shaft, a coupling device is needed. Because shaft run-out or endplay can result in excessive loads on encoder bearings, EPC recommends use of flexible couplings designed for encoder applications. It's far more cost-effective to replace a coupling than to replace an entire encoder.

EPC also offers magnetic couplings that can be used for temporary applications, or for attaching hollow bore or thru-bore encoders to large diameter shafts.

couplings_flexible-shaft_group

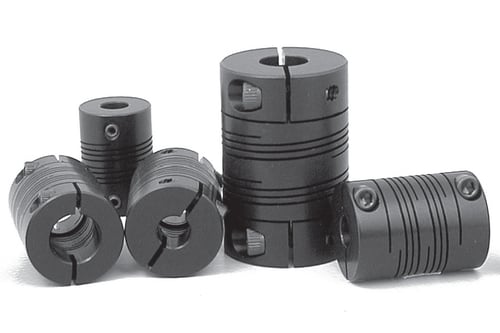

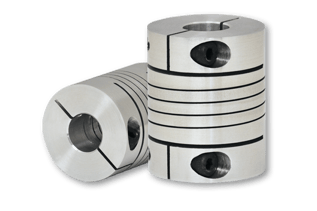

Shaft couplings to fit any size bore



Magnetic Shaft Coupling Specifications

For use with Models 260 and 25T. For easier centering on a shaft, a pilot hole is located in the center of the coupling.

Image Stock # Fits bore size Drawings Available online
stock-176409-01_magnetic-coupling-sm-for-3-8-bore 176409-01 3/8" (0.375") Drawing | #176409-01 Shop online
stock-176282-01_magnetic-coupling-sm-for-5-8-bore 176282-01 5/8" (0.625") Drawing | #176282-01 Shop online


Shaft Coupling Specifications

For use with any thru-bore encoder.

Stock # Coupling length From shaft size To shaft size Available online
161307 0.87 - 1.00" long From 1/4" To 1/4" Shop online
161308 0.87 - 1.00" long From 6 mm To 6 mm Shop online
161309 0.87 - 1.00" long From 6 mm To 1/4" Shop online
161314 1.00 - 1.01" long From 6 mm To 3/8" Shop online
161313 1.00 - 1.01" long From 1/4" To 3/8" Shop online
161317 1.00 - 1.01" long From 3/8" To 3/8" Shop online
161319 1.00 - 1.01" long From 3/8" To 1/2" Shop online
