Model TR1 Tru-Trac™

  • Encoder, measuring wheel & spring-loaded torsion arm in one unit
  • Resolutions to 10,000 CPR

Model TR1 Features

  • Encoder, measuring wheel & spring loaded torsion arm integrated into one compact unit
  • Spring-loaded torsion arm makes wheel pressure adjustments a snap
  • Easily installed in a vertical, horizontal or upside down orientation
  • Operates over a variety of surfaces at speeds up to 3000 feet per minute
  • Integrated module simplifies your system design, reducing cost

download_blueDownload Model TR1 datasheet

Configure Model

Configure a 3D model of this encoder with the exact specifications for your application. Then download the files in almost any native format, and design it in to your application.

Configure 3D Model

Model TR1

Configure Model

×

Purchase Options

Model TR1 Description

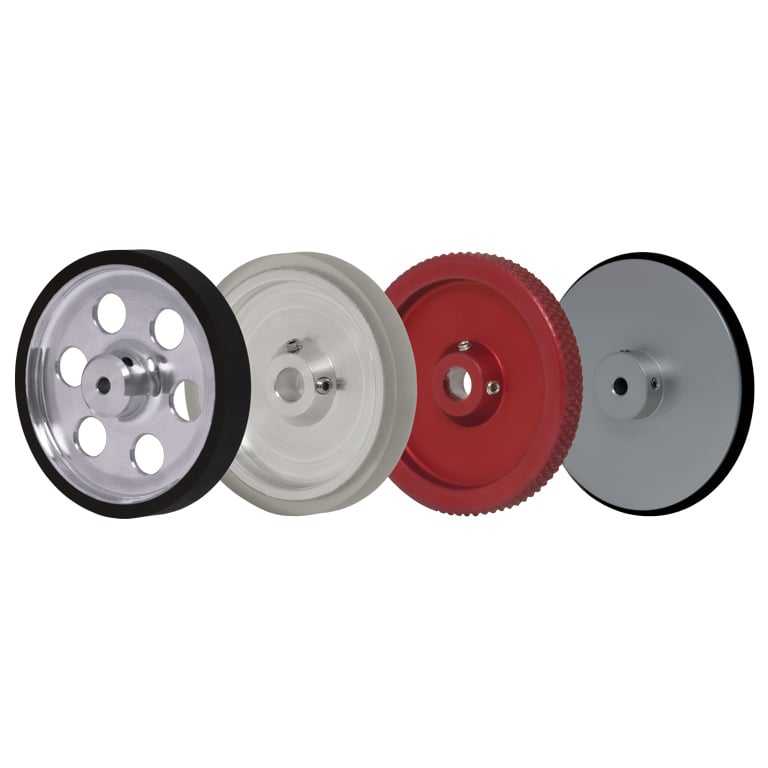

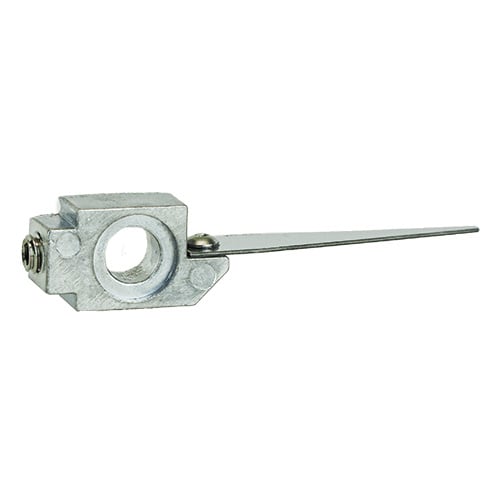

The Model TR1 Tru-Trac™ linear measurement solution is a versatile option for tracking velocity, position, or distance over a wide variety of surfaces. An integrated encoder, measuring wheel, and spring-loaded torsion arm in one, compact unit, the Model TR1 is easy to install. The spring-loaded torsion arm offers adjustable torsion load, allowing the Model TR1 to be mounted in almost any orientation – even upside-down. The threaded shaft on the pivot axis is field reversible, providing mounting access from either side. With operating speeds up to 3000 feet per minute, a wide variety of configuration options – including multiple wheel material options – and a housing made from a durable, conductive composite material that minimizes static build up, the Model TR1 Tru-Trac™ is the ideal solution for countless applications.

Model TR1 Accessories
