Signal Enhancement

  • Repeater
  • Converter
  • Splitter

RX/TXD Features & Applications

The RX/TXD is a 4-in-one unit that can be configured as a level changer, signal converter, line repeater, splitter, or tester.

  • Various voltages available
  • Encoder tester/verifier
  • Enclosed housing
  • DIN rail mount
  • Long distance data transmission
  • Converting between common signal types
  • Turning one signal into two
  • Providing proper signal termination

This lightweight DIN rail mountable unit, Line Driver and Line Receiver, comes in a PC/ABS self-extinguishing material blend. It is configurable as a level changer, line repeater, splitter or encoder tester. The RX/TXD will accept TTL, RS422, RS485, PP, NPN, NPN OC, or PNP encoder inputs at 5V, or HTL, PP, NPN, NPN OC & PNP at 5V-24V. It will provide up to 3 outputs in any combination of TTL, RS422, RS485, PP, NPN or PNP, at 5V, or, HTL, PP, NPN or PNP at 6-28V. A series of LEDs on the front panel indicates power and signal presence. Connections are made via the easily accessible screw terminals as standard. This device may be used as both a Line Driver and Line Receiver.

Configure Model

Configure a 3D model of this encoder with the exact specifications for your application. Then download the files in almost any native format, and design it in to your application.

Configure 3D Model

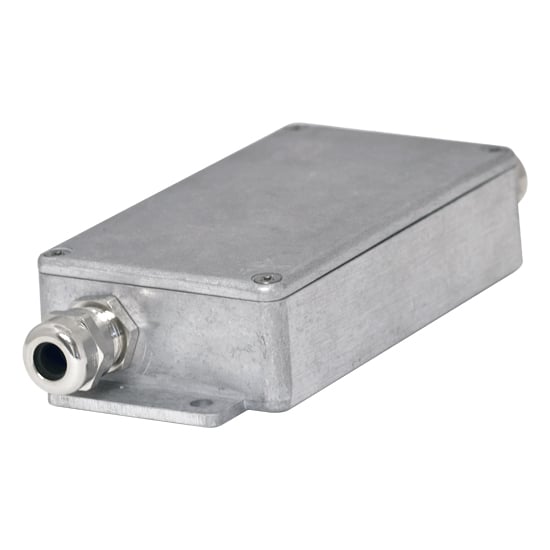

Signal Enhancement Model RX/TXD

Configure Model

×

Purchase Options

RX/TX Description

RX/TX products were designed to provide solutions for customers who require encoder signals to be transmitted over long distances, converted to a different output type, or duplicated for transmission to multiple receiving units.
