Encoder Connector-Cable Assemblies

Connector-Cable Assembly Features

Your EPC encoder is designed to produce a clean, stable, and reliable signal in a variety of operating conditions. To ensure that your encoder signal reaches its intended destination – be it a counter, PLC or controller – use genuine Accu-Coder® cables and connectors. Our shielded cable and mating connectors have been tested to meet stringent standards for quality and performance. All cable assemblies are assembled in our in-house cable department in accordance with industry best practices.

EPC cable and mating connector assemblies (6-pin, 7-pin, 10-pin, and 12-pin) can be ordered to your specified length and with the proper Accu-Coder® pin-out. Also, both encoder cable and mating connectors can be ordered separately. Our 5-pin and 8-pin M12 cordsets are available in a variety of lengths. If you don’t see the length you need, contact Customer Service as other options may be available.

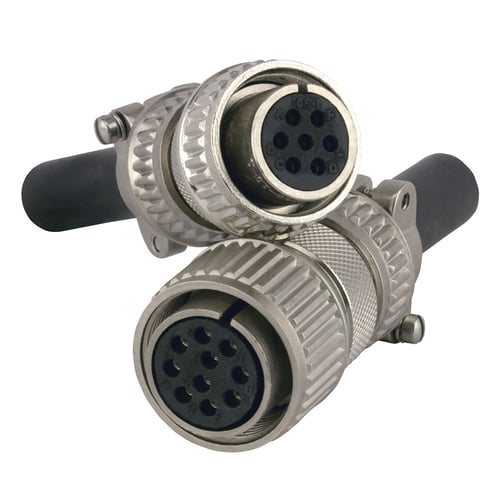

7-pin-and-10-pin-connectors

Incremental Encoder Connector-Cable Assemblies

To order a pre-wired cable and connector assembly, indicate the connector style, cable length and output configuration. Refer to 3xx Incremental Encoder Cable Assemblies (PDF) and 4xx Twisted Pair Cable Assemblies (PDF) for cable assembly details.

Ordering Guide

Specify one choice in each column to create part number. Contact Customer Service to order.

Example cable assembly required: 16 ft, 10-pin MS Type, Line Driver, Quadrature with Index, no CE
Example part number based on table: 310C-016-HV-R-N

_

Cable type

_ _ C -

Connector style

_ _ _ -

Cable length

_ _ -

Output type

_ -

Channel configuration

_

CE compatible

3 Standard

4 Twisted Pair

06 6-pin MS type¹

07 7-pin MS type¹

09 9-pin D-sub miniature¹

10 10-pin MS type

12 12-pin M23 type

A6 6-pin MS type, 90°¹

A7 7-pin MS type, 90°¹

A1 10-pin MS type, 90°

H1 10-pin bayonet

Number of feet

(ex. 5 feet = 005)



ST Single ended; for use with output types OC, PU, PP, S, O

HV For differential line driver

A Single channel

Q Quadrature or dual channel

R Quadrature with index Z

CE CE Certified

N No

¹Available with standard cable only

Absolute Encoder Connector-Cable Assemblies



To order a pre-wired cable and connector assembly, indicate the connector style and cable length. Refer to 5xx Absolute Encoder Cable Assemblies (PDF) and 6M1C Absolute Encoder Cable Assemblies (PDF) for cable assembly details.

Ordering Guide

Specify one choice in each column to create part number. Contact Customer Service to order.

Example cable assembly required: 16 ft, 10-pin MS Type, no CE
Example part number based on table: 510C-016-N

Example cable assembly required: For use with Model A36R, 16 ft, Embedded Battery, with CE
Example part number based on table: 6M1C-016-L-EB-CE

_ -

Cable type

_ _ C -

Connector style

_ _ _ -

Cable length

_ -

Power Option5

_ _ -

Battery5

_

CE compatible

5 Absolute

6 A36R Absolute4

10 10-pin MS type²

16 16-pin M23³

19 19-pin Bayonet

A1 10-pin MS type, 90°²

M1 Molex Receptacle5

 Number of feet

N Normal

L Low

NB No battery

EB Embedded battery6

CE CE Certified

N No

²8-bit only. CE option not available
³For use with ≤ 12-bit outputs
4Cable type 6 only available with the M1 connector type
5Only available with cable type 6
6Only available with L Power Option. Minimum 1 foot cable length required

6M1C Cable Options for Model A36R

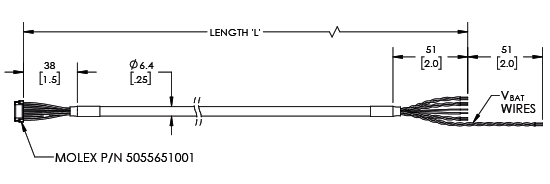

Power-ready cable

For multi-turn (L) Low Power Option, user supplies external power. See Low Power cable drawing (PDF).

a36r-lowpowercable_6m1c-prcbl

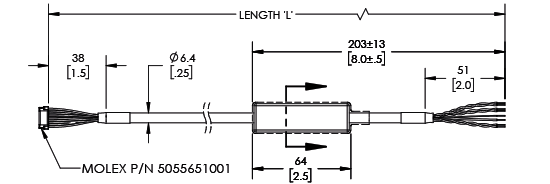

Embedded Battery Cable

For multi-turn (L) Low Power Option with (EB) Embedded Battery, battery supplies external power. See Embedded Battery Cable drawing (PDF).

a36r-embeddedbattcable_6m1c-ebcbl

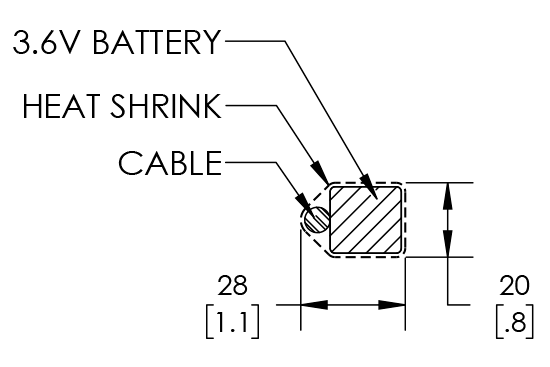

Embedded battery cable battery notes:

  1. The battery section of the cable is rigid and non-flexible.
  2. Battery is located close to the customer end of the cable, and is housed in a protective enclosure secured directly to the cable.
  3. Maximum rated battery operating temperature is 85° C.
  4. Minimum total cable length for EB option is 30 cm (1 foot).

a36r-embeddedbattcable_battery-detail_550x367
