Model TR3 Tru-Trac™

  • Heavy duty linear measurement solution with optional dual wheels

Model TR3 Features

  • Encoder, measuring wheel, and spring-loaded torsion arm integrated into one compact unit
  • Available with single or dual measuring wheels
  • Spring-loaded torsion arm for quick wheel pressure adjustments
  • Easily installed in a vertical, horizontal or upside down orientation
  • Operates over a variety of surfaces at speeds up to 3000 feet per minute

download_blueDownload Model TR3 datasheet

Configure Model

Configure a 3D model of this encoder with the exact specifications for your application. Then download the files in almost any native format, and design it in to your application.

Configure 3D Model

Model TR3

Configure Model

×

Purchase Options

Model TR3 Description

The Model TR3 Heavy Duty Tru-Trac™ is an integrated heavy duty encoder and spring-loaded measuring wheel assembly all in one, easy-to-use, compact unit. Available in both single and optional dual-wheel format, the Model TR3 is a versatile solution for tracking velocity, position or distance over a wide variety of surfaces in many industrial applications. Its spring-loaded torsion arm provides a simple-to-adjust torsion load, allowing the Model TR3 to be mounted in any orientation, even upside-down. The Model TR3 housing is an all-metal work horse, specifically designed to take on your toughest application environments at operating speeds up to 3000 feet per minute.

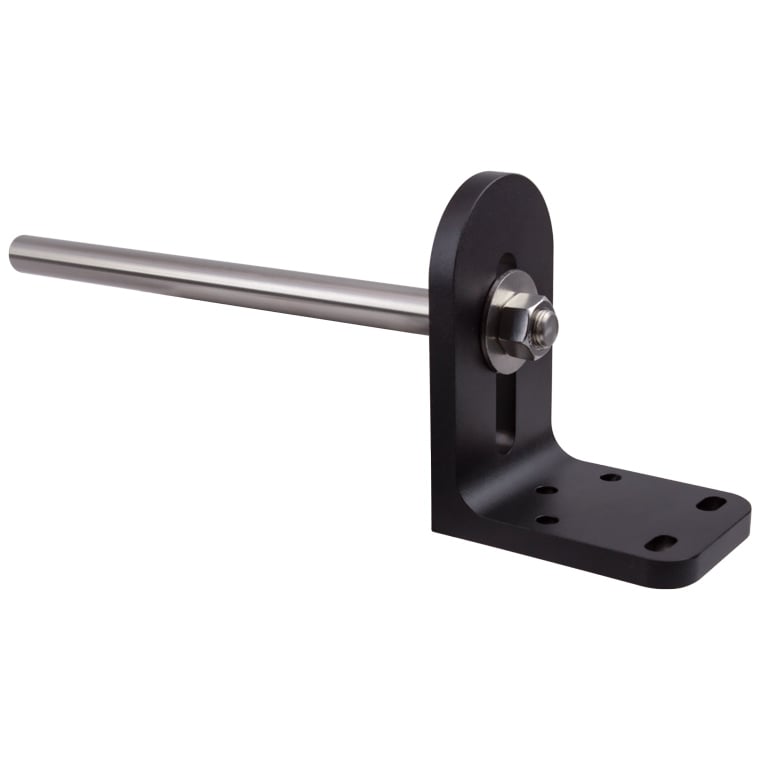

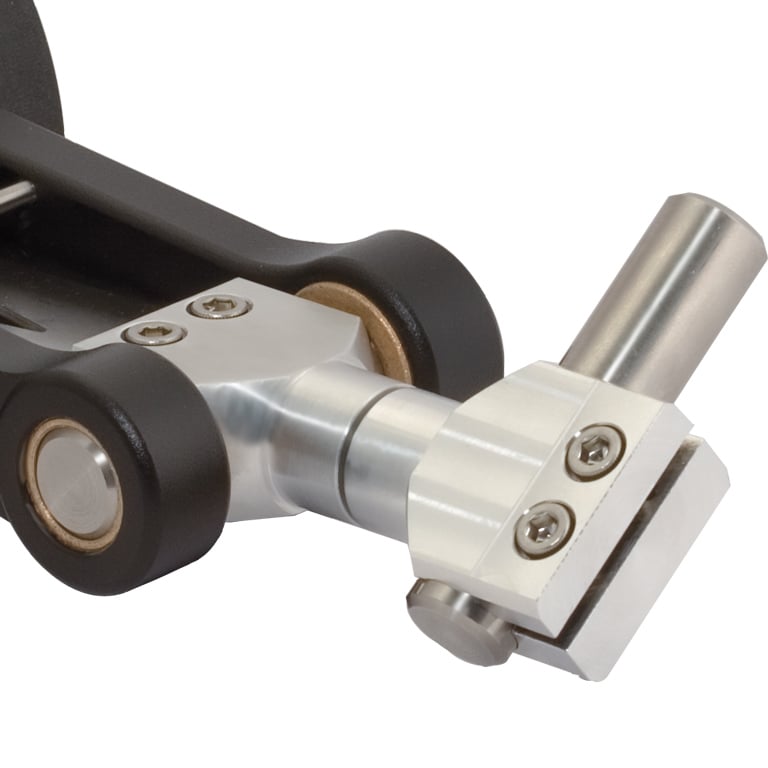

Model TR3 Accessories
