Model 702 Accu-Coder™

  • Standard Size 20 incremental shaft encoder
  • Rugged and reliable
  • IP67 sealing for harsh environments

Model 702 Features

  • Standard Size 20 package (2" x 2")
  • Flange and servo mounting
  • Up to 30,000 CPR
  • 80 lb maximum axial and radial shaft loading
  • IP67 sealing available

download_blueDownload Model 702 datasheet

Configure Model

Configure a 3D model of this encoder with the exact specifications for your application. Then download the files in almost any native format, and design it in to your application.

Configure 3D Model

Model 702

Configure Model

×

Purchase Options

Model 702 Description

The Model 702 Size 20 Accu-Coder™ is a heavy duty, extremely rugged, reliable, yet compact industry standard 2" diameter encoder, designed for harsh factory and plant floor environments. The double-shielded ball bearings are rated at 80 lb maximum axial and radial shaft loading to ensure a long operating life. Made to withstand the harsh effects of the real world, both the flange and servo models offer IP67 seals with the optional heavy duty shaft seal. With a variety of mounting options in both the flange and servo models, the Model 702 is ideal for both new applications and replacements.

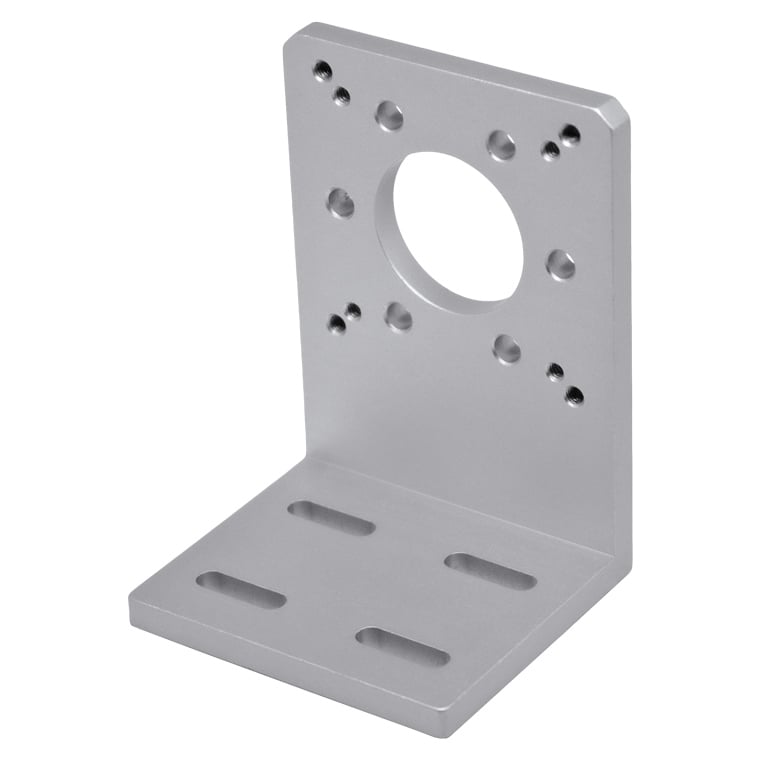

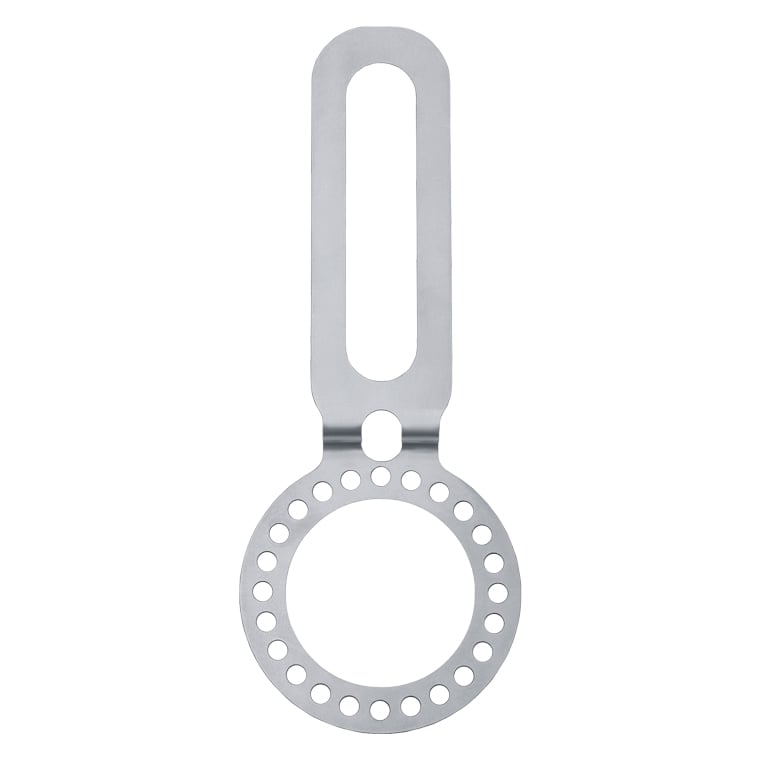

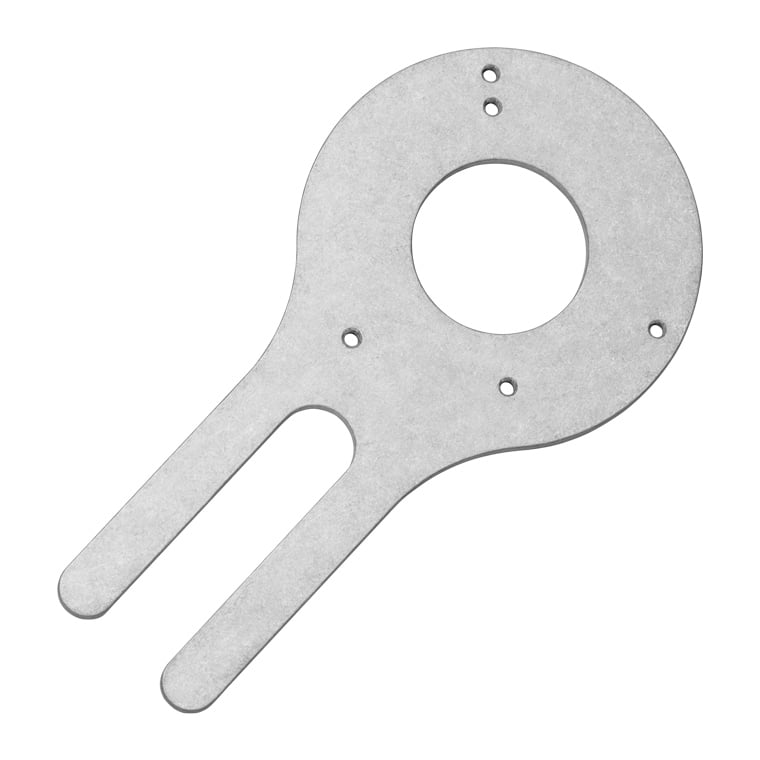

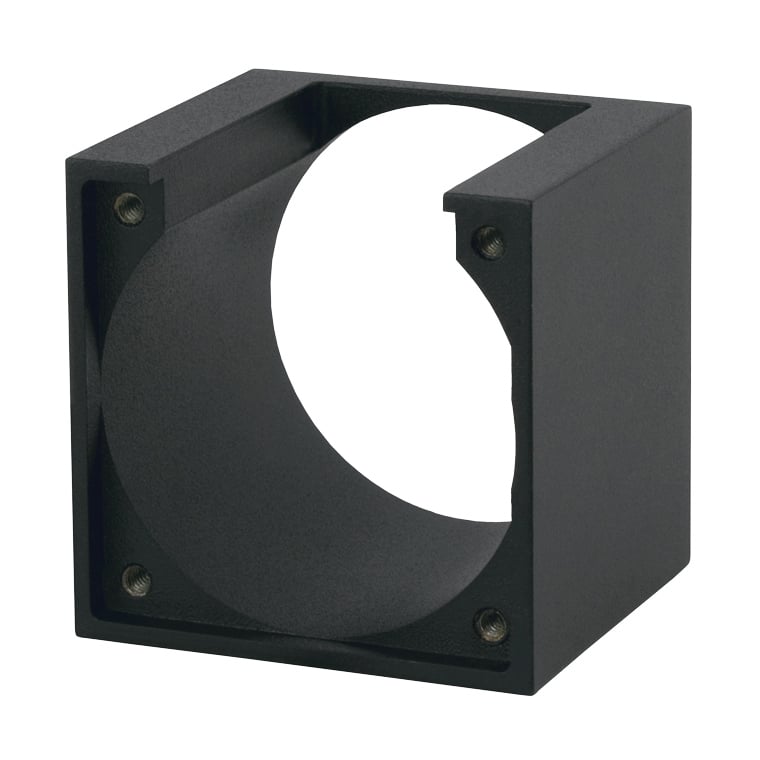

Model 702 Accessories
