Model 755A Accu-Coder™

  • Incremental shaft encoder
  • Compact ∅1.5"
  • Servo or flange mounts available
  • Resolutions up to 30,000 CPR

Model 755A Features

  • Compact 1.5" encoder
  • Resolutions up to 30,000 CPR
  • Servo or flange mounting
  • 1 MHz frequency response available
  • Extended temperature operating range available

download_blueDownload Model 755A datasheet

Configure Model

Configure a 3D model of this encoder with the exact specifications for your application. Then download the files in almost any native format, and design it in to your application.

Configure 3D Model

Model 755A

Configure Model

×

Purchase Options

Model 755A Description

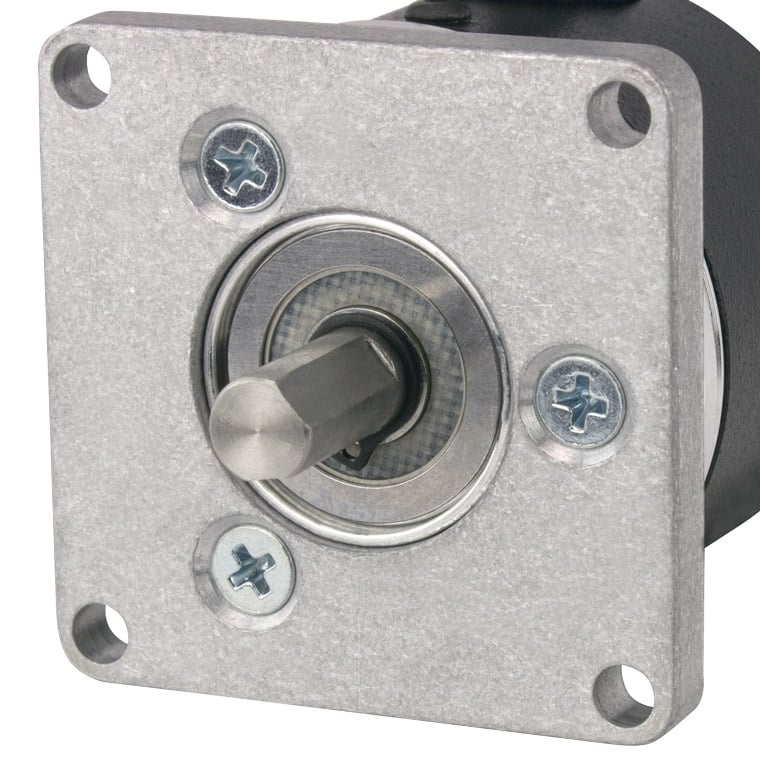

The Model 755A Size 15 Accu-Coder™ is ideal for applications requiring a small, high precision, high performance encoder. Approximately 1.5" in diameter and 1.5" long, it will fit where many encoders cannot. Designed with all-metal construction and shielded ball bearings, it will provide years of trouble-free use. The standard servo mount (S) version is available with a variety of shaft sizes and lengths. Three additional servo style mounts (S1, S2, S3) are also available. The optional flange mounting (MF) is ideal for applications requiring a bolt-on, high precision encoder. With its high reliability and quick delivery, the Model 755A encoder is the perfect replacement encoder in this size category.

Model 755A Accessories
