Linear Measurement Brackets


Brackets for Encoders with Measuring Wheels

Pivot & Spring Loaded Pivot Brackets

EPC's brackets allow for convenient mounting of an encoder and measuring wheel over the surface being measured. Pivot brackets use the combined weight of the encoder, measuring wheel, and bracket to provide surface torsion, while the single pivot action allows the assembly to adjust pitch for variations in material.

Spring loaded pivot brackets provide an adjustable surface torsion, which allows the encoder and measuring wheel to be mounted in almost any orientation, even upside down. The single pivot action allows the assembly to adjust pitch for variations in material height.

PLMS: Programmable Linear Measurement Solution

The PLMS bracket allows you to select the right encoder for your solution. For use with programmable incremental encoder Model 25SP, absolute encoder Model A25SB, or Ethernet-ready absolute encoder Model A58SE.

Angled Mounting Brackets

Angled mounting brackets allow for a variety of mounting positions.

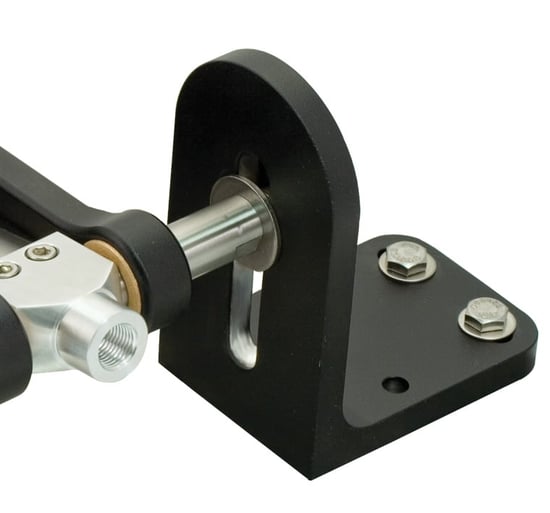

TR3_mounting_bracket-CLOSE-UP

Angled mounting bracket used with a Model TR3 Tru-Trac™ encoder



Pivot Bracket Specifications

Image Stock # Description Encoder models Drawings Available online
cube-pivot-single-nospring_stock-176430-01 176430-01

Single pivot bracket for Cube encoders

Replaces #140039

Includes Angled Mounting Bracket #176389-01

Models 711, 715, 716

Housings S, IND12

Shafts single or double-ended

Drawing | #176430-01 Shop online
pivot-bracket-double_cube_models-711-715-716 176431-01

Double pivot bracket for Cube encoders

Replaces #140040

Includes Angled Mounting Bracket #176389-01

Models 711, 715, 716

Housings S, IND12

Double-ended shaft

Drawing | #176431-01 Shop online
pivot-bracket-single_cube_models-711-715-716 176430-02 Spring loaded single pivot bracket for Cube encoders

Models 711, 715, 716

Housings S, IND12

Shafts single or double-ended

n/a Shop online
pivot-bracket-double_springLoaded_cube_models-711-715-716 176431-02

Spring loaded double pivot bracket for Cube encoders

Replaces #140040

Includes Angled Mounting Bracket #176389-01

Models 711, 715, 716

Housings S, IND12

Shafts single or double-ended

n/a Shop online
25SP-bracket 176727-01

Single pivot bracket for Size 25 shaft square flange encoders

Includes Angled Mounting Bracket #176389-01

PLMS

Models 25SF, 25SP, 702, 725, A25SB

Flange mount (MA)

Drawing | #176727-01 Shop online
25SP-bracket 176727-02 Spring loaded single pivot bracket for Size 25 square flange shaft encoders

Models 25SF, 25SP, 702, 725, A25SB

Flange mount (MA)

Drawing | #176727-02 Shop online
stock-176742-02_spring-loaded-single-pivot-bracket_size-25-58-plms-shaft 176742-02

Spring loaded mounting bracket for Size 25 servo mount or 58 mm clamping flange

Included with PLMS kit

PLMS

Models 25SP, A25SB, A58SE

Flange (MC, MG) or Servo (MH, MM, MP) mounts

Drawing | #176742-02 n/a
stock-176391-01_TR3_double-wheel_pivot_crop 176391-01 Double wheel pivot Model TR3 Tru-Trac™ Drawing | #176391-01 Shop online
spring-pivot-bracket_models-702-725-925_stock-140113 140113 Spring loaded pivot Models 702 (J), 725 (S, L), 925 (S) Drawing | #140113 Shop online

Angled Mounting Bracket Specifications

These brackets are specifically designed for use with Tru-Trac™ encoders.

Image Stock # Description Encoder models Drawings Available online
stock-140104_angled-mounting-bracket_models-TR1-TR2 140104 Angled mounting bracket Models TR1, TR2 Tru-Trac™ Drawing | #140104 Shop online
stock-176389-01_angled-mounting-bracket_models-plms-tr3 176389-01 Angled mounting bracket

PLMS

Model TR3 Tru-Trac™

Drawing | #176389-01 Shop online

arrow-alt-circle-right-regularCustomer Service


Questions? Give us a call at (800) 366-5412 or submit this form, and we'll contact you within one business day.

Standard lead time is 4 - 6 days on most models. Expedite options are available on many models. Contact us for details.
