Rubber Insert Measuring Wheels


EPC's rubber insert measuring wheels are made of high grade aluminum alloy. Available in a variety of circumferences, the replaceable rubber O-rings allow for scheduled maintenance. Rubber provides better traction in most applications, but also may wear faster than other materials, depending on the application. Rubber insert wheels are good for materials such as (but not limited to):

  • Paper
  • Film
  • Foil
  • Hard plastic
  • Other smooth materials

These recommendations are only guidelines. Performance may vary depending on your application. Contact Customer Service for specification assistance.

Rubber Insert Wheel Specifications

Wheel* Stock # Circumference Bore Width O-ring Diameter Available Online

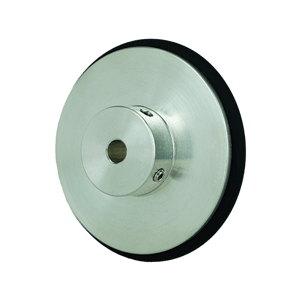

RI_wheels_for_web_500x500_161363

Drawing

161363 200 mm 1/4" 10 mm 50.16 mm Shop online

RI_wheels_for_web_500x500_161363

Drawing

161382 200 mm 3/8" 10 mm 50.16 mm Shop online

RI_wheels_for_web_500x500_161363

Drawing

161364 300 mm 1/4" 10 mm 81.92 mm Shop online

RI_wheels_for_web_500x500_161363

Drawing

161384 300 mm 3/8" 10 mm 81.92 mm Shop online

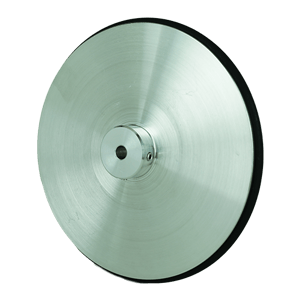

RI_wheels_for_web_500x500_161365

Drawing

161365 400 mm 1/4" 10 mm 113.67 mm Shop online

RI_wheels_for_web_500x500_161365

Drawing

161385 400 mm 3/8" 10 mm 113.67 mm Shop online

RI_wheels_for_web_500x500_161365

Drawing

161366 500 mm 1/4" (2 inserts) 20 mm 145.42 mm Shop online

RI_wheels_for_web_500x500_161365

Drawing

161388 500 mm 3/8" (2 inserts) 20 mm 145.42 mm Shop online

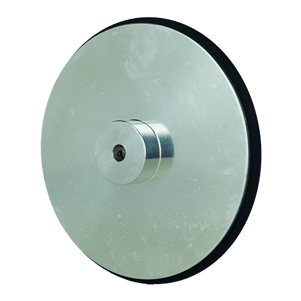

RI_wheels_for_web_500x500_161369

Drawing

161369 1/3 meter 1/4" 10 mm 94.62 mm Shop online

RI_wheels_for_web_500x500_161369

Drawing

161387 1/3 meter 3/8" 10 mm 94.62 mm Shop online

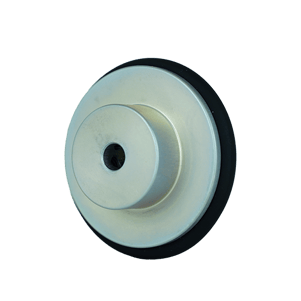

RI_wheels_for_web_500x500_161367

Drawing

161367 6" 1/4" 10 mm 37.47 mm Shop online

RI_wheels_for_web_500x500_161367

Drawing

161383 6" 3/8" 10 mm 37.47 mm Shop online

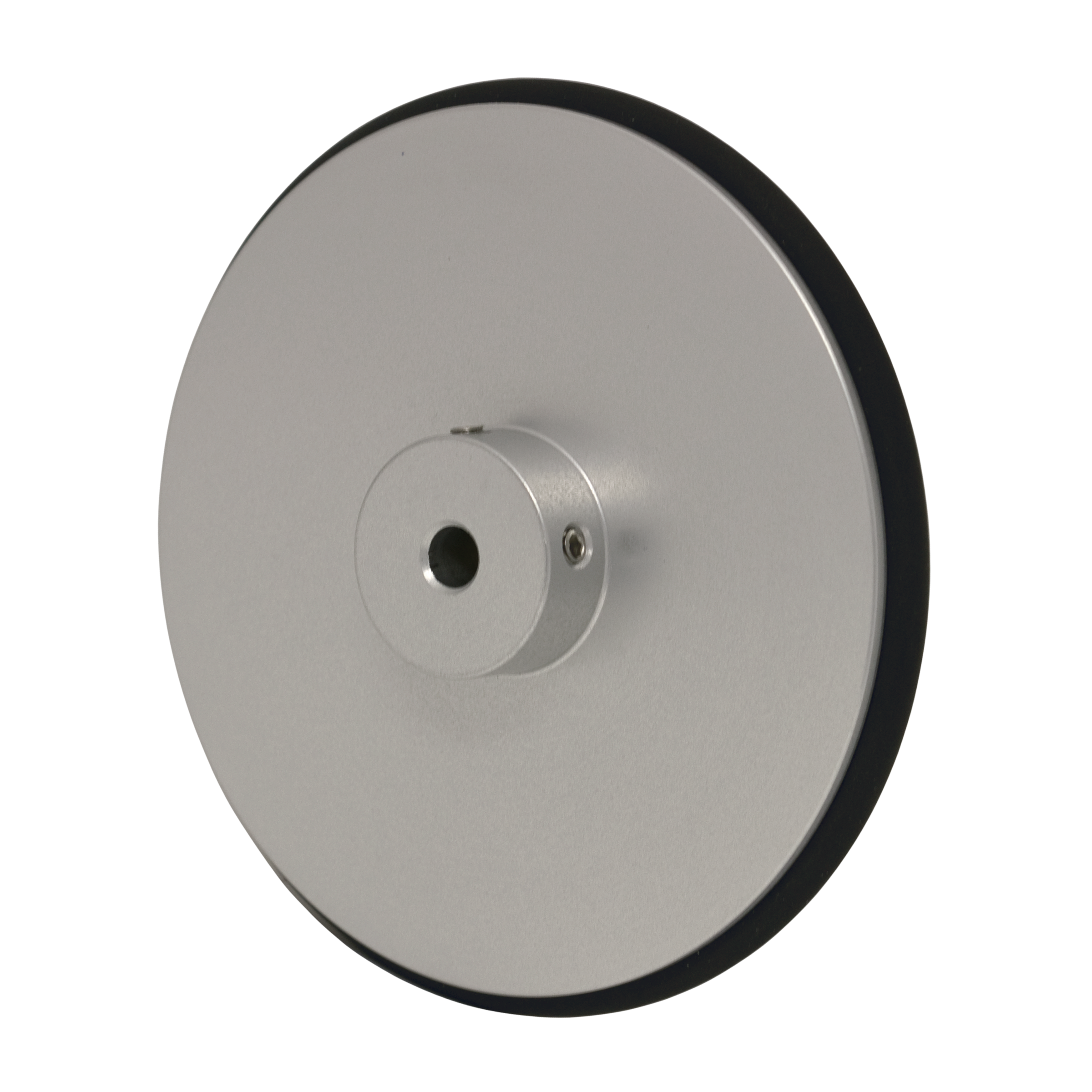

Wheel_Insert_Rubber_161368



Drawing

161368 12" 1/4" 10 mm 85.09 mm Shop online

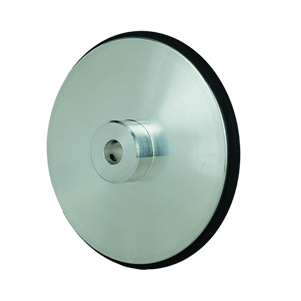

RI_wheels_for_web_500x500_161386

Drawing

161386 12" 3/8" 10 mm 85.09 mm Shop online

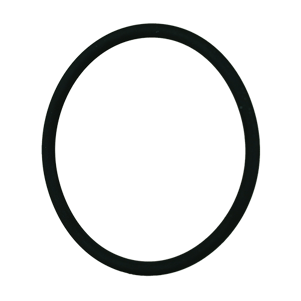

RI_wheels_for_web_500x500_161391 161390 200 mm replacement insert n/a n/a n/a n/a
RI_wheels_for_web_500x500_161391 161391 300 mm replacement insert n/a n/a n/a n/a
RI_wheels_for_web_500x500_161391 161392 400 mm replacement insert n/a n/a n/a n/a
RI_wheels_for_web_500x500_161391 161393 500 mm replacement insert n/a n/a n/a n/a
RI_wheels_for_web_500x500_161391 161394 1/3 meter replacement insert n/a n/a n/a n/a
RI_wheels_for_web_500x500_161391 161395 6" replacement insert n/a n/a n/a n/a
RI_wheels_for_web_500x500_161391 161396 12" replacement insert n/a n/a n/a n/a
* Wheel photo is for reference only. Drawings provide most accurate specifications.
