Model A36SB Absolute Encoder

  • Multi-turn shaft encoder
  • ∅36 mm (1.42")
  • SSI or CANopen® communications

Model A36SB Features

  • Single turn/multi-turn absolute encoder (16 Bit ST / 43 Bit MT)
  • SSI or CANopen® communication
  • Maintenance-free and environmentally friendly magnetic design
  • Energy harvesting magnetic multi-turn technology
  • No gears or batteries
  • Standard Size 36 mm package (1.42")
  • Meets CE/EMC standards for immunity and emissions

download_blueDownload Model A36SB datasheet

Configure Model

Configure a 3D model of this encoder with the exact specifications for your application. Then download the files in almost any native format, and design it in to your application.

Configure 3D Model

Model A36SB

Configure Model

×

Purchase Options

Model A36SB Description

The Model A36SB absolute encoder offers a high performance solution for your absolute feedback needs. It provides maintenance-free feedback thanks to its innovative battery-free and gear-free multi-turn technology. This encoder is especially suited for applications where position information must be retained after loss of system power. Its rugged magnetic technology and high IP rating make the Model A36SB an excellent choice, even in tough industrial environments. Available with a 1/4" or 6 mm shaft and a servo mount, the Model A36SB is easily designed into a variety of applications.

Replaces Models MA36S and SA36S

Product Drawings

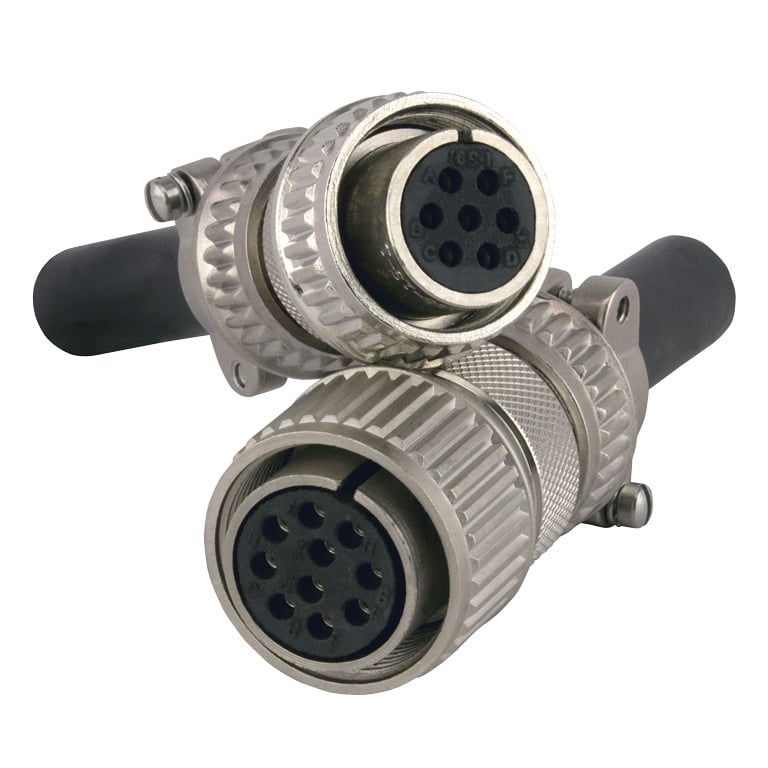

Model A36SB Accessories
