Model 770 NEMA Motor Mount Accu-Coder®

  • Slim profile motor-mount
  • Fits NEMA size 56C thru 184C motor faces (4.5" AK)

Model 770 NEMA Features

  • Slim profile – only 1.00" deep
  • Fits NEMA Size 56C to 184C motor faces (4.5" AK)
  • Incorporates Opto-ASIC technology
  • Resolutions to 4096 CPR

download_blueDownload Model 770 NEMA datasheet

Purchase Options

  • Buy through a distributor
  • Get a Quote

Model 770 NEMA Description

The Model 770 C-Face encoder is a rugged, high resolution encoder designed to mount directly on NEMA C-Face motors. Both sides of the encoder are C-Face mounts, allowing additional C-Face devices to be mounted to this encoder. Unlike many C-Face kit type encoders, the Model 770 contains precision bearings and an internal flex mount, virtually eliminating encoder failures and inaccuracies induced by motor shaft runout or axial endplay. The advanced Opto-ASIC design provides the advanced noise immunity necessary for many industrial applications. This encoder is ideal for applications using induction motors and flux vector control. The Model 770 provides speed and position information for drive feedback in a slim profile – only 1.00" thick. The thru-bore design allows fast and simple mounting of the encoder directly to the accessory shaft or to the drive shaft of the motor, using the standard motor face (NEMA sizes 56C to 184C). The tough, all metal housing resists the vibration and hazards of an industrial environment.

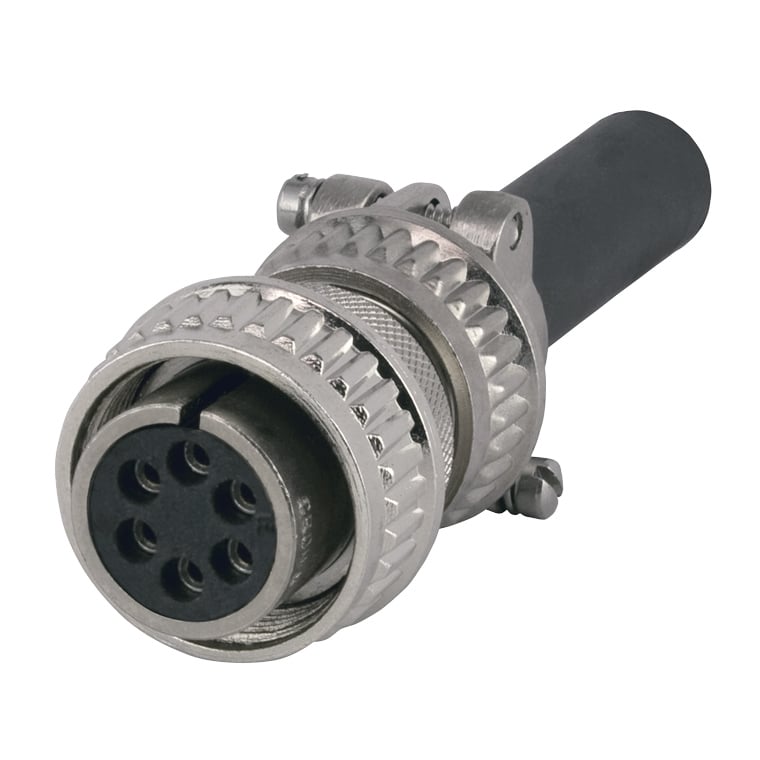

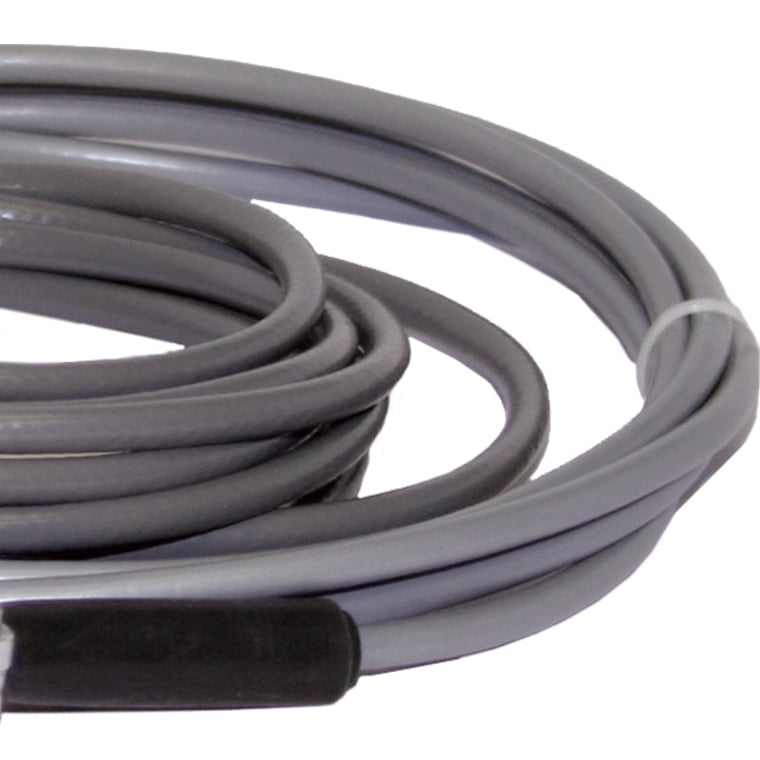

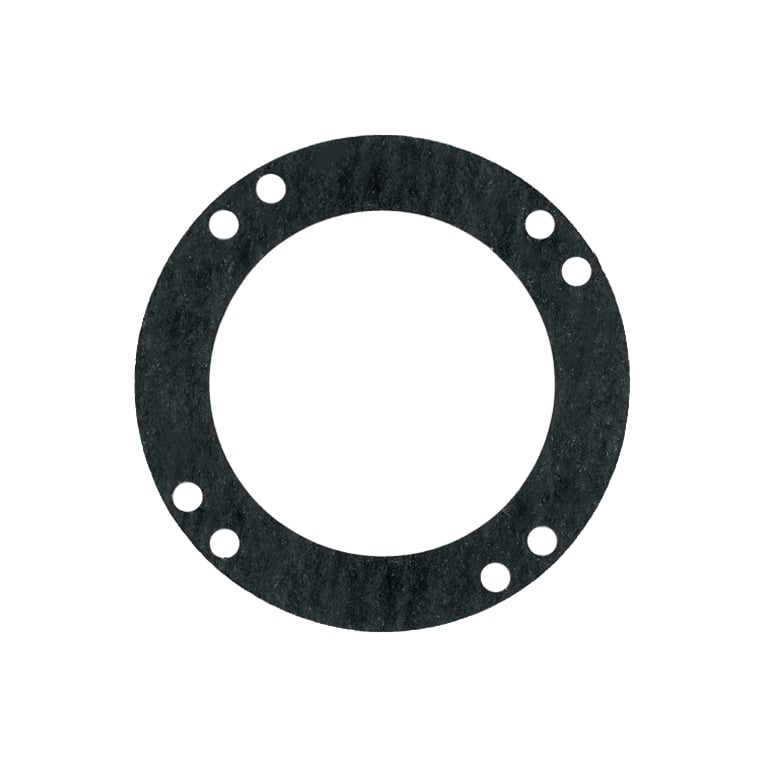

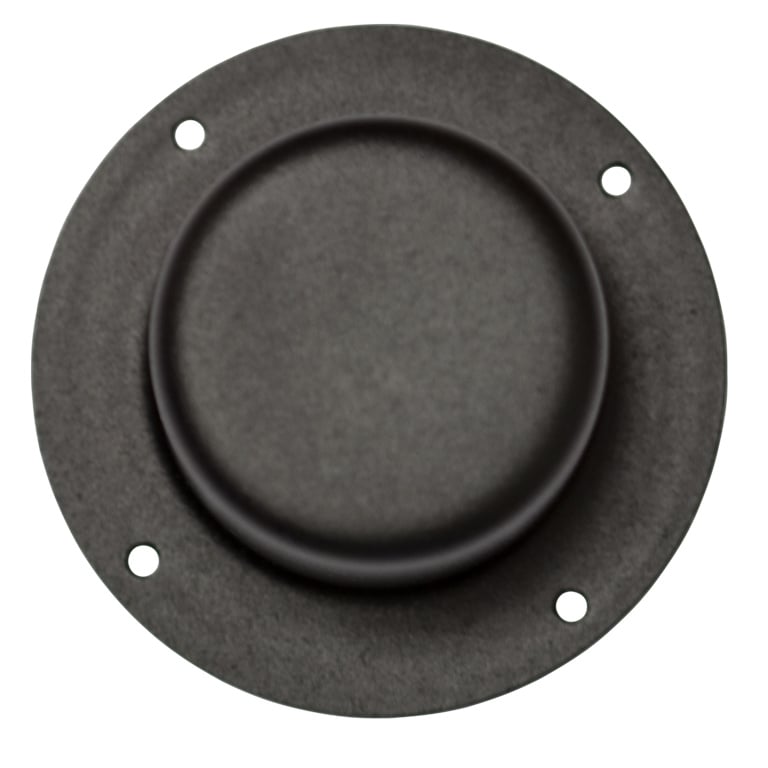

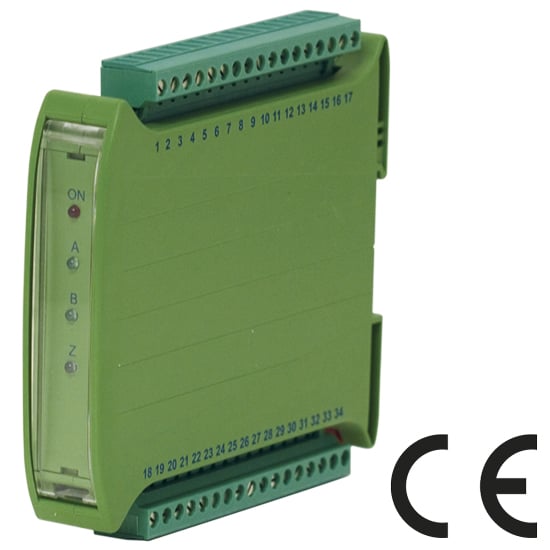

Model 770 NEMA Accessories
