Model 30M/30MT Accessories


The Model 30M and Model 30MT are compact, incremental magnetic encoder modules. Easy to install and offering a large air gap and tolerance to misalignment, the Model 30M and Model 30MT also offer accessories to customize it to your motion control application.

Installation & Mounting

Allows for a 5 different mounting patterns and makes installation of the Model 30MT threaded encoder module even easier.

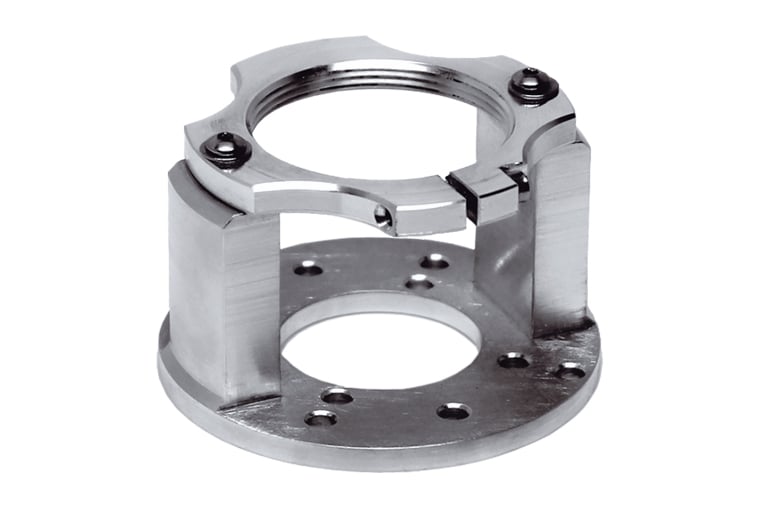

30MT_universal-mounting-adaptor_stock-176672_760x507

Universal mounting bracket (#176672) for Model 30MT

Stock # Description Encoder model Drawings
176672 Universal mounting bracket Model 30MT Drawing | #176672
176615 Installation centering & gapping tool Model 30M n/a

Magnet Holders & Magnets

The Over Shaft Magnet Holder easily positions magnet on the end of a shaft. Includes magnet.

The Press In/On Magnet Holder positions the magnet inside a 0.250" bore or on a 0.125” shaft. Includes magnet.

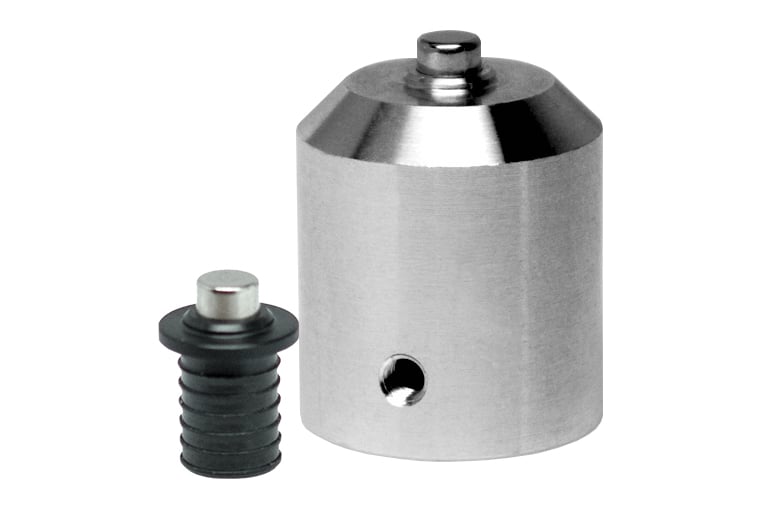

overshaft-magnet-holder_and_press-in-on-magent-holder_model-30m_760x507

Press in/on magnet holder (#176607-01) with overshaft magnet holder

Stock # Description Size Encoder model Drawings
176596-01 Over shaft magnet holder 3/16" bore Model 30M Drawing | All over shaft magnet holders
176597-01 Over shaft magnet holder 5 mm bore Model 30M Drawing | All over shaft magnet holders
176598-01 Over shaft magnet holder 6 mm bore Model 30M Drawing | All over shaft magnet holders
176599-01 Over shaft magnet holder 1/4" bore Model 30M Drawing | All over shaft magnet holders
176600-01 Over shaft magnet holder 5/16" bore Model 30M Drawing | All over shaft magnet holders
176601-01 Over shaft magnet holder 8 mm bore Model 30M Drawing | All over shaft magnet holders
176602-01 Over shaft magnet holder 3/8" bore Model 30M Drawing | All over shaft magnet holders
176603-01 Over shaft magnet holder 10 mm bore Model 30M Drawing | All over shaft magnet holders
176604-01 Over shaft magnet holder 1/2" bore Model 30M Drawing | All over shaft magnet holders
176605-01 Over shaft magnet holder 14 mm bore Model 30M Drawing | All over shaft magnet holders
176606-01 Over shaft magnet holder 5/8" bore Model 30M Drawing | All over shaft magnet holders
176607-01 Press in/on magnet holder

0.250" bore

0.125" shaft

Model 30M Drawing | #176607-01
030141 Raw magnet   Model 30M n/a

Molex Mating Cables

These cables are for use with your Model 30M encoder with either an 8-pin Molex Connector or the 16-pin Molex Connector.

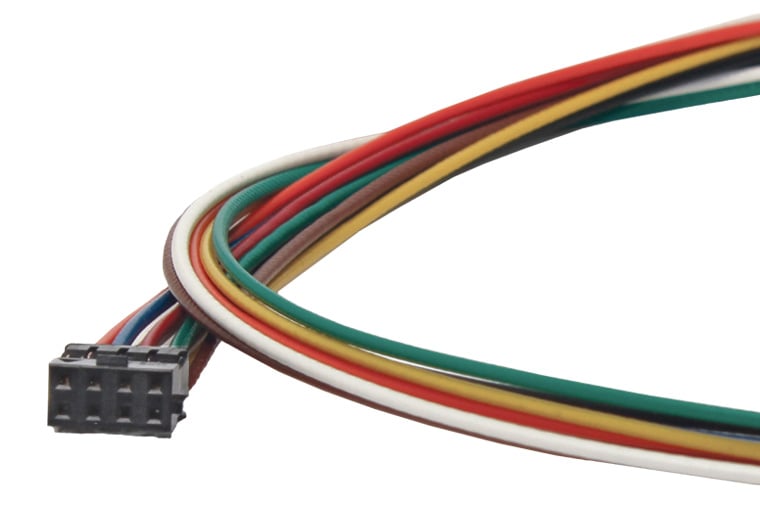

8-pin-molex-cable_30M_stock-075230_760x507

8-pin molex mating cable

Stock # Description Wire Encoder model
075230 8-pin connector on 24" cable 24 AWG Model 30M
075232 16-pin connector on 24" cable 24 AWG Model 30M

M12 Cordsets

For use with 5-pin or 8-pin M12 connectors. Always use a shielded cordset.

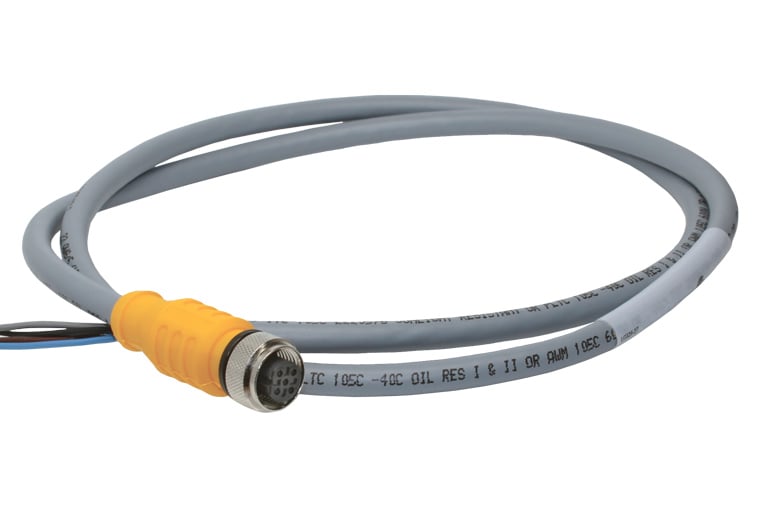

5-pin-m12-cordset_stock-075211_760x507

5-pin M12 (12 mm) cordset

Stock # Coding Length 8-Conductor or 5-Conductor Shield connected to coupling nut (CE compatible) Encoder model Available online
075100 A 0.5 m (1.64 ft) 8-conductor No Models 30M, 30MT Shop online
075101 A 2 m (6.56 ft) 8-conductor No Models 30M, 30MT Shop online
075102 A 4 m (13.12 ft) 8-conductor No Models 30M, 30MT Shop online
075103 A 6 m (19.69 ft) 8-conductor No Models 30M, 30MT Shop online
075104 A 10 m (32.81 ft) 8-conductor No Models 30M, 30MT Shop online
075200 A 2 m (6.56 ft) 8-conductor Yes Models 30M, 30MT Shop online
075201 A 4 m (13.12 ft) 8-conductor Yes Models 30M, 30MT Shop online
075202 A 6 m (19.69 ft) 8-conductor Yes Models 30M, 30MT Shop online
075203 A 10 m (32.81 ft) 8-conductor Yes Models 30M, 30MT Shop online
075204 A 1 m (3.28 ft) 5-conductor No Models 30M, 30MT Shop online
075211 A 1 m (3.28 ft) 5-conductor Yes Models 30M, 30MT Shop online
