Model 702 Motor Mount Accu-Coder™

Motor mount ready solution that is ultra-rugged and very reliable


Model 702 Motor Mount Features

  • Up to 30,000 CPR
  • IP66 sealing available
  • Mounting flange available with boss

download_blueDownload Model 702 motor mount datasheet

Purchase Options

Model 702 Motor Mount Description

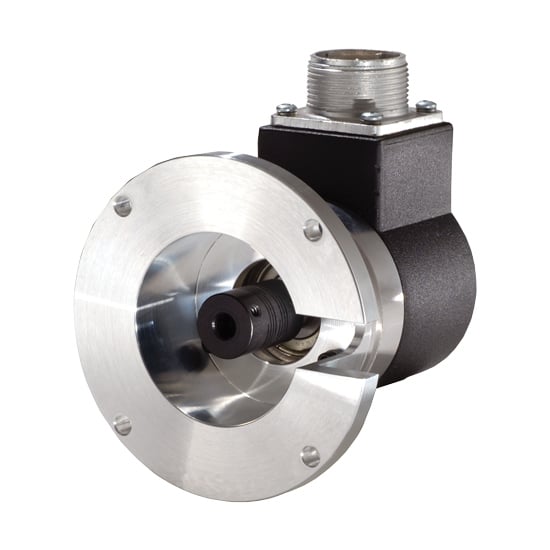

The Model 702 Motor Mount Accu-Coder™ is a heavy duty, ultra-rugged, reliable, yet compact industry-standard 2-inch diameter encoder. It is designed to withstand harsh factory and plant floor environments. The mounting flange, with integral shaft and coupling, allows the Model 702 encoder to be easily installed on a motor or shaft assembly, without the need for additional brackets or couplings. The Model 702 Motor Mount has the ability to handle shaft speeds of up to 8000 RPM and withstand the shock and vibration of high-speed servo motors.

Model 702 Motor Mount Accessories

arrow-alt-circle-right-regularCustomer Service


Questions? Give us a call at (800) 366-5412 or submit this form, and we'll contact you within one business day.

Standard lead time is 4 - 6 days on most models. Expedite options are available on many models. Contact us for details.
