Draw-Wire Encoder Solutions

Reliable Linear Position Measurement for Industrial Applications

When precise linear position feedback is essential, draw wire encoders provide a practical and versatile measurement solution. From industrial automation and material handling to construction machinery and mobile equipment, draw wire encoders measure linear movement and displacement across a wide range of travel distances.

The straightforward mechanical design, flexible mounting options and multiple feedback technologies make them an effective choice for applications where accurate position measurement matters.

Learn How Draw Wire Works





Explore our Draw Wire Encoders

Find the right solution for your measurement range, operating environment and feedback requirements.

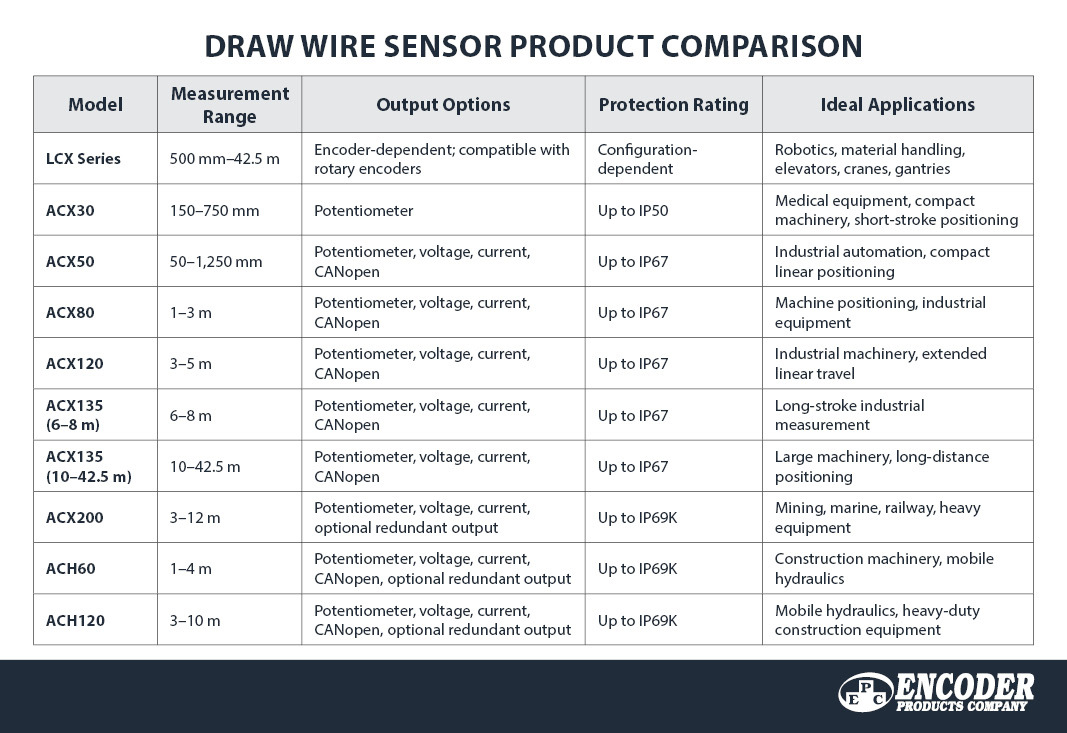

Need help comparing our Draw Wire solutions?  Download the comparison chart.

Product-Photo-ACX30



LCX Draw Wire Encoder

  • Flexible Linear Measurement with Your Choice of Rotary Encoder

  • Measurement range: 0.5 - 42.5 m

  • The LCX series combines a precision draw wire mechanism with a separately selected EPC rotary encoder.

ACX30 Draw Wire Sensor

  • Compact Linear Measurement for Short-Travel Applications

  • Measurement range: 150–750 mm

  • The ACX30 delivers reliable linear position feedback in an exceptionally compact design.

ACX50 Draw Wire Sensor

  • Linearity up to ±0.02% of full scale

  • Measurement from 50 to 1,250 mm

  • Temperature range -20 to +85°C (optional -40°C or +120°C)

ACX80 Draw Wire Encoder

  • Compact Linear Measurement for Industrial Machinery

  • Measurement range: 1–3 m

  • The ACX80 provides integrated linear position measurement in a compact design.

ACX120 Draw Wire Sensor

  • Versatile Position Feedback for Medium-Range Applications

  • Measurement range: 3–5 m

  • The ACX120 delivers integrated linear position measurement with flexible output options and environmental protection features.

ACX135 (6-8m) Draw Wire Sensor

  • High-Speed Linear Measurement for Industrial Equipment

  • Measurement range: 6–8 m

  • The ACX135 (6–8 m) provides integrated linear position feedback for industrial machinery requiring precise measurement over moderate travel distances.

ACX135 (10–42.5 m) Draw-Wire Sensor

  • Extended-Range Position Measurement for Large Equipment

  • Measurement range: 10–42.5 m

  • Designed for applications requiring long-distance linear measurement, the ACX135 (10–42.5 m) provides continuous position feedback with analog and CANopen output options.

ACH60 Draw Wire Sensor

  • Rugged Position Feedback for Mobile Equipment

  • Measurement range: 1–4 m

  • Designed for construction machinery and mobile hydraulics, the ACH60 combines rugged construction with flexible output options.

ACH120 Draw Wire Encoder

  • Extended-Range Measurement for Demanding Environments

  • Measurement range: 3–10 m

  • The ACH120 delivers rugged linear position feedback for construction machinery, mobile hydraulics, and equipment exposed to challenging conditions.

ACX200 Draw Wire Sensor

  • Heavy-Duty Measurement for Extreme Conditions

  • Measurement range: 3–12 m

  • Built for demanding environments, the ACX200 provides reliable linear position measurement with optional velocity, inclination, and redundant position feedback.

LCE Draw Wire Encoder

  • Low-cost linear measurement solution

  • Resolutions from 2-500 cycles/inch

  • Sealing up to IP65

  • Cable lengths up to 50"

Need Help Selecting a DrawWire Encoder?

Not sure which measurement range, output type, or environmental protection level is right for your application? EPC's technical experts can help you identify a reliable linear measurement solution.

Talk to an Encoder Expert
