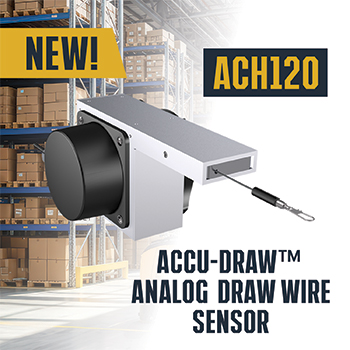

ACH120 Accu-Draw™ Analog Draw Wire Sensor

  • 3 to 10 meter measurement range
  • Analog or CANopen output
  • Protection up to IP69K
  •

Code-E_german_powered_by_WayCon_white_text



Reliable Linear Measurement for Demanding Mobile Applications

The ACH120 is a rugged, cost-effective draw-wire encoder designed for construction machinery, mobile hydraulics, and equipment operating in demanding environments.  With measurement ranges from 3 to 10 meters, the ACH120 provides linear position and distance feedback across extended equipment travel.

Choose from potentiometer, voltage, current, or CANopen outputs, with optional redundant signals available.  Multiple housing configurations, durable stainless-steel draw wires, and protection up to IP69K allow the ACH120 to be adapted to challenging operating conditions.

Request a Quote

Learn More About Draw Wire Sensors


website-ACH120_350x350

Product-Photo-ACH120-Geschlossen

download_blueDownload ACH120 Draw Wire Datasheet

Learn More about Draw Wire





ACH120 Draw Wire Features:

check-3   Five housing variations for different environments

    Cost-effective sensor for construction machinery and mobile hydraulics

    Measurement ranges from 3 to 10 m

    Protection class up to IP69K (suitable for steam and high pressure cleaning)

    Output signals: potentiometer, current, voltage or CANopen, optional redundant output

    Temperature range -20 to +85°C (optional -40°C)

Built for the Conditions Your Equipment Faces

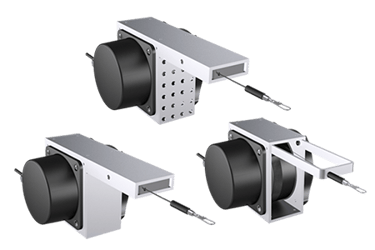

The ACH120 offers multiple housing configurations to accommodate different environmental conditions including dust, dirt, fluids, cement, concrete, clay, impact, and shock.

Available open, perforated, and closed housing combinations allows engineers to select the appropriate mechanical protection for their application.  Optional enhanced seawater protection provides additional corrosion resistance for offshore environments.
