ACX135 (6 to 8 m)

Accu-Draw™ Analog Draw Wire Sensor

6 to 8 meter measurement range
Analog or CANopen output
Protection up to IP67

Reliable Position Feedback for Dynamic Industrial Applications

The ACX135 (6 to 8 m) is a high performance draw wire sensor designed for precise linear position measurement in industrial machinery and equipment. Available in measurement ranges of 6, 7, or 8 meters, the ACX135 provides continuous position feedback for applications requiring extended travel and high dynamic performance.

Choose from potentiometer, voltage, current or absolute CANopen output options to match your control system requirements. With travel speeds up to 10 m/s, flexible connection options, and protection up to IP67, the ACX135 delivers reliable measurement for demanding industrial applications.

Request a Quote

Learn More About Draw Wire Sensors

Download ACX135 Draw Wire Datasheet

ACX135 Draw Wire Features:

Potentiometer, voltage, current, and absolute CANopen output options

Stainless steel draw wire

Measurement ranges of 6, 7, or 8 meters

Protection class IP65, optional IP67

Anodized aluminum housing

Temperature range -20 to +85°C (optional extended temperature configurations)

High Speed Measurement Across Extended Travel Distances

The ACX135 (6 to 8 m) combines a precision draw wire mechanism with integrated position measurement technology to deliver continuous linear feedback without requiring a separate rotary encoder.

Designed for dynamic industrial applications, the ACX135 supports travel speeds up to 10 m/s and acceleration up to 140 m/s². Multiple output options allow engineers to integrate the encoder into a variety of control systems, while optional environmental protection features provide added durability for challenging operating conditions.

Request a Quote

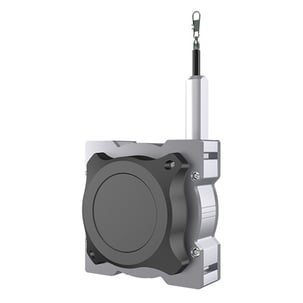

Product-Photo-ACX135-6-7-8
