Precise Linear Measurement for Extended Travel Applications

The ACX120 is a high performance draw wire sensor designed for accurate linear position measurement in industrial machinery and automation applications. With measurement ranges of 3, 4, or 5 meters, the ACX120 provides continuous position feedback for equipment requiring reliable measurement across extended travel distances.

Choose from potentiometer, voltage, current, or absolute CANopen output options to meet your control system requirements. With high dynamic performance, flexible mounting options, and protection up to IP67, the ACX120 delivers dependable position measurement for demanding industrial applications.

Request a Quote

Learn More About Draw Wire Sensors

Download ACX120 Draw Wire Datasheet

ACX120 Draw Wire Features:

High dynamics and interference immunity factor

Protection class up to IP67

Measurement ranges from 3 to 5 meters

Customized versions available

Output signals: potentiometer, current, voltage

Temperature range -20 to +85°C (optional -40°C or +120°C)

High-Speed Measurement Across Longer Travel Distances

The ACX120 combines a precision draw wire mechanism with integrated position measurement technology to deliver continuous linear feedback with requiring a separate rotary encoder.

Designed for dynamic industrial applications, the ACX120 supports travel speeds up to 10 m/s and acceleration up to 140 m/s². Its measurement range of up to 5 meters makes it well suited for machinery requiring extended linear travel, while multiple output options allow integration with a variety of industrial control systems.

Request a Quote

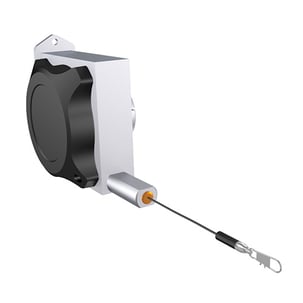

Product-Photo-ACX120-ausgezogen
