Polyurethane Faced Measuring Wheels


Encoder Products Company measuring wheels are made of high grade aluminum alloy. Polyurethane faced measuring wheels are good for materials such as (but not limited to):

  • Metal pipe
  • Sandpaper
  • Matting
  • Cardboard/packaging
  • Belting
  • Insulated wire

When choosing durometer ratings (or, degrees of hardness), consider that 90 polyurethane is more durable and performs better for tracking rough or hard fibers than the slightly softer 80 polyurethane material.

These recommendations are only guidelines. Performance may vary depending on your application. Contact Customer Service for specification assistance.

Polyurethane Faced Wheel Specifications

 Wheel Stock # Circumference Durometer Bore Width Available Online

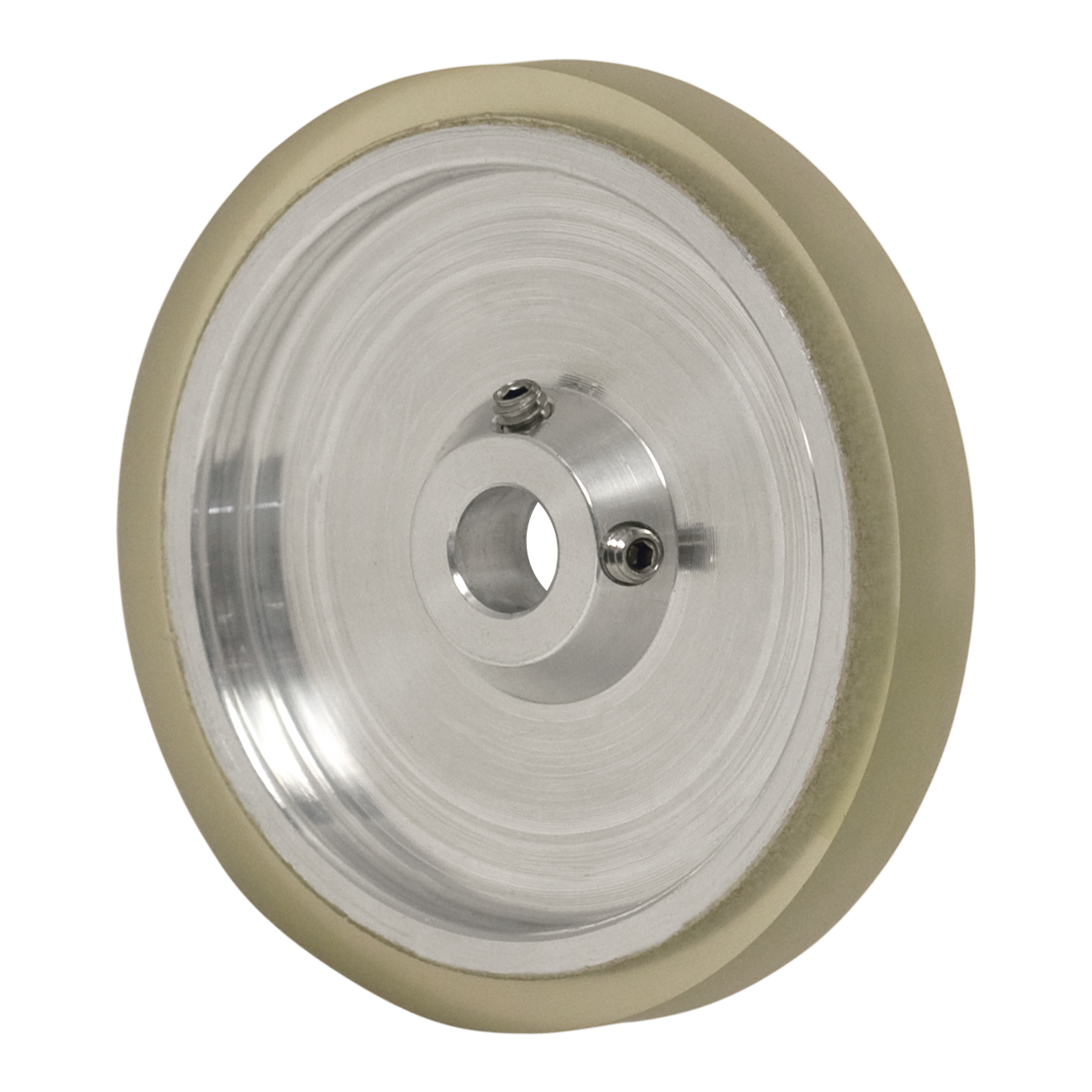

Wheel_Urethane_Small_161360



161360

TR1 standard option

6” 80 Urethane 1/4" 0.25" Shop online
  161310 12" 65 Urethane 1/4" 1" Shop online
  161331 12" 65 Urethane 3/8" 1" Shop online

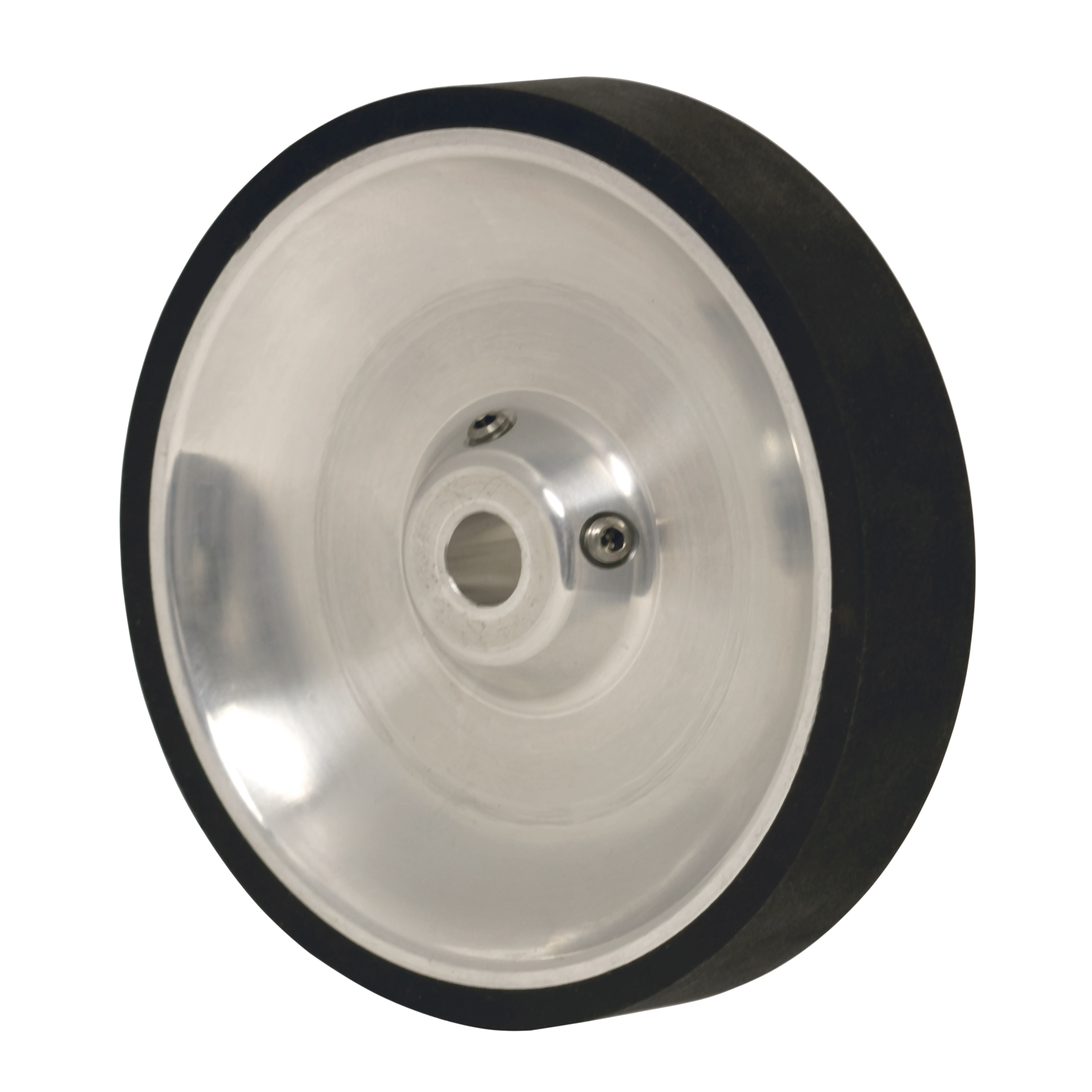

Wheel_Urethane_161428



161428

TR3 standard option

12" 65 Urethane 3/8" 0.75" Shop online
  161336 12" 80 Urethane 1/4" 0.70" Shop online
  161444 12" 80 Urethane 5/16" 0.70"
  161337 12" 80 Urethane 3/8" 0.70" Shop online
  161338 12" 90 Urethane 1/4" 0.70" Shop online
  161339 12" 90 Urethane 3/8" 0.70" Shop online
  161346 12" 65 Urethane 1/4" 0.50" Shop online
  161347 12" 65 Urethane 3/8" 0.50" Shop online
  161349 12" 90 Urethane 5/8" 0.70" Shop online



161442

TR3 standard option

300 mm 65 Urethane 3/8" 0.75" Shop online

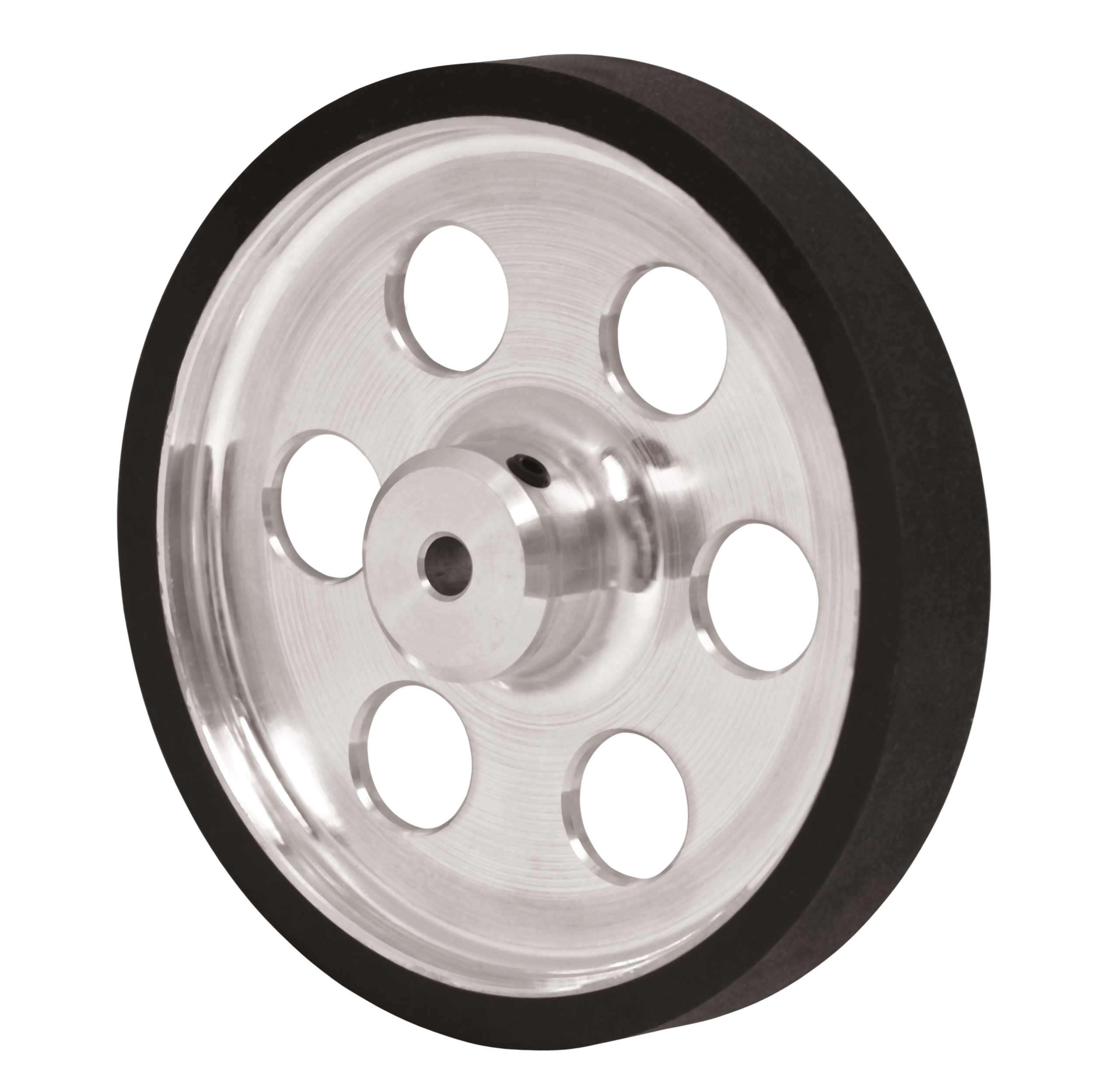

Wheel_Urethane_Holes_161344_cmyk



161344 1/3 meter 65 Urethane 1/4" 0.625" Shop online
  161359 1/3 meter 65 Urethane 3/8" 0.625" Shop online



161399

TR1 standard option

200 mm 80 Urethane 1/4" 0.25" Shop online
