Model 25SP Accu-CoderPro®

  • Programmable resolution, waveform & output type
  • Size 25 (2.5") shaft encoder
  • IP67 Sealing available

Model 25SP Features

  • Standard Size 25 package (2.5" x 2.5" / 63.5 mm)

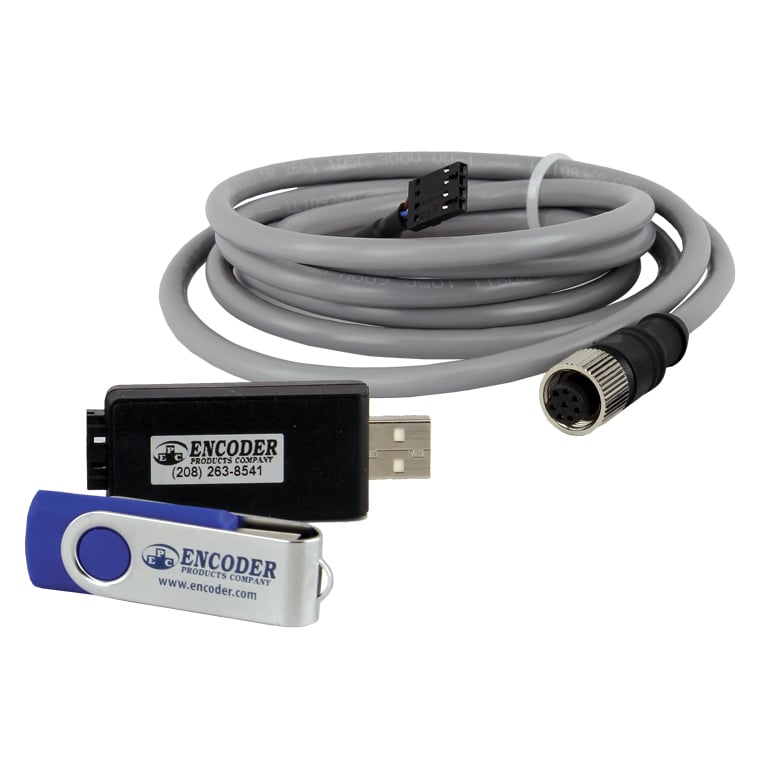

  • Programmable with optional USB module or factory configured
  • Resolutions from 1 to 65,536 CPR (262,144 quadrature counts)
  • Choose from 32 waveforms
  • Select from 6 different output types
  • Servo and flange mounting
  • IP67 sealing available
  • Same day shipping on select configurations

download_blueDownload Model 25SP datasheet

Configure Model

Configure a 3D model of this encoder with the exact specifications for your application. Then download the files in almost any native format, and design it in to your application.

Configure 3D Model

Model 25Sp

Configure Model


Purchase Options

Model 25SP Description

The Model 25SP Programmable Size 25 Accu-CoderPro® shaft encoder is specifically designed for the challenges of an industrial environment. The rugged, industrial housing contains an advanced set of electronics that allow the encoder to be programmed to your exact application needs. Using EPC's optional programming module, users may select from 6 different output types, choose from 32 different waveforms, and program any resolution from 1 to 65,536 CPR – that's 262,144 counts using 4x quadrature counting. These programming features allow a single encoder to be configured for multiple applications, enabling one encoder to replace many different part numbers, providing cost savings on inventory and down-time replacement. The Model 25SP can also be configured and shipped with specs pre-programmed, no on-site programming needed. The Model 25SP Accu-CoderPro® comes standard with dual bearings rated 80 lbs axial or radial, and may be specified with up to IP67 sealing. Some configurations are in stock and ready to ship.

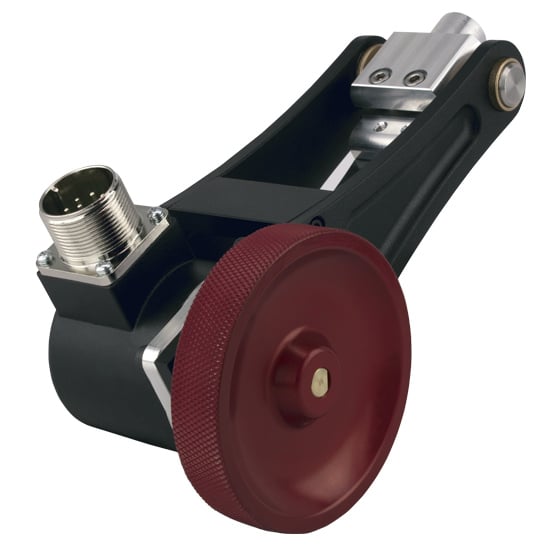

Easily installed with the Model PLMS to give you a programmable linear measurement solution.

Model 25SP Accessories
