Aluminum Faced Measuring Wheels


Knurled aluminum offers excellent traction. Anodizing hardens the aluminum and prevents corrosion, so these wheels are good for harsh environments where there may be washdown or exposure to corrosive elements.

Aluminum faced measuring wheels should not be used with delicate materials, but work well with materials such as, but not limited to:

  • Belting
  • Cardboard/packaging
  • Carpet
  • Cloth tape
  • Coarse fabric
  • Foam
  • Insulated wire
  • Insulation
  • Matting
  • Metal
  • Metal pipe
  • Rubber
  • Sandpaper
  • Wood (i.e., lumber cut-to-length)
  • Other durable materials


Aluminum Faced Wheel Specifications

Stock # Circumference Standard or hard anodized Bore Width Available Online
161360 6” Standard knurled 1/4" 0.25" Shop online

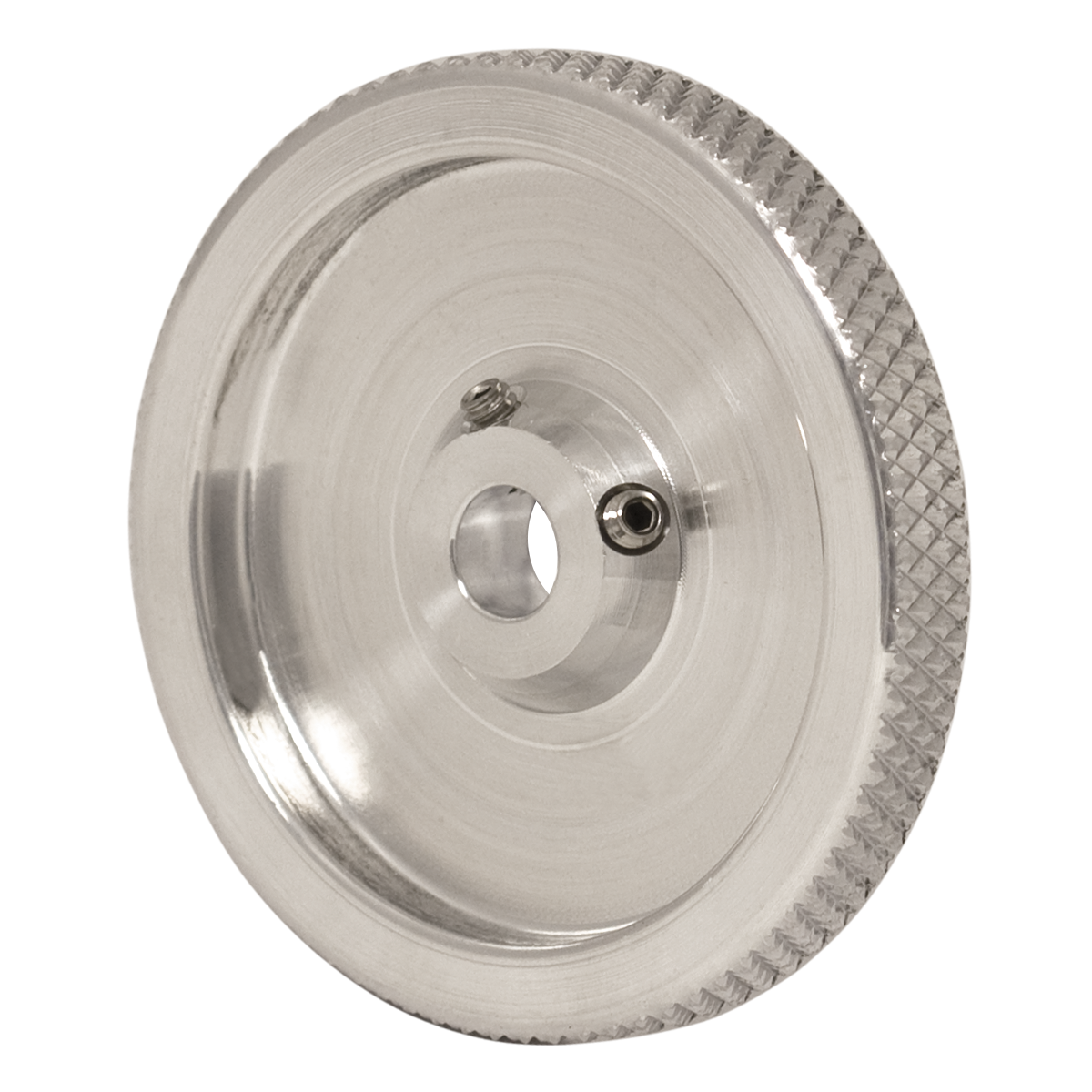

161401 6" Standard knurled 1/4" 0.25" Shop online
161370 6" Standard knurled 1/4" 0.40" Shop online
161376 6" Standard knurled 3/8" 0.40" Shop online

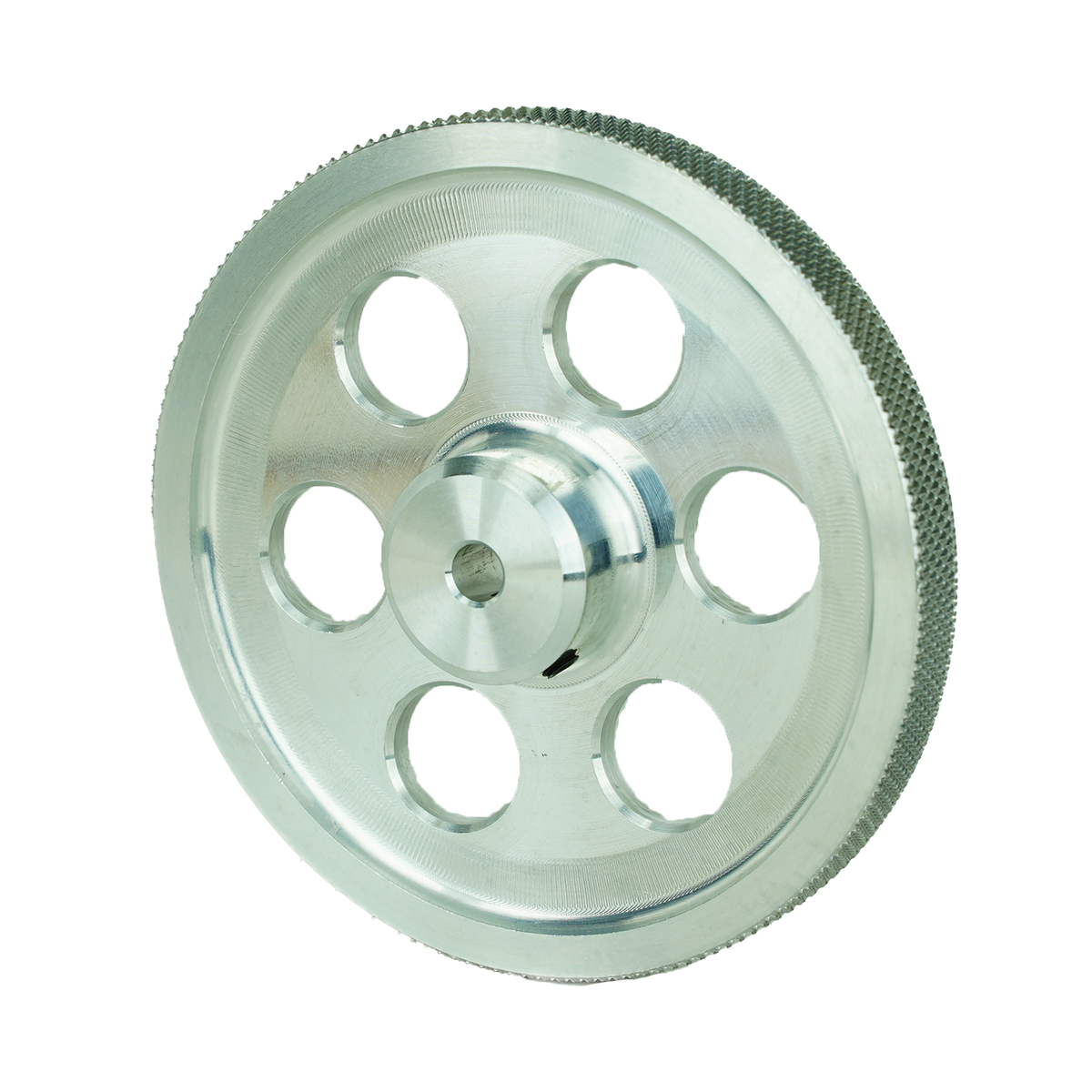

161362 12" Standard knurled 1/4" 0.40" Shop online
161379 12" Standard knurled 3/8" 0.40" Shop online
161332 12" Standard knurled 1/4" 1" Shop online

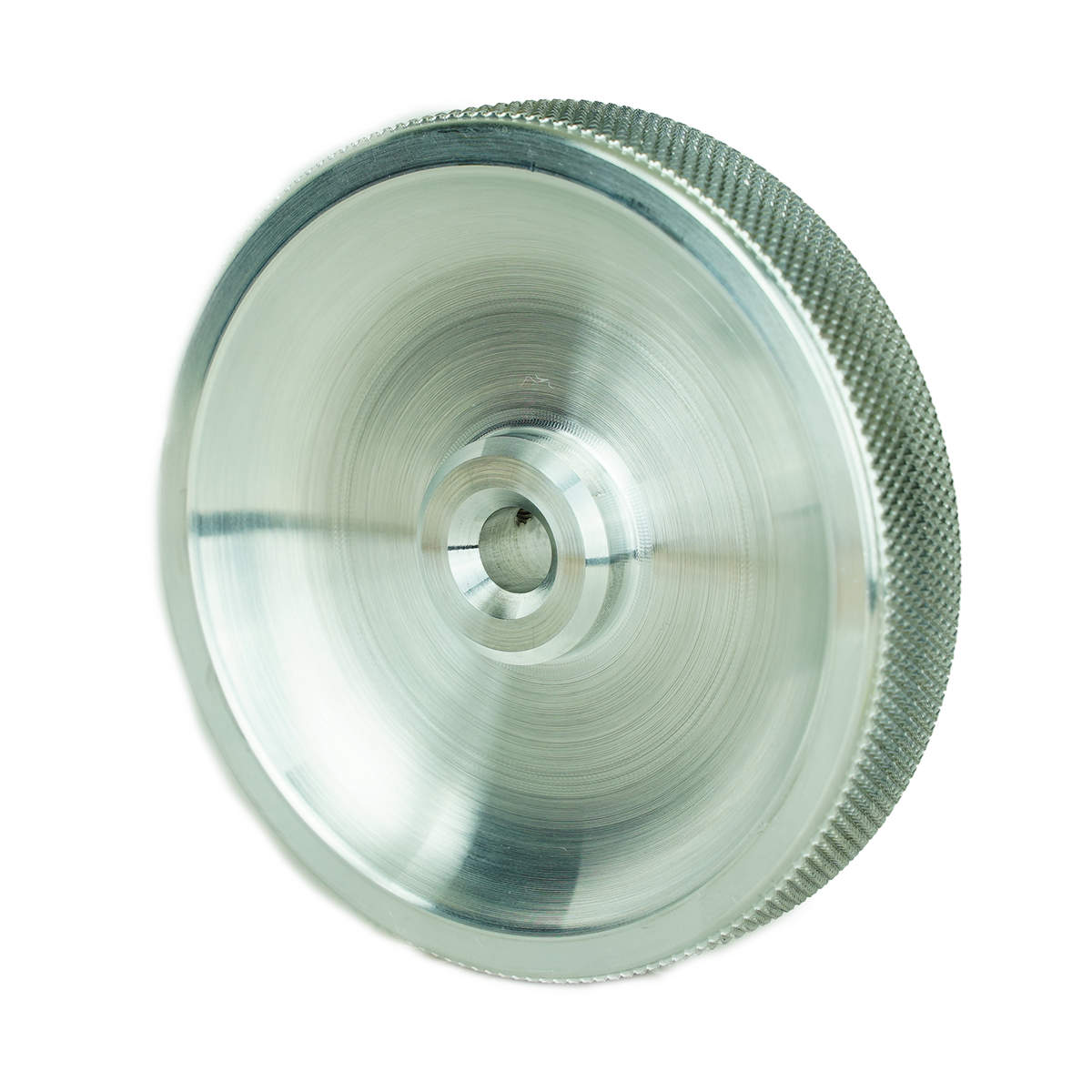

161432 12" Standard knurled 3/8" 0.75" Shop online
161333 12" Standard knurled 3/8" 1" Shop online
161443 300 mm Standard knurled 3/8" 0.75" Shop online
161361 1/3 meter Standard knurled 1/4" 10 mm Shop online
161380 1/3 meter Standard knurled 3/8" 10 mm Shop online

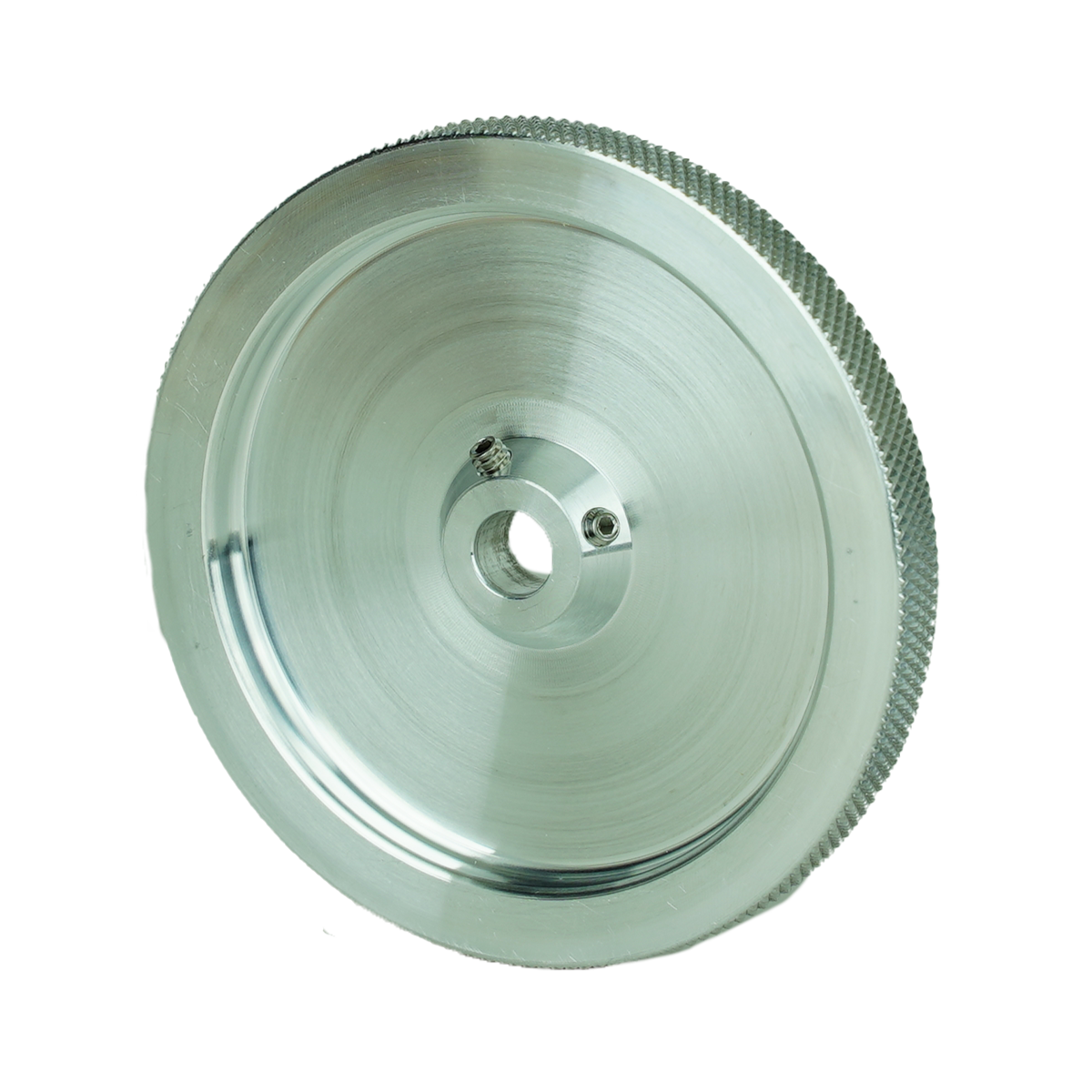

161400 200 mm Standard knurled 1/4" 0.25" Shop online

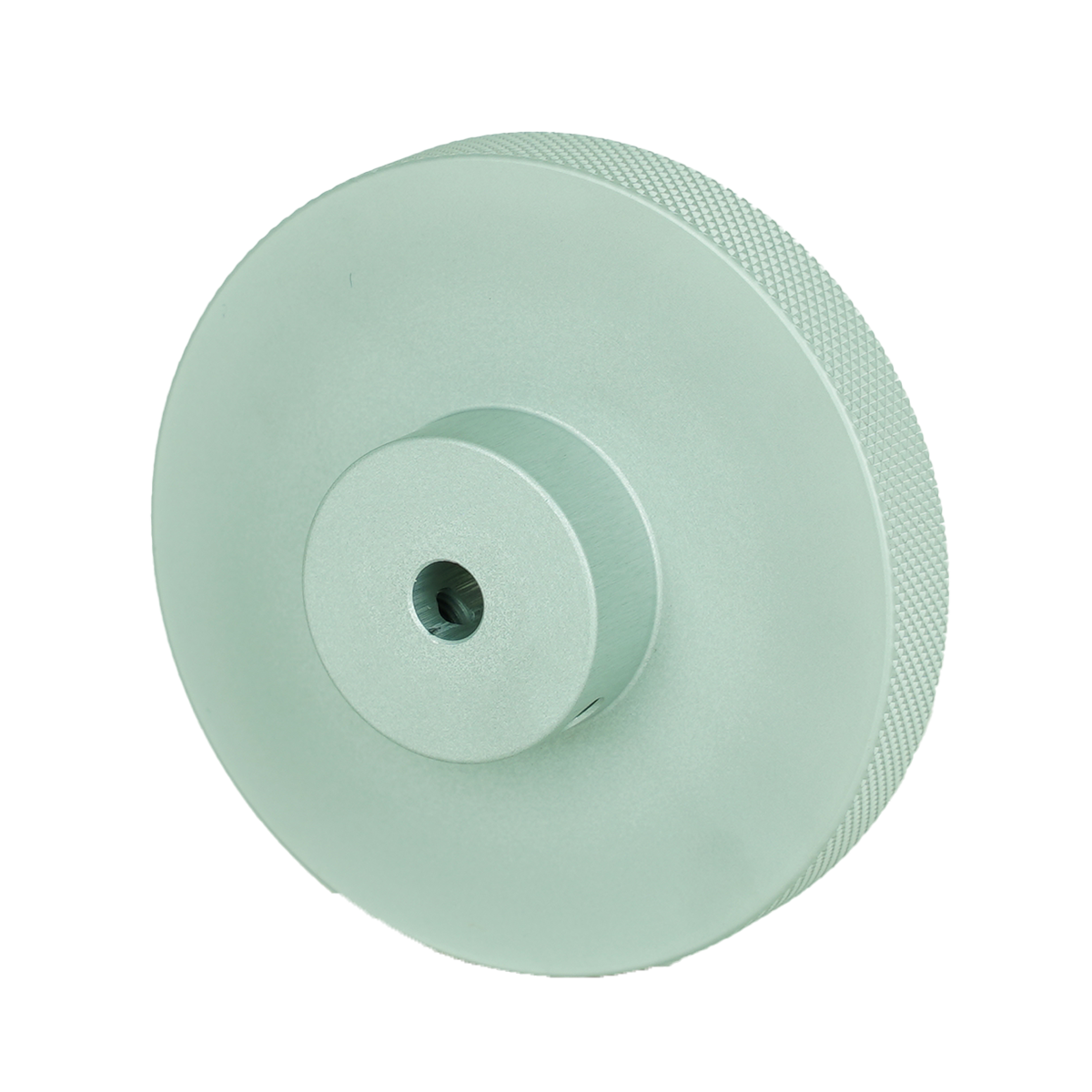

161371 200 mm Standard knurled 1/4" 10 mm Shop online
161375 200 mm Standard knurled 3/8" 10 mm Shop online

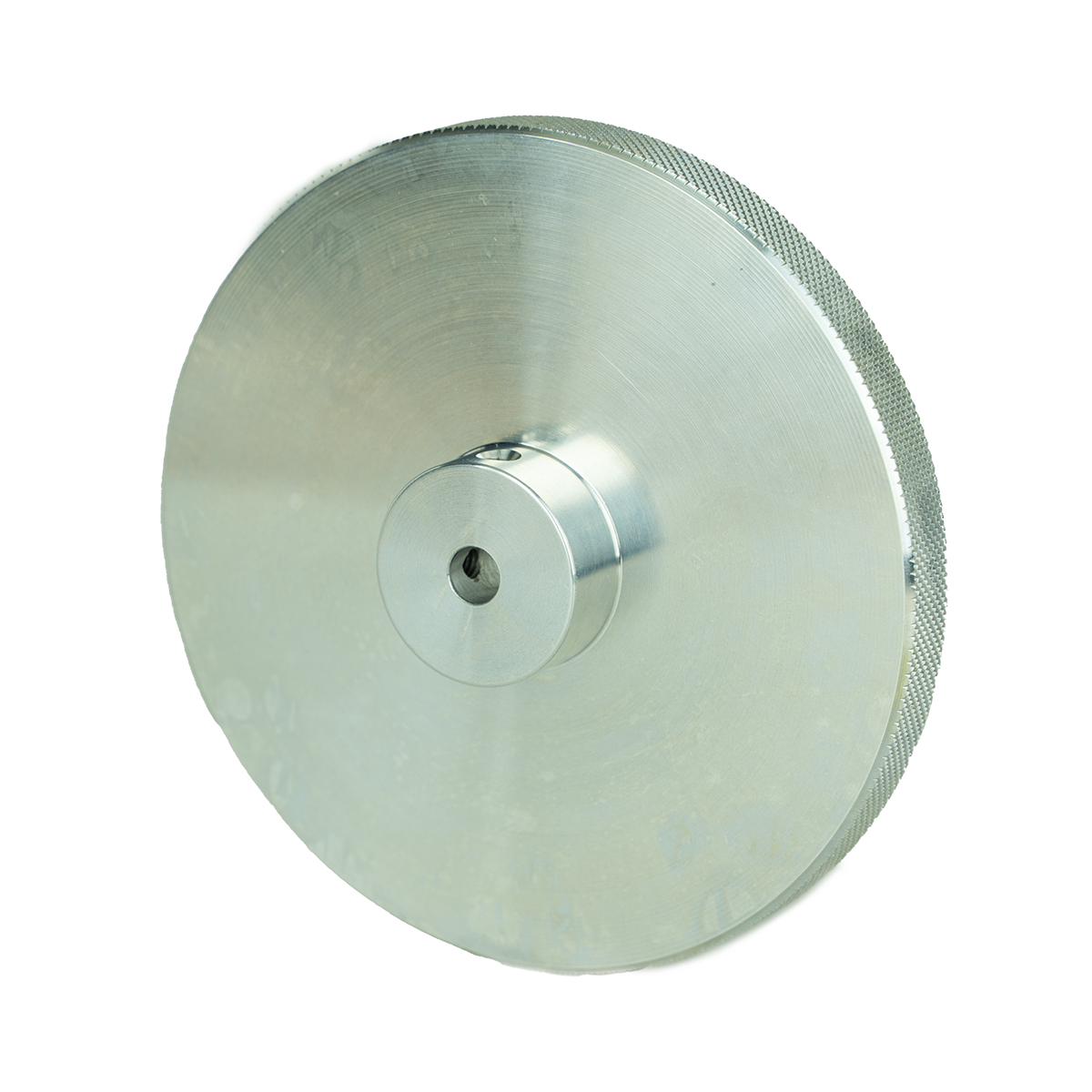

161372 300 mm Standard knurled 1/4" 10 mm Shop online
161377 300 mm Standard knurled 3/8" 10 mm Shop online

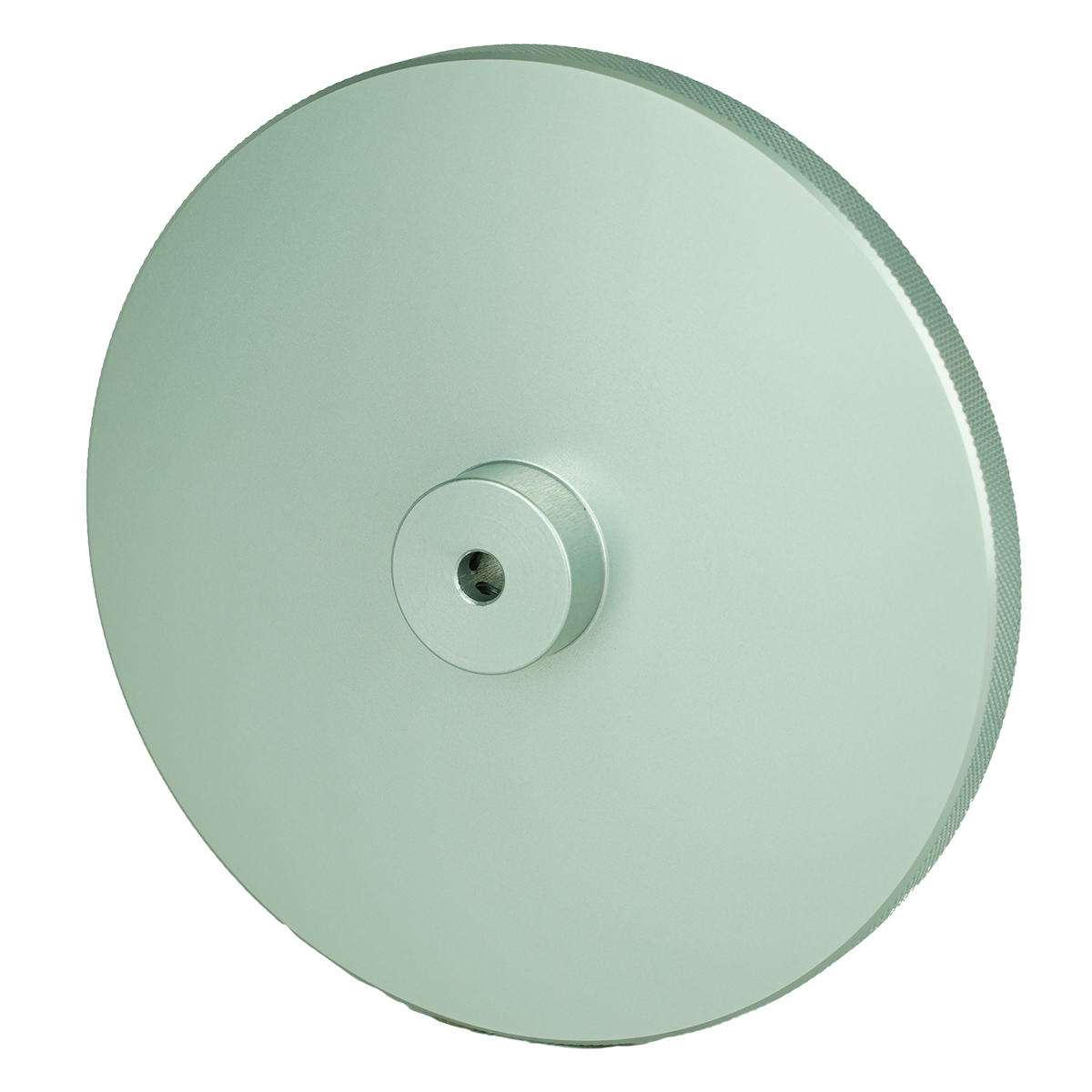

161373 400 mm Standard knurled 1/4" 10 mm Shop online
161378 400 mm Standard knurled 3/8" 10 mm Shop online

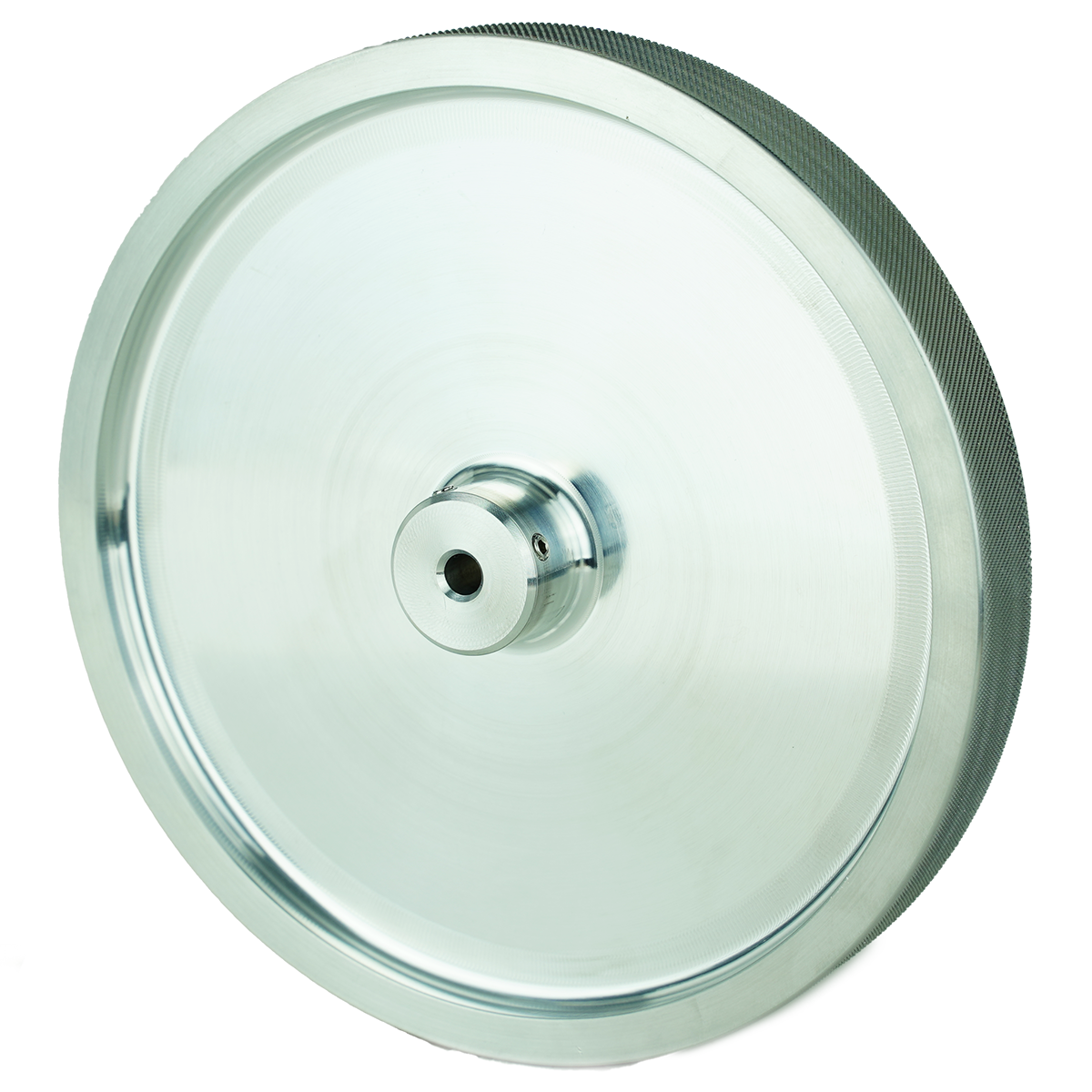

161374 500 mm Standard knurled 1/4" 20 mm Shop online
161381 500 mm Standard knurled 3/8" 20 mm Shop online

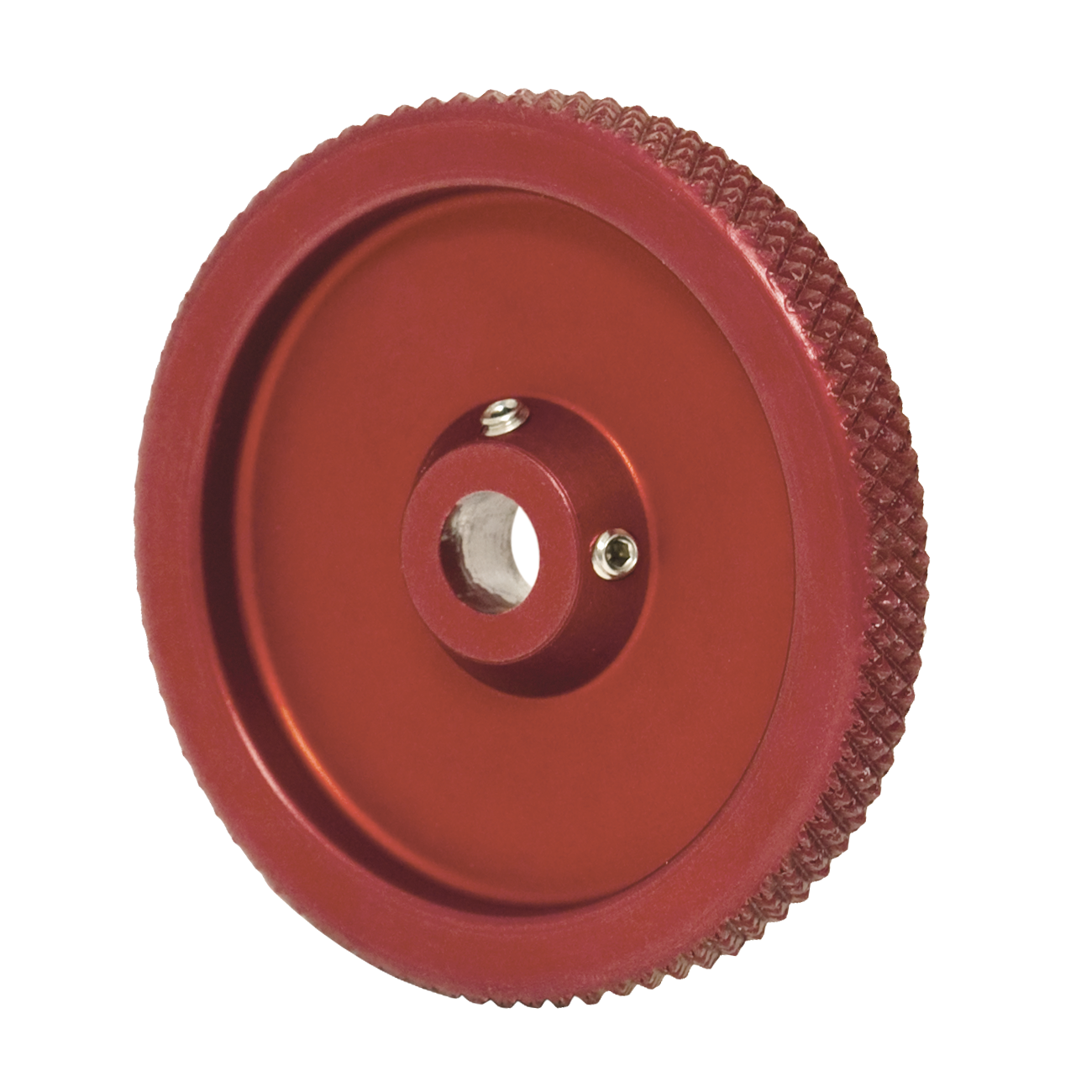

161423 6" Hard anodized knurled 1/4" 0.25" Shop online

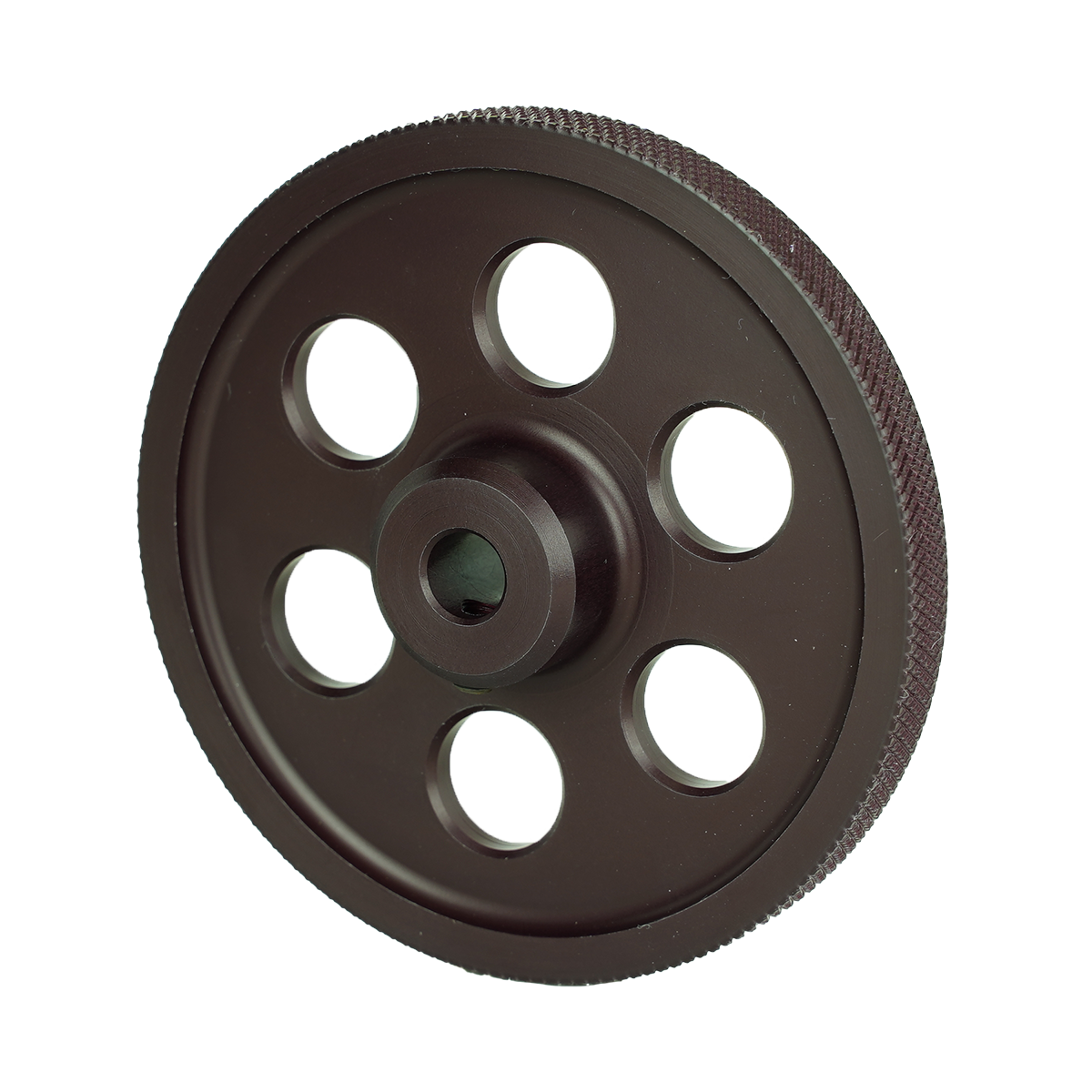

161419 12" Hard anodized knurled 3/8" 0.40" Shop online

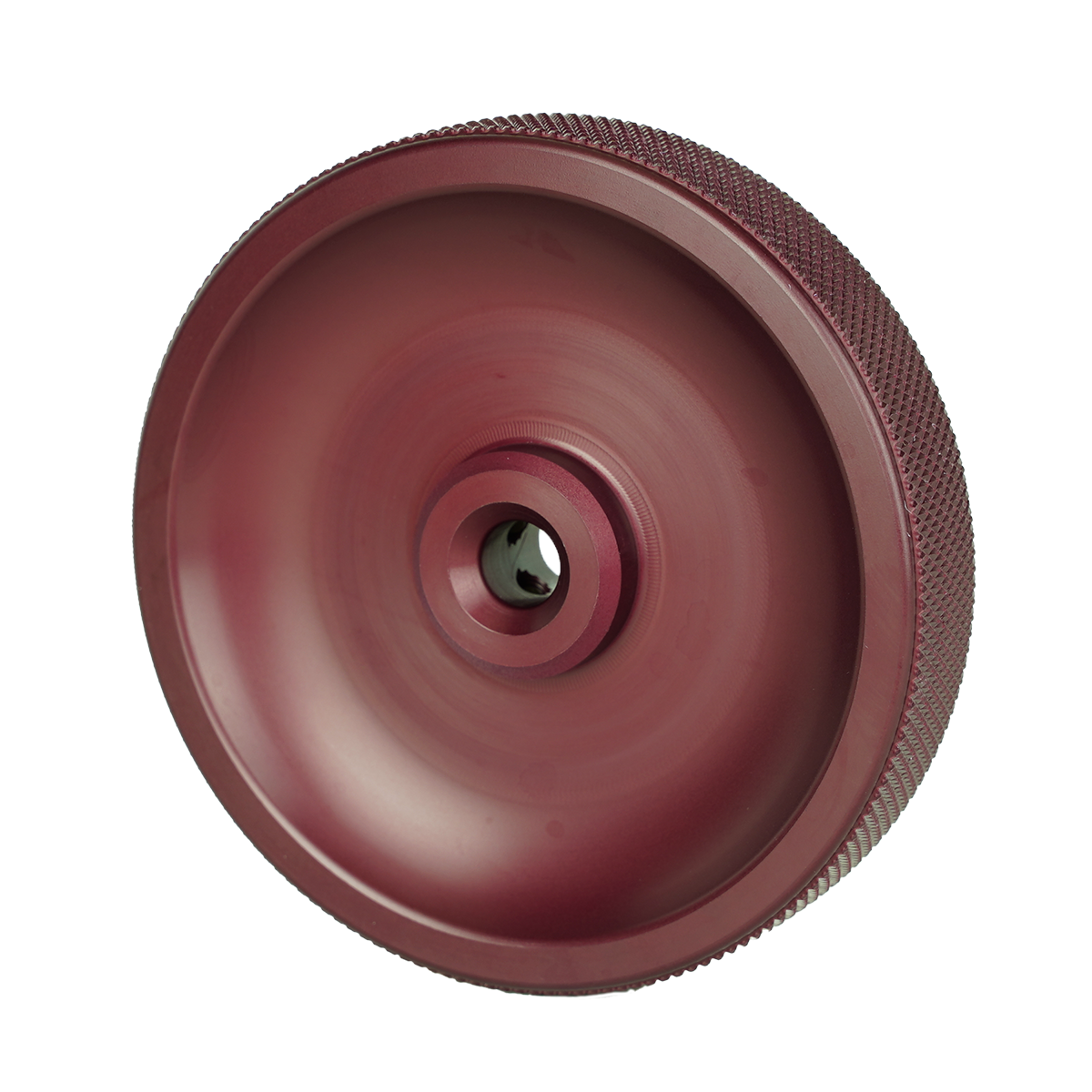

161436 12" Hard anodized knurled 3/8" 0.75" Shop online

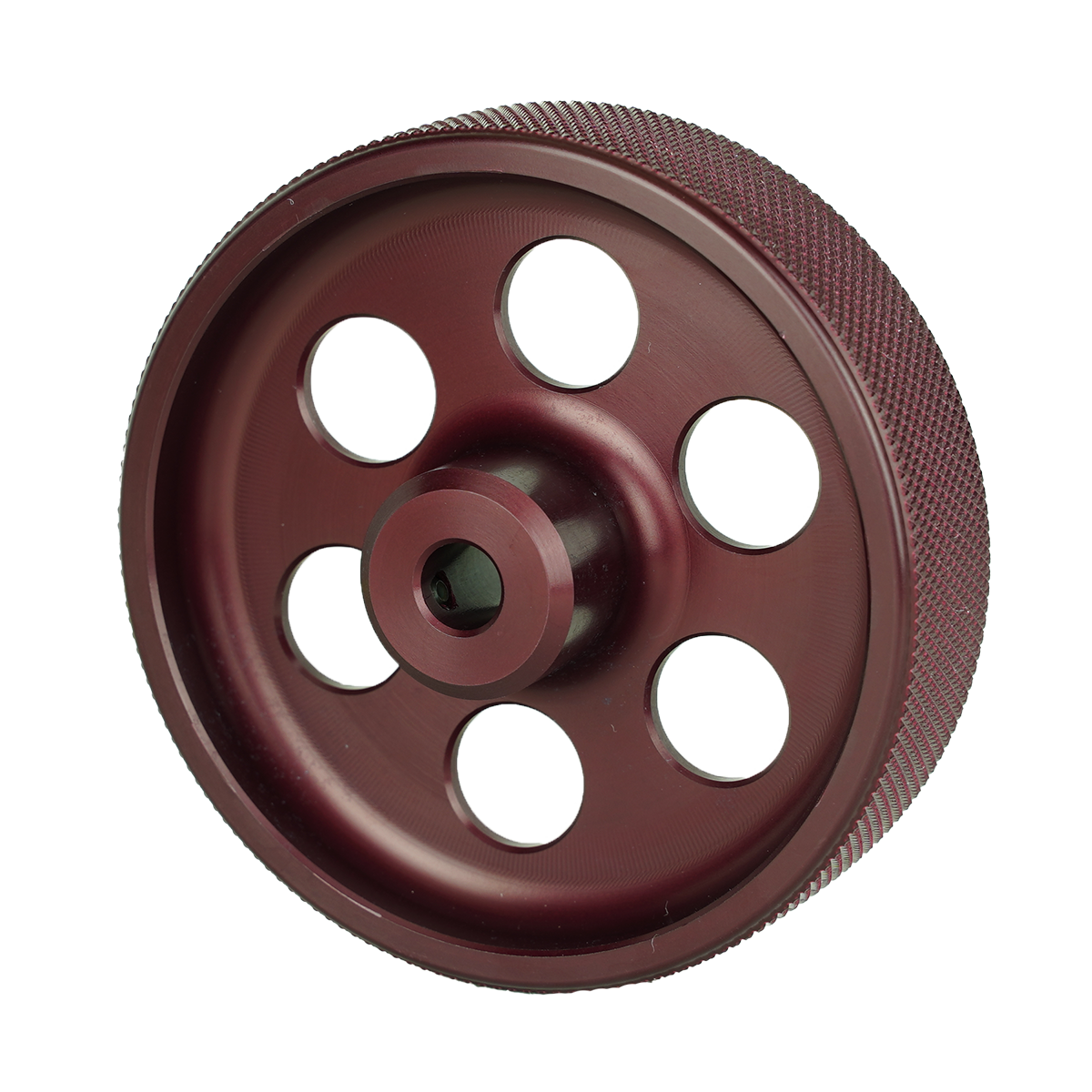

161420 12" Hard anodized knurled 3/8" 1" Shop online

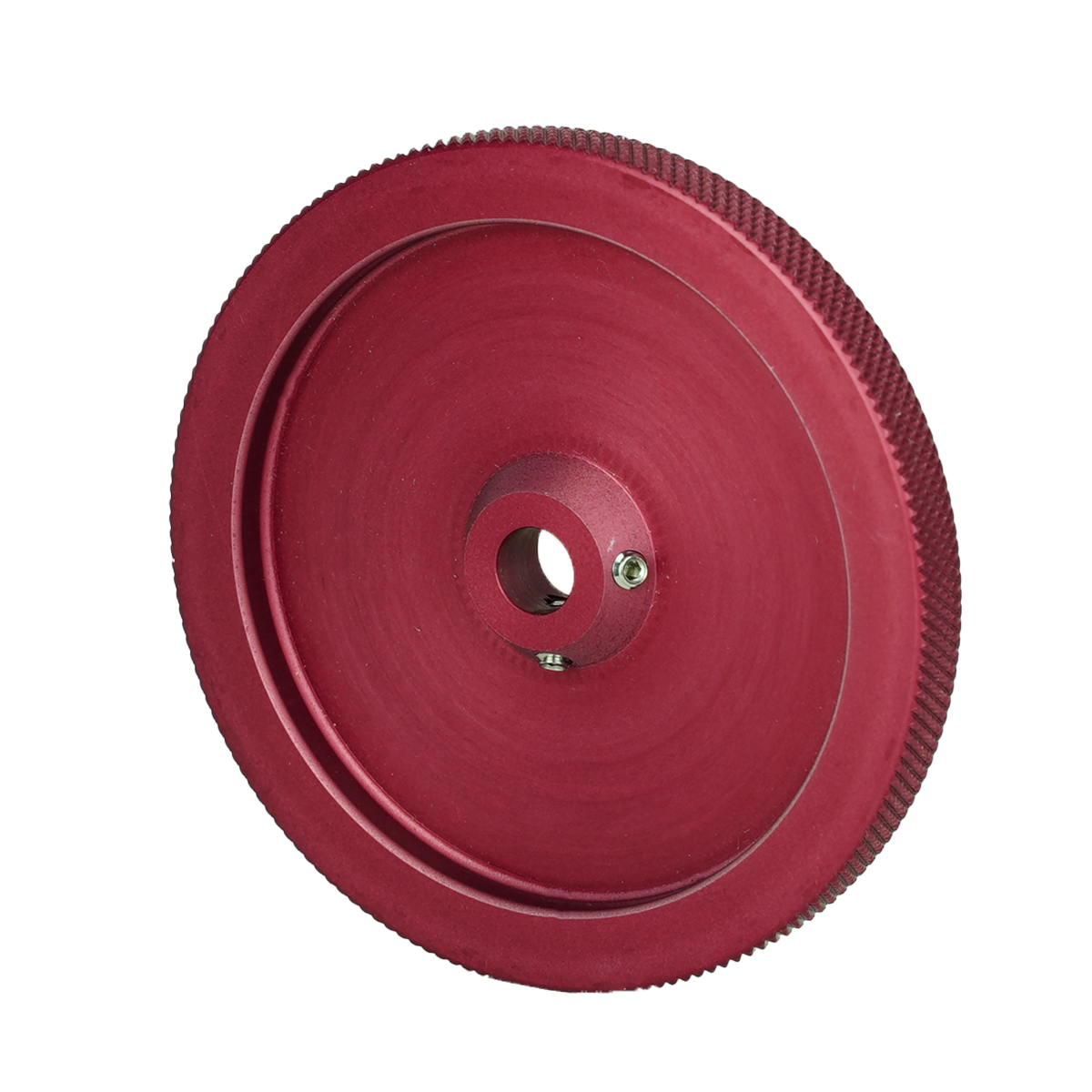

161424 200 mm Hard anodized knurled 1/4" 1/4" Shop online

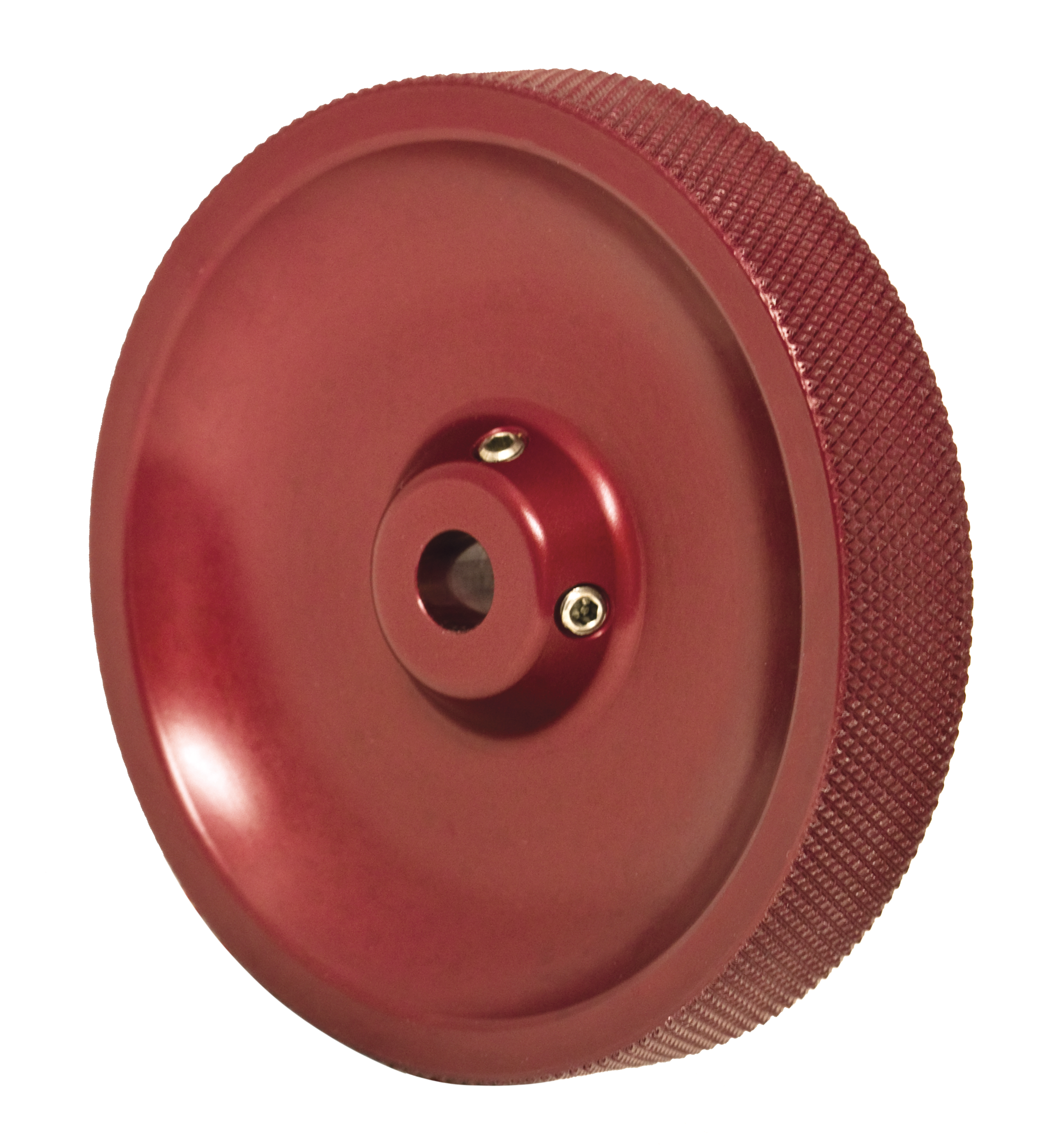

161438 300 mm Hard anodized knurled 3/8" 0.75" Shop online

arrow-alt-circle-right-regularCustomer Service


Questions? Give us a call at (800) 366-5412 or submit this form, and we'll contact you within one business day.

Standard lead time is 4 - 6 days on most models. Expedite options are available on many models. Contact us for details.
