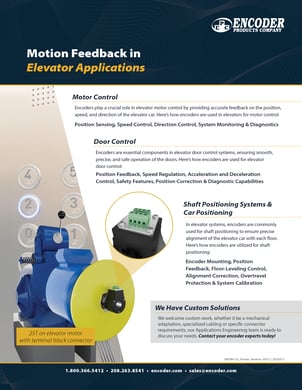

Elevator Encoders

Explore the Precision of Encoders For:

• 1. Motor Control

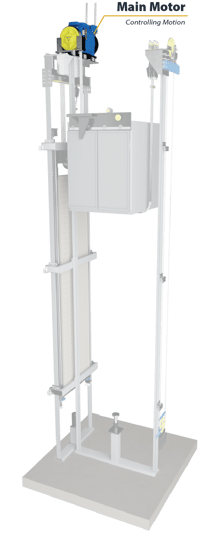

  Encoders play a crucial role in elevator motor control by providing accurate feedback on the position, speed, and direction of the elevator car. Here's how encoders are used in elevators for motor control:

  • Position Sensing: Encoders are installed on the elevator motor or drive system to accurately determine the position of the elevator car within the shaft. This information is essential for precise floor leveling, ensuring that the car stops at the correct position for passengers to enter and exit safely.



  • Speed Control: Encoders monitor the rotational speed of the elevator motor shaft, allowing the control system to adjust the motor's speed accordingly. By maintaining consistent speed feedback throughout the journey, encoders ensure smooth acceleration, deceleration, and travel between floors, providing passengers with a comfortable ride experience.


  • Direction Control: Encoders provide feedback on the direction of rotation of the elevator motor shaft, enabling the control system to determine whether the elevator is moving up or down. This information is vital for controlling the motor's direction and ensuring the elevator travels to the desired floor safely and efficiently.



  • System Monitoring and Diagnostics: The control system uses the encoder's continuous real-time data to monitor the performance of the elevator motor and drive system.  This information allows for proactive maintenance and troubleshooting, helping to identify and address issues before they escalate, thereby minimizing downtime and optimizing system reliability.






• 2. Door Control

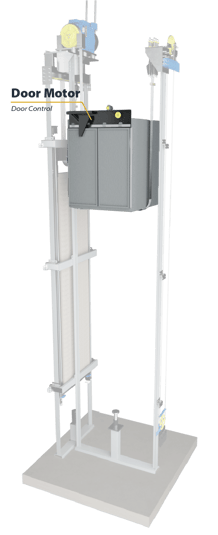

  Encoders are essential components in elevator door control systems, ensuring smooth, precise, and safe operation of the doors. Here's how encoders are used for elevator door control:



  • Position Feedback: Encoders provide accurate feedback on the position of the elevator doors, allowing the control system to determine their exact opening and closing positions. This feedback ensures that the doors operate within the designated range, preventing collisions with passengers or objects.


  • Speed Regulation: Encoders monitor the speed of the elevator door operation, allowing the control system to regulate the door's opening and closing speed. By controlling the speed, encoders ensure that the doors operate smoothly and efficiently, minimizing the risk of sudden movements or jolts.


  • Acceleration and Deceleration Control: Similar to speed regulation, encoders help control the acceleration and deceleration of the elevator doors. This ensures that the doors start and stop gradually, providing a comfortable experience for passengers and reducing wear and tear on the door mechanism.


  • Safety Features: Encoders contribute to various safety features in elevator door control systems. For example, they can detect obstructions or resistance in the door's path and trigger the doors to stop or reverse direction to prevent accidents. Encoders also ensure that the doors remain securely closed during elevator movement, enhancing passenger safety.


  • Position Correction: In the event of misalignment or uneven closing of the elevator doors, encoders provide feedback to the control system, enabling it to make rapid adjustments to ensure proper door alignment. This helps prevent issues such as door jams or gaps, maintaining a secure barrier between the elevator shaft and the passengers.


  • Diagnostic Capabilities: Encoders provide real-time data on the performance of the elevator door system, allowing for proactive maintenance and troubleshooting. By monitoring door position, speed, and operation, encoders help identify and address issues before they escalate, minimizing downtime and optimizing system reliability.

• 3. Shaft Positioning Systems and Car Positioning

  In elevator systems, encoders are commonly used for shaft positioning to ensure precise alignment of the elevator car with each floor. Here's how encoders are utilized for shaft positioning:

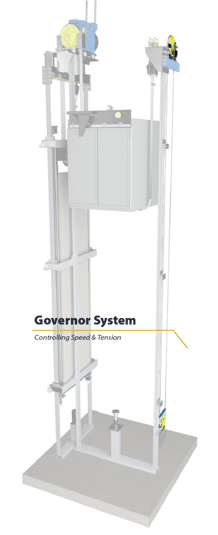

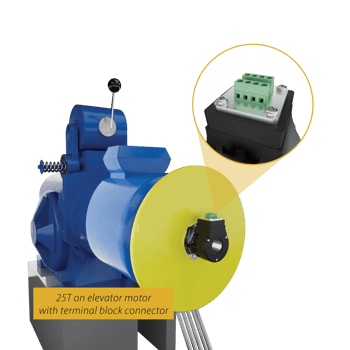

  • Encoder Mounting: Encoders are typically installed on the elevator motor or drive system to measure the rotation of the motor shaft. Alternatively, they can be mounted directly on the elevator car to measure its movement within the shaft.


  • Position Feedback: Encoders provide continuous feedback on the rotational position of the elevator motor shaft or the linear position of the elevator car within the shaft. This feedback is crucial for accurately determining the elevator's location relative to each floor.


  • Floor-Leveling Control: When the elevator approaches a floor, the control system uses the encoder feedback to precisely control the motor's speed and direction, ensuring that the elevator car stops at the correct floor level. This floor-leveling control minimizes the gap between the elevator car and the floor, allowing for smooth and safe passenger entry and exit.


  • Alignment Correction: Encoders help correct any misalignment between the elevator car and the floor by providing real-time feedback to the control system. If the encoder feedback does not agree with other data sensors, the control system detects a deviation from the desired position and can make rapid adjustments to ensure that the elevator car aligns perfectly with the floor before the doors open.


  • Overtravel Protection: Encoders can also be used to prevent overtravel of the elevator car beyond the designated floors. By continuously monitoring the elevator's position, encoders enable the control system to activate safety mechanisms, such as emergency brakes, if the elevator approaches or exceeds the limits of its travel range.


  • System Calibration: During installation and maintenance, encoders are essential for calibrating the elevator's position and ensuring accurate floor-leveling control. By comparing the encoder feedback with known reference points, technicians can adjust the elevator's parameters to optimize its performance and reliability.
