Versatile Linear Measurement for Compact Industrial Applications

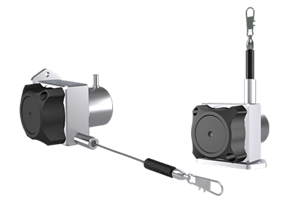

The ACX50 is a compact draw wire sensor designed for precise linear position measurement in industrial machinery and automation applications. With measurement ranges from 50 to 1,250 mm, the ACX50 provides reliable position feedback where space is limited and measurement performance matters.

Choose from potentiometer, voltage, current, or absolute CANopen output options to match your control system requirements. High dynamic performance, flexible mounting options, and protection up to IP67 make the ACX50 a versatile solution for a wide range of industrial applications.

Request a Quote

Learn More About Draw Wire Sensors

Download ACX50 Draw Wire Datasheet

ACX50 Draw Wire Features:

Measurement ranges from 50 to 1,250 mm

Analog output: potentiometer, voltage, current

Linearity up to ±0.02% of full scale

Protection class up to IP67

High dynamics and interference immunity factor

Temperature range -20 to +85°C (optional -40°C or +120°C)

Flexible Feedback for Short Range Measurement

The ACX50 combines a compact draw wire mechanism with integrated position measurement technology to deliver continuous linear feedback without requiring a separate rotary encoder.

With multiple analog output options and CANopen communication, the ACX50 can accommodate different control system requirements. Optional teachable voltage outputs provide additional flexibility for adapting the measurement range and establishing a switching point.

Its compact construction and flexible mounting options make the ACX50 well suited for machinery where installation space is limited but reliable position measurement is essential.
