ACH60 Accu-Draw™ Analog Draw Wire Sensor

  Download ACH60 Draw Wire Datasheet

ACH60 Draw Wire Features:

   Three housing variations for different environments

    Cost-effective sensor for construction machinery and mobile hydraulics

    Measurement ranges from 1 to 4 meters

    Protection class up to IP69K (suitable for steam and high pressure cleaning)

    Output signals: potentiometer, current, voltage or CANopen, optional redundant output

    Temperature range -20 to +85°C (optional -40°C)

Built for Demanding Environments

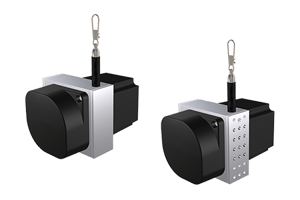

The ACH60 is available with multiple housing configurations to match the conditions around your application.  An open housing is suited for fine dust and fluids; a perforated housing helps protect against larger dirt and particles; and a closed housing is designed for conditions involving adhesive dust, cement, concrete, clay, impact and shock.
