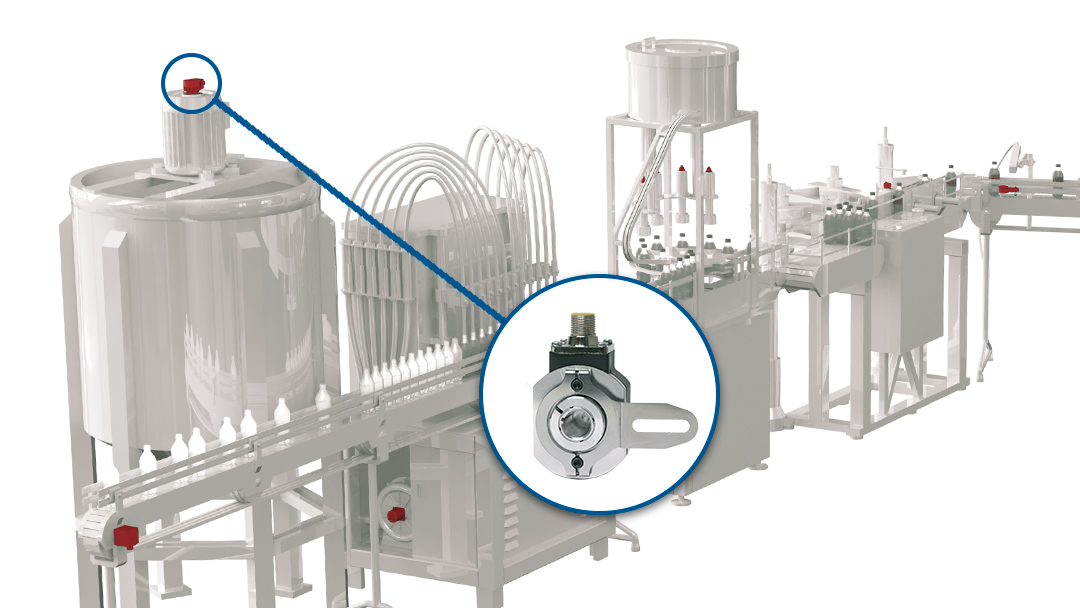

What Is an Optical Encoder?260_mixing-station-on-packaging-line_1080x608



An optical encoder is a type of motion sensing device that uses light shone through a coded disk to track the movement of a shaft. The encoder provides feedback based on the interruption of light.

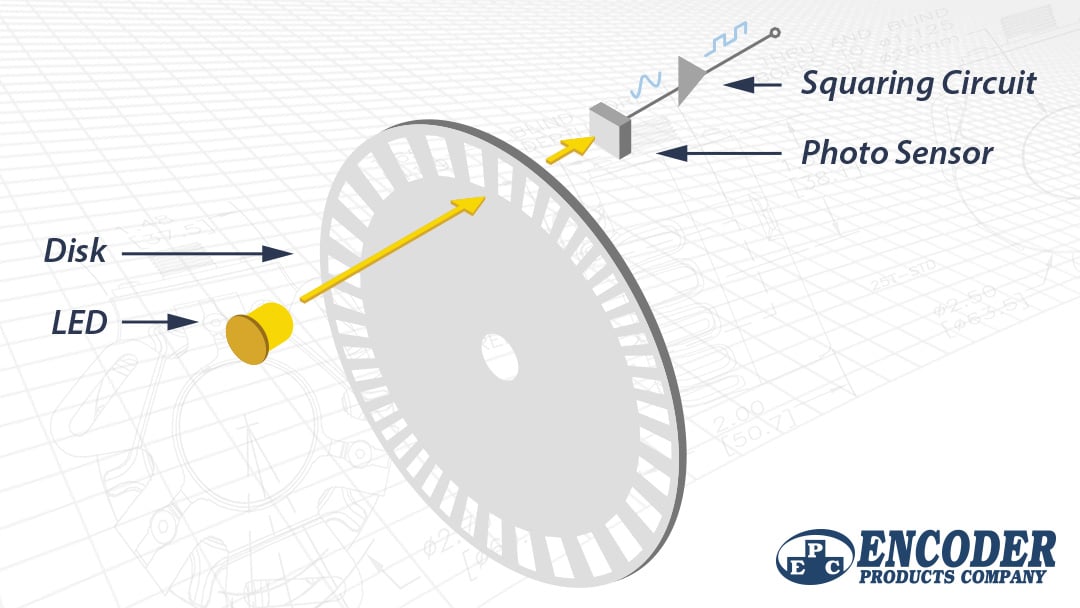

The graphic below outlines the basic construction of an optical incremental rotary encoder.


Broken down in steps, this is how an optical encoder provides motion feedback information:

  1. A beam of light emitted from an LED passes through a Code Disk, a transparent disk patterned with opaque lines (much like the spokes on a bike wheel).
  2. The light beam is picked up by a Photodetector Assembly, also called a photodiode array or a photosensor.
  3. The Photodetector Assembly responds to the light beam, producing a sinusoidal wave form, which is transformed into a square wave or pulse train.
  4. This pulse signal is simple:
    light = on
    no light = off
  5. The pulse signal is then sent to the counter or controller through the Electronics Board.
  6. The counter or controller (not pictured) then sends the signal to produce the proper function (stop, go, rotate, etc.).
