The NEW Model LCX Draw Wire Solution

Fast & easy encoder mounting  |  Wire length options from 1 to 42.5 meters

November 16, 2020

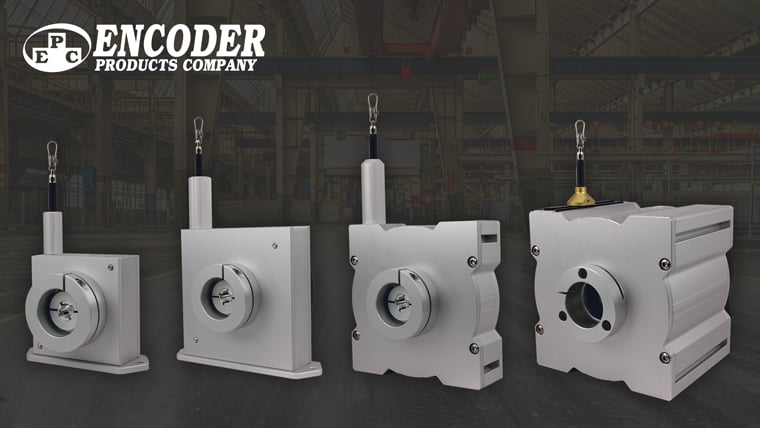

lcx-draw-wire_four-models_760x428





Encoder Products Company’s new LCX Series draw wire units work with EPC encoders to accurately measure position and provide motion feedback in motion control applications. The LCX Series of draw wire solutions is manufactured for EPC by our German technology partner and offers wire lengths from 1 to 42.5 meters in length.

“The maintenance-free draw wires are particularly quick and easy to install,” says Dave Wilson, National Sales Manager for EPC. “Draw wires are used for motion feedback because of their reliability. Coupled with an EPC encoder, the highly-flexible steel wire of the LCX is an excellent choice for motion control in robotics, extrusion presses, textile machinery, control gate positioning, theater stages, elevators, gantries, boom cranes, forklift booms, and motion control applications across all industries.”

Three housing sizes

The LCX is available in 3 housing sizes:

  • The LCX80 comes in an 80 mm casing and offers 1, 2 and 3 meter wire length options
  • The LCX120 comes in a 120 mm casing and offers 4 or 5 meter wire length option
  • The LCX135 comes in a 135 mm casing and offers wire lengths from 6 m to 42.5 meters

model-lcx_trio-80-120-135_550x366

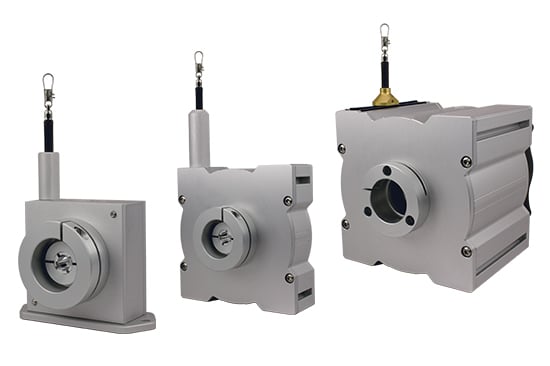

From left to right: Model LCX80, LCX120, and LCS135

Four encoder options

The LCX Series draw wire units work with encoders that have a clamping flange that is 36 mm in diameter, and a shaft that is 10 mm in diameter and 20 mm in length. Installation is quick and simple with these EPC encoders.

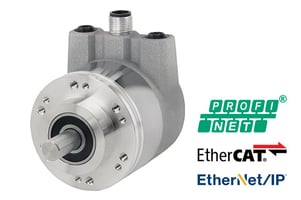

Model A58SE

An absolute encoder with EtherCAT® and PROFINET® communication protocols.

Model A58SE product page

card_a58se_profinet-ethercat_760x507

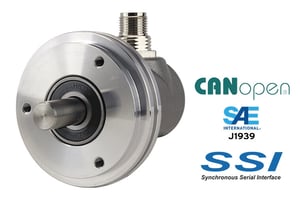

Model A58SB

An absolute encoder with CANopen® and SSI communication protocols.

Model A58SB product page

card_a58sb_mh_canopen-ssi_760x507

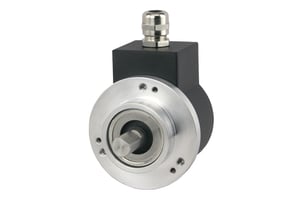

Model 758

A high-performance incremental encoder.

Model 758 product page

card_758-a_550x367

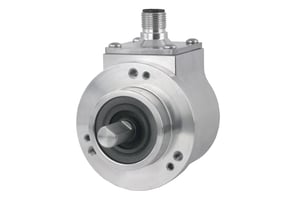

Model 858S

A stainless steel incremental encoder.

Model 858S product page

card_858-main-m12_550x367

Get more information

Choose the right encoder and wire length for your application.

Not sure which linear measurement solution is right for your application? Give us a call. When you call EPC, you talk to real engineers and encoder experts who can help you specify the right encoder solution for your application. Contact EPC today. We'll help you find your linear measurement solution.

Watch

Visit the Model LCX product page for technical information, or watch the product demo:
