Using the Model 30M Encoder for Versatile Industrial Applications

CS 30M for versatile industrial applications



Introduction

The Model 30M encoder stands out as a robust, versatile solution across a range of industries. Its advanced design, which includes non-contact magnetic sensing, IP69K-rated sealing, and a bearing-less configuration, positions it as a reliable choice for demanding environments where competitors’ encoders often fail. This case study explores key applications of the Model 30M across various sectors, showcasing its versatility, durability, and value.

Product Specifics

The Model 30M is a compact, incremental encoder module with advanced magnetic sensing and signal processing technology. Featuring resolutions from 1 to 1024 CPR, commutation channels, several output types, and two supply voltage options, it can be configured for a wide range of industrial, commercial, and consumer feedback applications. With a non-contact magnetic sensor and optional sealing up to IP69K, the Model 30M can be applied in environments where dirt, dust, and liquids are present.

Applications Across Industries

1. APPLE PROCESSING
Challenge: An OEM manufacturing a bin-tipping system for apple sorting required a feedback encoder that could withstand water exposure and rigorous cleaning cycles.
Solution: The Model 30M was applied to the tilt axis, offering precise tilt position feedback with its optional IP69K-rated design. Its polymer housing and potted electronics ensured resistance to water and chemicals used in sanitation, making it ideal for food handling equipment.

2. HIGH-SPEED PUMP FEEDBACKScreen Shot 2025-02-24 at 2.49.46 PM
Challenge: A high-speed pump manufacturer needed a feedback device capable of operating at sustained speeds exceeding 10,000 RPM, while meeting a competitive price point for their consumer market.
Solution: The Model 30M’s non-contact sensing and bearing-less design supported high-speed operations without mechanical wear, ensuring reliability at high rotational speeds.

3. AUTOMATED CAR WASH EQUIPMENT
Challenge: Encoders in automated car wash systems faced failures due to exposure to pressurized water, cleaning chemicals, and environmental conditions.
Solution: The Model 30MT encoder, installed on a gear motor, delivered consistent performance with its IP69K-rated seal and robust magnetic sensing technology, making it impervious to water and chemical damage.

4. FOOD AND BEVERAGE CONVEYOR SYSTEMS
Challenge: A beverage manufacturer experienced repeated encoder failures due to washdown chemicals and pressurized sprays penetrating the shaft seals of competing encoders.
Solution: The Model 30MT was specified for a roller shaft, providing reliable speed feedback. Its superior sealing and durable construction eliminated failures and improved the reliability of a critical production process.

30m-8pin-molex-c

Model 30M Features

  • Compact 30 mm incremental magnetic encoder module
  • Large air gap and tolerance to misalignment
  • Resolutions from 1 to 1024 CPR (4096 PPR with quadrature counting)
  • Optional 2 to 32 pole commutation
  • Temperature range -40° to 120° C
  • Easy alignment and installation
  • Sealing to IP69K

download_blueDownload Model 30M datasheet

Configure Model

Configure a 3D model of this encoder with the exact specifications for your application. Then download the files in almost any native format, and design it in to your application.

Configure 3D Model

Key Benefits of the Model 30M Encoder

  • Durability: Optional IP69K-rated sealing, polymer housing, and potted electronics ensure resistance to water, chemicals, and pressurized cleaning.

  • Versatility: Suitable for a wide range of industries, including food processing, automotive, and high-speed machinery.

  • Cost-Effective: Offers high performance at a competitive price, making it accessible for industrial applications.

  • Ease of Integration: Simple installation process compatible with various systems and configurations.

Industries Leveraging the Model 30 Encoder

• Food and Beverage Manufacturing
• Automotive and Car Wash Systems
• Agriculture and Farming Equipment
• High-Speed Pumps and Rotational Machinery • Conveyor and Material Handling Systems
• Packaging and Automation

Conclusion

The Model 30M encoder’s ability to perform reliably under harsh conditions and its compatibility with diverse industrial applications make it a superior choice over competing solutions. From food processing to automotive systems, the Model 30M delivers consistent, high-quality feedback, minimizing downtime and maximizing efficiency for manufacturers worldwide. For more information or to explore how the Model 30M can elevate your operations, contact us today. https://www.encoder.com/model-30m

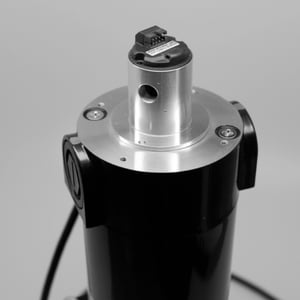

1

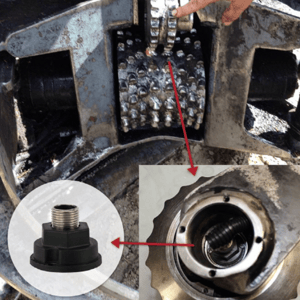

2-1

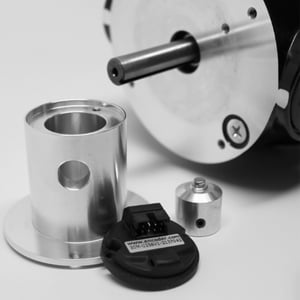

3-2



Why Choose Encoder Products Company?

  • All-in-One Solutions: We handle the engineering, design, and assembly to provide a complete, plug-and-play encoder system tailored to your application.

  • Time Savings: Our ready-to-use solutions free engineers from the hassle of piecing parts together, allowing them to focus on their core tasks.

  • Custom Designs: We specialize in creating encoders and hardware that meet exact specifications, ensuring your unique application requirements are fulfilled.

We spend the time to get it right.  When you need a motion feedback solution, Encoder Products Company is your partner for success.  Start your custom project today!  https://www.encoder.com/custom-engineering

Find Out More

Do you have a question about which encoder is right for your application? When you contact EPC, you talk to engineers and encoder experts who can answer your toughest encoder questions. You’ll get answers that make sense for your application.

With our industry-leading three-year warranty, if something does go wrong, we’ve got you covered.

Contact EPC to find the right encoder for your application.

Our 100,000 square foot manufacturing facility in Sagle, Idaho, is vertically integrated. Watch to learn more.
